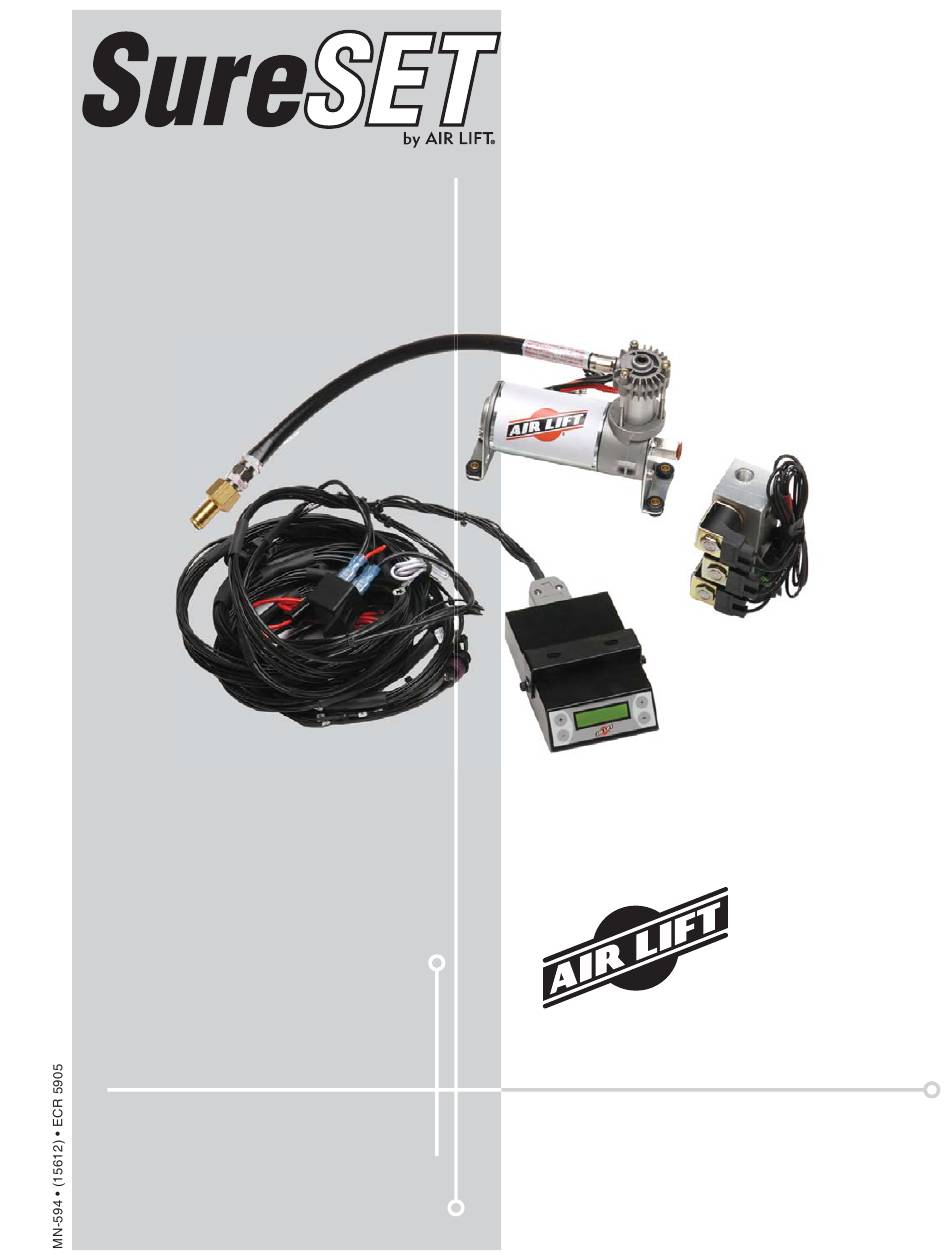

- Page 1 No. 25004 Automatic Leveling On-Board Compressor System INSTALLATION GUIDE For maximum effectiveness and safety, please read these instructions completely before proceeding with installation. Failure to read these instructions can result in an incorrect installation.
- Page 2 SureSet MN-594...
-
Page 3: Table Of Contents
SureSet TABLE OF CONTENTS Introduction ........2 System Information . -
Page 4: Introduction
Air Lift Company reserves the right to make changes and improvements to its products and publications at any time. Contact Air Lift Company at (800) 248-0892 for the latest version of this manual. -
Page 5: Installation Diagram
SureSet Installation Diagram fi g. 1 – – MN-594... -
Page 6: Hardware List
SureSet HARDWARE LIST Item Part # Description......Qty Item Part # Description......Qty 16092 Compressor........1 17318 Machine screw ......1 26830 150 PSI manifold ......1 18545 Lock washer ......... 1 26455 Harness ........1 21838 Tee ..........2 21839 1/8” X 1/4” 90° Connector .... 2 20035 Grommet........3.5”... -
Page 7: Installing The Electrical Components
SureSet Compressor Centerpunch and drill four Attach using four Fasten using ¼” diameter holes, using supplied screws. four supplied the compressor feet as a nuts. template. Manifold Centerpunch and drill two Attach using two 3/16” diameter holes using supplied lock the manifold as a template. - Page 8 SureSet Keyed power To battery Back view fi g. 4 6. Route to the vehicle fuse box (fi g. 5). Use test light to determine which open terminal (accessory, etc.) works only when the key is in the “ON” or accessory position (or, refer to the owners’s manual for an available accessory fuse).
-
Page 9: Attaching The Air Lines
SureSet 9. Attach a ground terminal to the small white wire coming out of the back of the ECU/Display Connector (Fig. 8). Ground fi g. 8 ECU/display connector ECU/display ATTACHING THE AIR LINES 1. Insert two 1/8” x 1/4” air fi ttings into the two open ports at the top of the manifold (fi g. 2. -
Page 10: Attaching The Digital Controller
SureSet 6. Cut a length of air line to go between the compressor and the manifold. Remove the nut from the fi tting on the end of the compressor leader hose and slide it over the air line. Attach the air line to the compression fi tting and tighten nut, locking the air line to the compressor. -
Page 11: Setting The Digital Controller
SureSet SETTING THE DIGITAL CONTROLLER When the system is started, the pressure will automatically set at the minimum pressure of NOTE 5 p.s.i. The system will not allow you to set your pressure below this point. 1. Press the plus or minus button on the controller to add or exhaust air from the air bags (fi... -
Page 12: Troubleshooting Guide
Warranty and Returns Policy Air Lift Company warrants its products for the time periods listed on the next page, to the original retail purchaser against manufacturing defects used on catalog listed applications on cars, vans, light trucks and motorhomes under normal operating conditions for as long as Air Lift manufactures the product. -
Page 13: Replacement Information
SlamAir ......2 Year Limited RoadTamer Systems..2 Year Limited *The purchase of an Air Lift Load Controller II, SmartAir Automatic Leveling System or SureSet Load Controller System with a SuperDuty, RideControl, or Air Lift 1000 extends the air springs’ warranty from two years to a Limited Lifetime Warranty to the original purchaser of the covered systems. - Page 15 THIS PAGE INTENTIONALLY LEFT BLANK...
