- Page 1 MN-202 (08104) ECN3471 P/N 25802 (Four Point Leveling Option) www.airliftcompany.com Please read these instructions completely before proceeding with the installation. Figure 1 Technical Support 1-800-248-0892 Ext. 2...

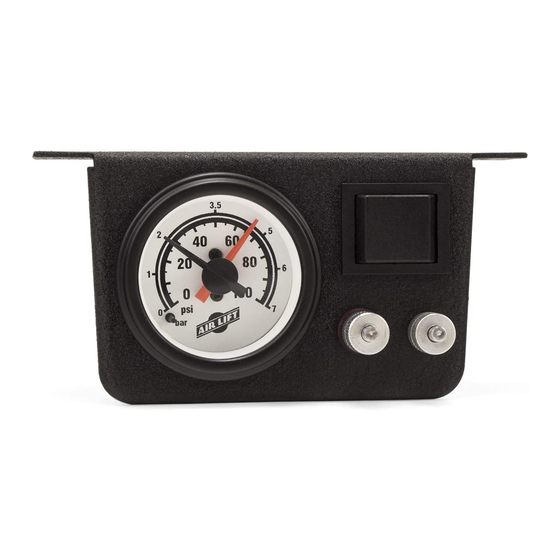

- Page 2 I. Mounting the Gauge Panel NOTE: All preassembled gauge panels have been 100% leak and function tested. Do not attempt to tighten, loosen or adjust any fittings or connections. This will likely cause a leak or malfunction and void the warranty. To Panel 1.

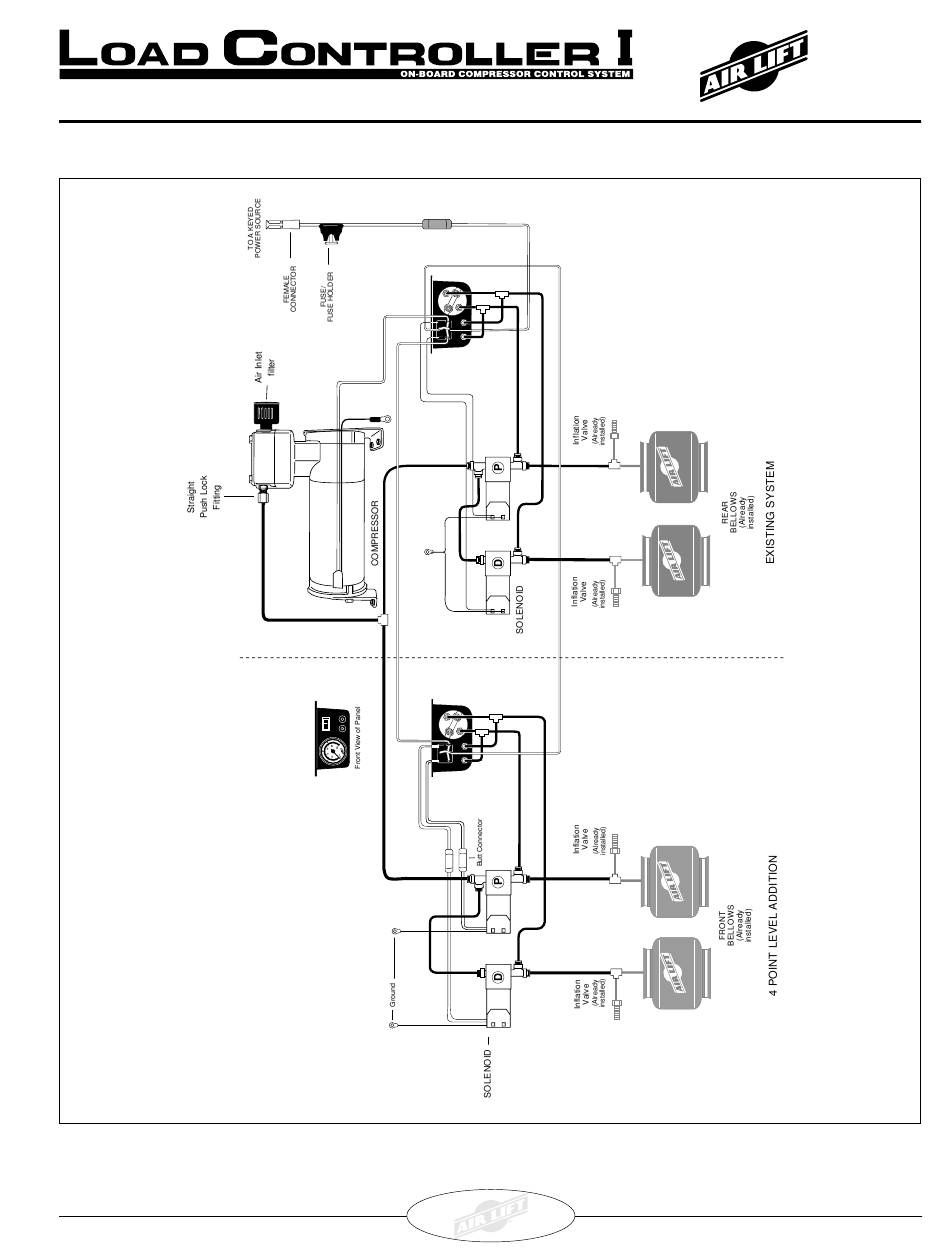

- Page 3 V. Connecting the Air Lines Gauge Panel Relay Switch Diagram 1. Remove the air pressure from all air cylinders. Take the core out or use a tire gauge to bleed off the air pressure. Existing To Compressor Gauge Gauge (Already Installed) Panel Panel 2.
- Page 4 6. If compressor fails to function, check 20 amp fuse and ground connection. Repair and replace as necessary. 7. If electric motor runs, but compressor doesn’t function check to make sure solenoid valves are opening correctly. Thank you for purchasing Air Lift Products Mailing Address:...
