Manrose PURO DCT4565 Quick Start Manual

Thank you for choosing the Manrose Puro 100mm through wall ventilator
for outside air supply into bedrooms, living rooms, home offi ces etc.
The recommended installation position in a room is high on the wall and
preferably close to a radiator. If there is underfl oor heating, the ventilator
should be installed at least 1m from the window to avoid downdraught.
The ventilator, with adjustable front cover, consists of an internal section,
fi tted with a damper and fi lter, a wall pipe and an external typhoon cowl.
The damper is adjusted with a control placed under the cover on the
underside of the ventilator.
A basic fl ow of approximately 3 l/s at 10 Pa is standard as a result of the
minimum fl ow position. The air supply can be stopped completely by
pushing the front cover fi rmly into the ventilator.
Description

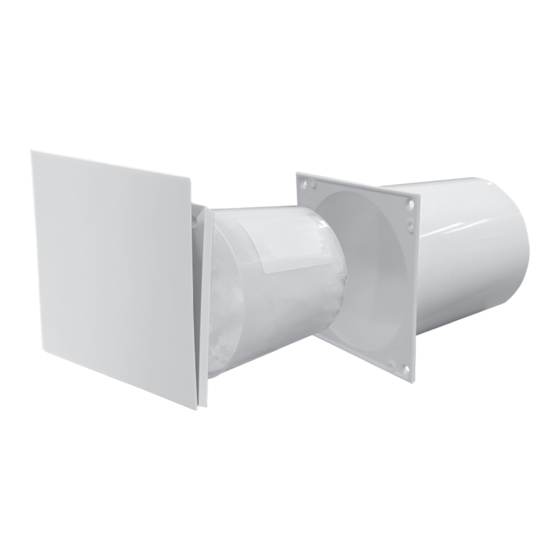

PURO Through Wall Ventilator
Replacement Filter
(order separately)
Replacement Typhoon Cowl
(order separately)
1
4
INSTALLATION
1 Avoid installing where there are studs, or if in close proximity to
2 Outside, press fi t the outer sleeve onto the external typhoon cowl
3 Insert the external typhoon cowl (with sleeve) and the fi tted connection
Product Code
4 Internally, apply sealing compound on both ends of the sleeve's tubular
DCT4565
DCT4564
5 Insert the fi lter into the sleeve then set the required opening, top or
DCT4572
MAINTENANCE
The ventilator is easy to clean. The cover is pulled straight off, the fi lter is
then visible. The fi lter should be cleaned/replaced once or twice a year.
The standard fi lter can be cleaned using a mild soap solution. The pollen
and environmental fi lter should be replaced with a new one.
2
5
electrical wiring and/or water pipes. 175mm (min) down from the
ceiling, drill a 5mm Ø pilot hole through the inside wall where the
ventilator is to be installed. Using the pilot hole, drill a 105mm Ø hole
through the wall from the inside to outside on a slightly downward
angle. Use either a hole saw or drill a ring of small holes and then knock
out the centre.
and then fi t the number of connection pipes required to extend through
the wall. Where wall thickness is greater than 320mm, additional
connection pipes will be needed. Apply sealing compound in the joint
between the typhoon cowl and sleeve.
pipes through the wall from the outside and fi x the typhoon cowl
in position. Seal against the outside wall with a sealing compound.
section. Insert the sleeve in the wall opening and screw in position.
bottom, and mount the cover.
3
Filtered Passive
Through Wall Ventilator
and Cowl Kit
