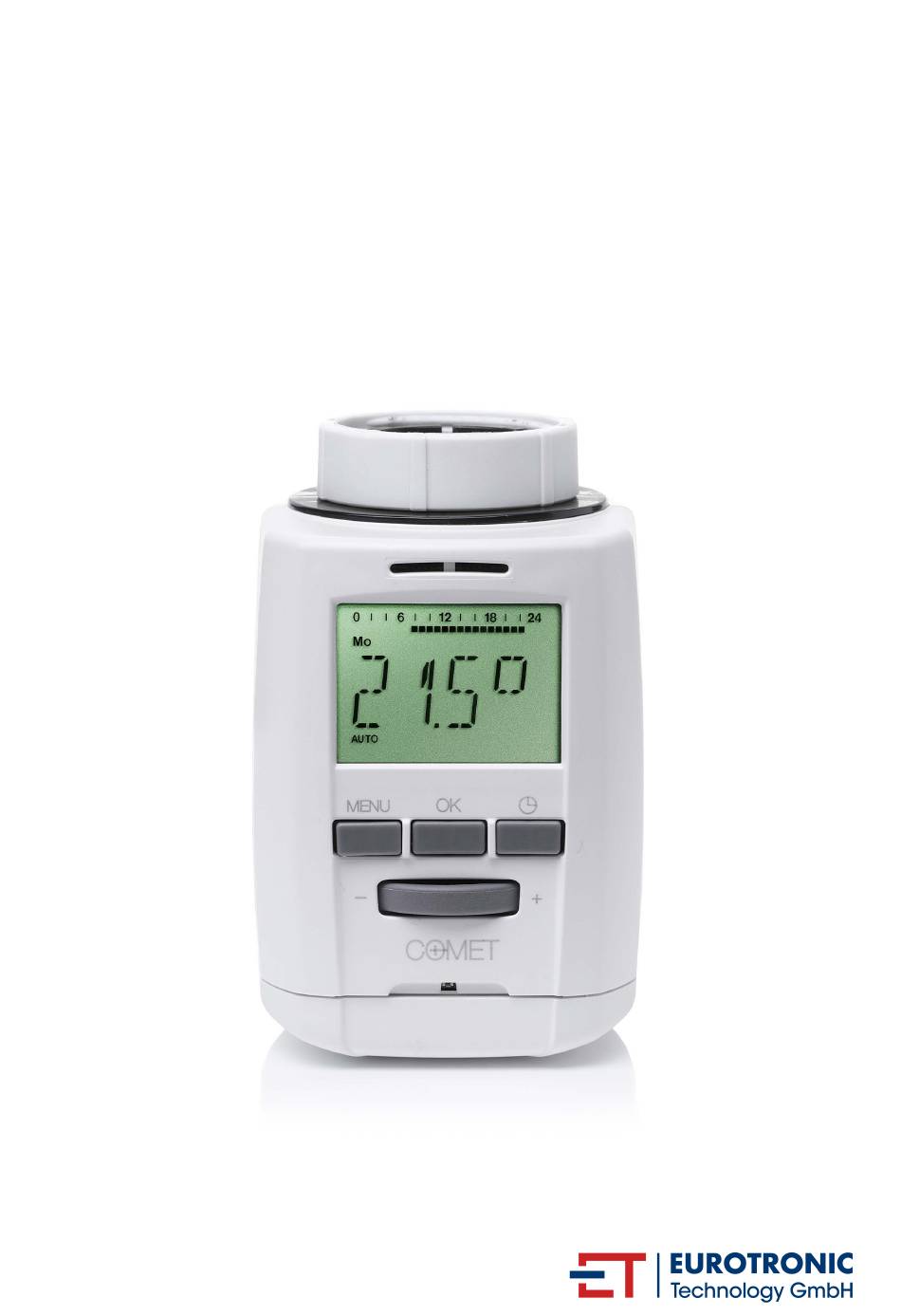

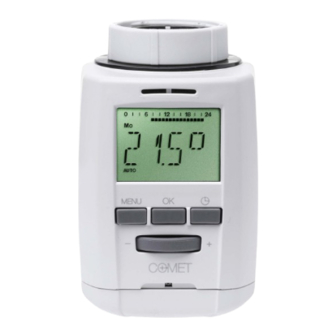

Sparmatic Comet
OPERATING INSTRUCTIONS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sparmatic Comet and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Eurotronic Sparmatic Comet

Summary of Contents for Eurotronic Sparmatic Comet

  • Page 1 Sparmatic Comet OPERATING INSTRUCTIONS...
  • Page 2 Sparmatic Comet LEGAL NOTICE Operating Instructions Sparmatic Comet Electronic Energy-Saving Controller Manufacturer Operating Instructions Status 2023.07 EUROtronic Technology GmbH Version 1.0 / EN Südweg 1 36396 Steinau-Ulmbach Germany www.eurotronic.org Publisher Ingenieurbüro FORMAT GmbH Ebertstraße 80 26382 Wilhelmshaven Germany www.format-docu.de Legal Information...

  • Page 3: Table Of Contents

    Sparmatic Comet CONTENTS These operating instructions will guide you through the commissioning and use of your Sparmatic Comet and answer all essential questions. Read these operating instructions carefully before using your Sparmatic Comet. Hand over all documents when passing it on to third parties.

  • Page 4: Safety Information

    Sparmatic Comet Safety Information SAFETY INFORMATION In addition to the safety information in these operating instructions, all other available sources must also be observed. The areas of use defined in the written explanations of the proper use must be observed.

  • Page 5: Warnings

    Sparmatic Comet Safety Information WARNINGS When operating your Sparmatic Comet and its components, hazards may occur that can be avoided by observing the following warnings. CAUTION!: Serious risk of injury caused by exploding batteries! Improper handling of batteries can lead to an explosion.
  • Page 6 IMPORTANT! Material damage and malfunction possible! Your Sparmatic Comet can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been supervised or instructed in the safe use of your Sparmatic Comet and understand the hazards involved.

  • Page 7: Scope Of Delivery

    If material damage and/or malfunctions occur, contact the Customer Service of Euro- Î tronic Technology GmbH. INFORMATION The following drawings are for the purpose of illustration and are not necessarily to scale. EUROtronic Technology GmbH reserves the right to change the design or dimensions without prior notice. RAV pin* RAVL Screw...

  • Page 8: Overview

    PROPER USE Your Sparmatic Comet is used to regulate a radiator valve. This makes it possible to regulate the room temperature time-controlled. Your Sparmatic Comet moves a radiator valve to control the flow of heat into the radiator. It can be installed on all common radiator valves. Only use your Sparmatic Comet indoors.

  • Page 9: Controls And Display Elements

    Sparmatic Comet Controls and Display Elements CONTROLS AND DISPLAY ELEMENTS The following section describes the controls and display elements of your Sparmatic Comet. AUTO MANU Union nut Setting wheel Heating times Battery compartment Child safety lock active button – Main menu/one menu back...

  • Page 10: Putting Into Operation

    (see  Section 5.2 Setting date and time on Page 11). INFORMATION Note that your Sparmatic Comet is not in the installation mode after inserting the batteries. Set the date and time for this purpose (see  Section 5.2 Setting date and time on Page 11).

  • Page 11: Setting Date And Time

    Your Sparmatic Comet automatically switches to summer and winter time. You can also set the date and time at a later time using the TIME menu item. Note that your Sparmatic Comet does not switch to the adaptation mode and the motor does not completely ramp up.

  • Page 12: Installing On Radiator

    After you have set the time and date (see  Section 5.2 Setting date and time on Page 11), install your Sparmatic Comet on the desired radiator. The Sparmatic Comet can be installed on all known valve bodies (see adapter list at www.eurotronic. org/service/faq).
  • Page 13 Page 16. INFORMATION For later assembly, select the INST item in the menu with the setting wheel and confirm with the button. AdAP is shown in the display of your Sparmatic Comet. Only install your Sparmatic Comet in this position.

  • Page 14: Adapter Overview

    The following overview contains information about the valves and the required adapters. The adapters for Danfoss RAV, Danfoss RA and Danfoss RAVL are included with your Sparmatic Comet. When using the Danfoss RAV adapter, the RAV pin must be inserted on the valve plunger.
  • Page 15 Sparmatic Comet Putting into Operation INFORMATION Remove the connecting pieces of the plastic adapters completely (see illustration) before using one of the adapters included! For Danfoss RAV and Danfoss RA, use the screw and nut provided. CAUTION!: Danger of becoming trapped between the adapter halves! Carelessness when using adapters can lead to injuries.

  • Page 16: Adapting Sparmatic Comet

    Your Sparmatic Comet begins the adaptation process. Î When adapting, your Sparmatic Comet adapts to the stroke of your lower valve section. For this purpose, the valve is opened and closed several times to detect the respective end points. The process may take a moment.

  • Page 17: Removing Sparmatic Comet

    Sparmatic Comet Removing Sparmatic Comet REMOVING SPARMATIC COMET A prerequisite for removing your Sparmatic Comet is that ADAP is shown in the display. CAUTION!: Burns caused by hot radiator valve! Touching can cause burns to the hand. Avoid contact of battery acid with skin, eyes and mucous membranes.

  • Page 18: Operating Modes & Functions

    (Factory setting: 1st economy time at 10 p.m.) SETTING HEATING AND ECONOMY TIMES With the Sparmatic Comet you can set 4 heating and 4 economy times per day – for each day individually or for several days in a block.
  • Page 19 Maximum energy savings are achieved at an economy temperature that is approx. 5°C below the comfort temperature. MANUAL OPERATION The temperature can be changed at any time using the setting wheel. In the AUTO mode, this remains unchanged until the next switching point. Your Sparmatic Comet then switches to the set heating pro- gramme.

  • Page 20: Additional Functions

    If the temperature drops sharply due to an open window, your Sparmatic Comet automatically closes the heating valve for 10 minutes to save energy. WIND appears in the display. Your Sparmatic Comet then returns to normal operation. Set the window function individually: Navigate to the menu item WIND and confirm with the button.
  • Page 21 FROST AND LIME PROTECTION The frost protection and limescale protection functions are automatically active. Frost protection: If the temperature drops below 8°C, the Sparmatic Comet opens the valve until the temperature rises above 8°C again. This prevents the radiators from freezing.

  • Page 22: Resetting To Factory Settings

    Sparmatic Comet Operating Modes & Functions RESETTING TO FACTORY SETTINGS If problems occur, it may be helpful to reset your Sparmatic Comet to the factory settings. Navigate to the menu item rES and confirm with the button. YES? is shown in the display.

  • Page 23: Troubleshooting

    Sparmatic Comet Troubleshooting TROUBLESHOOTING Problems can also occur with your Sparmatic Comet. The following information will help you eliminate errors. Problem Cause Remedy • The batteries are weak. • Change the batteries. Radiator does not heat • Incorrect boiler temperature.

  • Page 24: Cleaning And Storage

    CLEANING AND STORAGE Switch off your Sparmatic Comet and remove the batteries if you will not be using your Sparmatic Comet for a longer period of time. Store your Sparmatic Comet in a dry, dust-free place.

  • Page 25: Appendix

    Material damage possible! Improper handling of your Sparmatic Comet may result in damage. Do not immerse your Sparmatic Comet in water or other liquids. Î Do not use aggressive cleaning agents, brushes with metal or nylon bristles or sharp or metallic Î...

  • Page 26: Disposal

    Sparmatic Comet Appendix You can contact us for technical support. We look forward to assisting you with your enquiry: Phone: +49-(0)-6667-91847-0 E-mail: support@eurotronic.org EUROtronic Technology GmbH Customer service: Südweg 1 36396 Steinau-Ulmbach Germany 10.3 DISPOSAL INFORMATION Please inform yourself about the options for returning old devices and used batteries free of charge at your retailer.

  • Page 27: Simplified Declaration Of Conformity

    Sparmatic Comet Appendix points and foil at recyclables collection points. The symbols on your Sparmatic Comet, the operating instructions or the packaging refer to these regulations. With recycling, material recovery or other forms of recovery of used devices/batteries, you make an important contribution to the protection of our environ- ment.
  • Page 28 EUROtronic Technology GmbH Südweg 1 | 36396 Steinau-Ulmbach | Germany www.eurotronic.org...
