Summary of Contents for Eurotronic Comet WiFi
- Page 1 Comet WiFi INSTALLATION AND OPERATION GUIDE Eurotronic Technology GmbH Südweg 1 | 36396 Steinau-Ulmbach | Germany www.eurotronic.org...
-
Page 2: Table Of Contents
TABLE OF CONTENT Comet WiFi The following operating instructions will guide you during commissioning and use of your Comet WiFi and answer all essential questions. Please read these operating instructions carefully before using your Comet WiFi. Scope of Delivery Warning / Safety... -
Page 3: Scope Of Delivery
The illustrations below are for illustrative purposes only and may different from the actual product. RAV Pin* RAVL Comet WiFi Energy saving controller Screw for adapter * If you use the RAV adapter, you need the RAV pin for the Extension of the valve tappet... -
Page 4: Warning / Safety
- Use Comet WiFi only as described in the operating instructions - Comet WiFi should only be used in a dry and dust-free place without direct sunlight - Do not continue to operate the device if it has obvious damage - Comet WiFi must not be rebuilt, modified or opened. -
Page 5: Introduction Comet Wifi

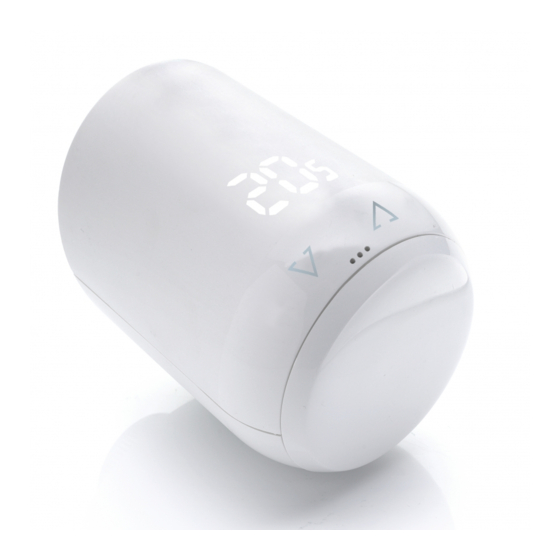

DAS IST COMET WIFI Comet WiFi is an energy-saving controller for radiators equipped with the WiFi radio standard, with modern and simple operation. It automatically regulates your room temperature according to your specifications and is configurable, direct- ly on the controller or conveniently via smartphone via your WiFi network. -
Page 6: Control And Display Elements
4. CONTROL AND DISPLAY ELEMENTS Comet WiFi Radio symbol flashes = connection to the server is being established Radio symbol lights up = thermostat is connected to the server Radio icon not lit = No connection to the WiFi network... -
Page 7: Installation And Start-Up
5. INSTALLATION AND START UP Comet WiFi The following explanations describe the procedure using an Android app (app version: 1.2) and may differ slightly for Apple. In addition, the screenshots shown may differ from newer app versions. 5.1 DOWNLOAD APP 1. -
Page 8: Add New Device
NOTICE: Comet WiFi can only be integrated into 2.4 GHz WiFi networks. Connection and communication problems can occur in mixed networks that transmit on both 2.4 GHz and 5 GHz. Seite 8... -
Page 9: Inserting Batteries
Depending on the software version, your thermostat will be configured with the WiFi radio name in the WiFi settings “Comet WiFi“ or “Eurotronic“ is displayed. If you have purchased a device with older software (radio name: Eurotronic), a software update will be carried out directly during setup. - Page 10 5. INSTALLATION AND START UP Comet WiFi 3. Click on the „Next“ button after you have returned to the app. Your device will then be fully set up. 4. Your thermostat will then be set up and you will be given one Notice when the thermostat has been set up successfully.
-
Page 11: Mounting To The Radiator
ATTENTION: Make sure that your Comet WiFi is also in the adaptation mode when installing / removing it later. Remove the batte- ries briefly, reinsert the batteries and wait until the motor run is complete and “Ad“ appears on the display. Only mount/ dismount your Comet WiFi in this position. -
Page 12: Adapters
You can purchase other chargeable metal adapters from our partners. An overview of the metal adapters and the corresponding ordering options can be found under the following link: https:/ /eurotronic.org/produkte/zubehoer/metalladapter/ If you are not sure which valve you have, look under: https:/ /eurotronic.org/service/faq under the button “Adapter list“. RAV Pin RAVL... -
Page 13: Adaptation
5.9 INSTALLATION AND START UP Comet WiFi After installation, Comet WiFi can start with the adaptation. “Ad“ appears in the display. To start the adaptation, hold down the two arrow keys on your Comet WiFi simultaneously for approx. 3 seconds. After successful adaptation, Comet WiFi goes into normal operation, the LEDs indicate the target temperature. -
Page 14: Disassembly
6. DISASSEMBLY Comet WiFi To disassemble Comet WiFi, briefly remove the batteries. Put the batteries back in and wait until the motor run is complete and “Ad” appears on the display. Now turn the union nut anti-clockwise and remove the Comet WiFi from the valve (Fig. -
Page 15: Comet Wifi App
The manually set temperature then remains until the next switching point. Then Comet WiFi switches back to the set heating pro- gram. In the menu bar you can switch between the menu items: Select “temperature“, “heating profile“, “settings“... -
Page 16: Settings
If the temperature differs, you can carry out a temperature adjustment. If you activate the “Summer/Winter time“ toggle switch, the time changeover is carried out automatically. Activate this button to rotate the Comet WiFi display by 180°. 7.4 HOLIDAY Select the time of your departure. -
Page 17: Softwareupdate
7.5 SOFTWAREUPDATE Comet WiFi Software updates are displayed under the Software update menu item. NOTE: Leave your smartphone switched on during the software update. Do not activate the key lock of your smartphone. Please note that the device will temporarily not be opera-... -
Page 18: Device Management
Here you can see if your device is currently online or not. Here you can see the current software, your Comet WiFi run with. See the battery status of your Comet WiFi. Check the WiFi signal strength of the thermostat. -
Page 19: Main Functions
Here you can configure the vacation mode as desired. If you press a button on the Comet WiFi during an active holiday profile, “Ho“ is shown in the display. If you press a button again, the target temperature is shown on the display and holiday mode is deactivated. -
Page 20: Further Functions
Depending on the positioning of your radiator valve, it may be necessary to rotate the display on your controller by 180°. To do this, go to the “Settings” menu item in the app. Here you can rotate the display of your Comet WiFi. -
Page 21: Error Messages And Help
The app shows at “My WiFi Net- - Check whether your WiFi network operates work” does not indicate a WiFi on 2.4 GHz, as Comet WiFi can only be integ- network. rated into a 2.4 GHz WiFi network. This can be viewed in the settings of your WiFi router and changed if necessary. -
Page 22: Cleaning And Storage
11. CLEANING AND STORAGE Comet WiFi RISK OF DAMAGE! Improper handling of the thermostat can lead to damage. Do not immerse the thermostat in water or other liquids. Do not use aggressive cleaning agents, brushes with metal or nylon bristles, or sharp or metal cleaning objects such as knives, hard spatulas, and the like. -
Page 23: Legal Information
MNG, Honeywell Braukmann thread size (M30x1.5), Oventrop (M30x1.5) Danfoss RA, RAV and RAVL. The device com- binations can be found on our website (www.eurotronic.org). When operating the thermostat with third-party valves/ adapters that are not listed, the user must ensure functionality. In these cases, Eurotronic does not provide any warran- ty service. - Page 24 Eurotronic Technology GmbH Südweg 1 | 36396 Steinau-Ulmbach | Germany www.eurotronic.org Version: 07/2022...
