Eurotronic sparmatic COMET User Manual

sparmatic
COMET
programmable
energy-saving energy-saving
radiator thermostat radiator thermostat
User manual
By the way...
Do you already know about PROGmatic programming sticks?
You can programme SPARmatic comet by hand or you can
use, for example, the comfortable PROGmatic-Bluetooth
programming stick to copy your personally specifi ed heating and
economy times onto all your EUROtronic energy-saving radiator
thermostats at your home which have a programming port in a
matter of seconds. Detailed information and the *PROGmatic
Programming sticks can be found on: www.eurotronic.org
Please read the user manual before you place the thermostat.
Keep the documents for later questions and provide them if
you pass the thermostat on to other persons.
Scope of delivery

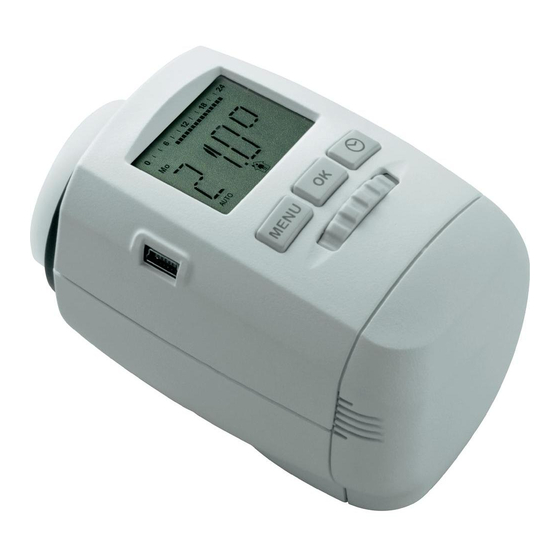

1 SPARmatic comet energy saving radiator thermostat
1 User manual
1 Connector
3 Adapters (Danfoss RA, Danfoss RAV, Danfoss RAVL)
Application as directed
By purchasing the SPARmatic comet energysaving radiator
thermostat you own a programmable radiator thermostat
which can be used for temperature regulations in enclosed
rooms and therefore, it can contribute to the reduction of hea-
ting energy. – Please use the thermostat only for this purpose.
The EUROtronic programming port is intended ONLY for our
EUROtronic programming stick. Never connect other devices
with the programming port!
Display and control elements
1 Heating times
2 Child lock active
3 Battery low
4.a Travel function
active
4.b Comfort temperature
active
4.c Economy temperature
active
4.d Window/freeze protection
function active
5 AUTO or MANU mode active
6.a Button – leads to the main menu (starting from
MENU
regular display); within the menu one keypress leads
to the previous level
6.b Button – confi rmation of setting
OK
6.c Button – timer function
7 Selector wheel
Set up menu
By pressing you will arrive at the set up menu. Please
MENU
choose one of the items with the selector wheel. With
you can select one menu item and with the selection wheel
they can be adjusted. The button
OK
The button leads to the previous level.
MENU
to select the mode
AUTO = automatic mode
MANU = manual mode
setting of time programme
setting of comfort and economy temperature
setting of date and time
window function
reset of the device to factory preset
starting of a new adaptation to adjust the valve
travel function
installation function (Please only attach the
controller to the coupling ring in this position)
adaptation of temperature to the room situation
standby function
version
Daylight saving time
www.eurotronic.org
Inserting / replacing batteries
Remove the battery lid by pressing the battery lid upwards (1)
at the highlighted point and then taking it out (2).
Then insert the batteries as represented in the appliance.
Do not use accumulators! Ensure that the polarity is
correct! Attention: Never recharge batteries, danger of
explosion! Do not short circuit batteries! Do not disassemble
batteries! Take low batteries out of the device immediately.
Keep batteries away from extreme warming – danger of
leakage! Do not apply used and new batteries together.
If needed, clean the battery and the contacts before using
them. Keep the batteries away from children. When getting
in touch with battery acid instantly irrigate the affected parts
with clear water and call a doctor.
Setting date and time
After inserting the batteries for the fi rst time the date will fl ash on
the display. Now, date and time can be set.
Set date with the selector wheel.
Set month with the selector wheel. Confi rm with
Set day with the selector wheel.
Set hour with the selector wheel.
Set minute with the selector wheel. Confi rm with
– That´s it.
On the display
pletely move to the installation position in order to make the
installation easier. As soon as SPARmatic comet is ready for
installation
( - any time selected in the menu). Now please do not
press any other buttons! Plug device for coupling ring.
➔ mounting.
You can also set date and time via the menu item
on. But in case of that, SPARmatic comet does not move to
the installation position.
In case of replacing batteries, the stored time
➔
programme will remain active. You should
check the specifi ed time to ensure that.
Mounting
SPARmatic comet can be quickly and easily mounted on all com-
mon valves (see adapter table). It can be installed without grime
and water spots because the heating circuit is not interrupted.
valve – coupling ring
1
0 6 12 18 24
Mo Di Mi Do Fr Sa So
2
:
3
4
AUTO
MANU
5
1. Turn the manual thermostat head up completely, loosen
MENU OK
6
the fastening and pull the thermostat off of the valve.
2. Use an appropriate adapter, if required, and push it onto
7
the valve.
3. Screw the connector on the valve or the adapter.
4. Now, you put SPARmatic comet on the connector until it
noticeably clicks into place.
Additional information about the different adapters
ATTENTION: It must be possible to insert SPARmatic comet
without applying force, ensure that the appliance is in the
„ " or „
OK
In case of a later installation, please switch in the menu
➔
to „
confi rms the setting.
installation is facilitated. Only mount it in this position.
Dismounting
To remove SPARmatic comet remove this at the
➔
(with the wheel turn on the highest temperature of over
28 C° to
press on the unlocking device to detach the quick-
release catch. Then pull the SPARmatic comet from
the valve.
(1)
(2)
Confi rm with
OK
OK
Confi rm with
OK
Confi rm with
OK
OK
will be shown. Now, the motor will com-
will be shown on the display.
valve – adapter – coupling ring
are at: www.eurotronic.org
" position.
" before you install the device. Herewith the
position), wait for a short period and then
Adaptation
Initial installation: Press the button
on the display so that SPARmatic comet will be able to start
its adaptation. The device will adapt itself to the stroke of
your valve body. To do this the valve will now be opened and
closed several times to store the end points. In some cases
this process can take a few minutes. After successful adapta-
tion it returns to normal mode.
Should adaptation become necessary again, e.g. if your
➔
radiator does not cool down in the
press in the menu the button
starts again.
If the mistake is shown on the display place SPAR-
➔
matic comet onto the radiator valve and then take the
batteries out for a short time in order to execute a reset.
Basic operating modes
MANU-Modus
In the MANU-mode SPARmatic comet adjusts to the manually
specifi ed temperature.
AUTO-Modus
In the AUTO-mode SPARmatic comet changes between to tem-
peratures according to the time programme that has been set:
. comfort temperature (factory preset 21°C)
.
economy temperature (factory preset 16°C)
.
The heating and economy times can be specifi ed via the
.
adjustable time programme. It is possible to set 8 switch
points (4 heating and 4 economy times) per day at the most.
SPARmatic comet has the following factory preset:
Heating time:
Heating with comfort temperature
(factory preset: 1st heating time at 07:00)
Economy time:
lowering to economy temperature
(factory preset: 1st economy time at 22:00)
Setting heating and economy times
later
With SPARmatic comet it is possible to set 4 heating and 4
economy times per day – one for each day or one for a block of
several days. TAG1 to TAG7 represent the weekdays from Mon-
day to Sunday. Additionally, the corresponding days are shown
as abbreviation below the menu bar on the display.
Block construction:
T 1–5 = same programme from Monday to Friday
T 1–6 = same programme from Monday to Saturday
T 1–7 = same programme from Monday to Sunday
For non-programmed days the factory preset
➔
remains active.
Setting of an individual programme:
Press . Select the menu item
MENU
wheel. Press . for Monday is shown on the display.
OK
Select day/block with the selector wheel. Confi rm with
Set the beginning of the 1 st
selector wheel. Confi rm with
economy time (symbol ) with the selector wheel. Confi rm with
. Now, if desired, a 2
nd
OK
can be entered.
If you do not want to set a further heating/economy time
➔
confi rm „ " with
The next day for programming is shown on the display.
If you do not want to enter a further day, leave the menu
➔
with . If the temperature is shown on the display the
MENU
programming is fi nished. Within the blocks you can also
overwrite single days with differing times.
Setting comfort and economy temperature
Press . Select the menu item
MENU
selector wheel. Confi rm with
temperature with the selector wheel. Confi rm
with . Set the economy temperature with the
OK
selector wheel. Confi rm with
Area : 8°C, freeze protection function is active
Area :
valve is completely open
By the way: Maximum energy saving can be
➔
obtained with an economy temperature which
is about 5 °C below the comfort temperature.
Manual operation
With the selector wheel an adaptation of the room tempe-
rature is possible at any time. In the AUTOmode it remains
active until the next switch point is reached. Now, the usual
programme becomes active again.
until appears
OK
-Position, please
until adaptation
with the selector
.
OK
heating time (symbol )with the
. Set the beginning of the 1
st
OK
, 3 or 4 heating/economy time
rd th
.
OK
with the
. Set comfort
OK
.
OK
