- Page 1 S P I R I T ZigBee ® Installation & Operation Guide www.eurotronic.org...
-
Page 2: Table Of Contents
Contents Scope of Delivery Basic Identify Warning Instructions Power configuration Time This is Spirit ZigBee Thermostat 6.5.1 Application Version Attribute Operating and Display Elements 6.5.2 PI Heating Demand Attribute Buttons 6.5.3 Errors Boost button LEDs 6.5.4 Current Temperature Setpoint Attribute Reproting... -
Page 3: Scope Of Delivery
1 Scope of Delivery 1. Spirit ZigBee Energy-saving thermostat 2. Screw 3. Adapter for Danfoss valves (RA / RAV / RAVL) 4. 2x AA batteries If you use a RAV adapter, you need to extend the valve stem with a RAV pin. -
Page 4: Warning Instructions
Only use the Spirit ZigBee as described in the operation guide. The Spirit ZigBee is only to be used in a dry and dust-free place and not be subjected to direct sunlight. Do not continue to use the device should it show obvious signs of damage. -
Page 5: This Is Spirit Zigbee

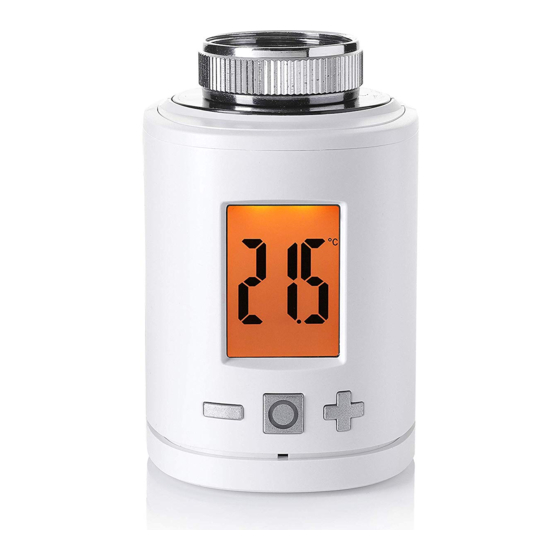

3 This is Spirit ZigBee Spirit ZigBee is an energy-saving thermostat for the heating radiator that is compatible with the ZigBee wireless standard. As a heating radiator thermostat, the Spirit ZigBee uses the Home Automation Profile 1.2 as an HVAC compatible terminal device. -
Page 6: Boost Button Leds
Boost button LEDs Boost – green Boost – red Colour Status Meaning flashing Over the Air update of the controller software is being carried out. A controlling of the temperature is not possible. permanently illuminated Error when taking into operation. flashing The user is to provide confirmation. -
Page 7: Commissioning
Remove the cover of the battery compartment by pushing it upwards at the marked point and hanging it out. Now insert the batteries. Ensure that the polarity is correct! The configuration of your Spirit ZigBee is re- tained should you replace the batteries later. -
Page 8: Joining A Zigbee Network
After the batteries have been inserted, PrP is displayed and the Spirit ZigBee prepares itself for the instal- lation. The Spirit ZigBee is set in join mode at factory, this being indicated by a flashing radio symbol on the LCD display. -
Page 9: Mounting On The Radiator
After the joining has been completed, “INS” is displayed on the LCD and the Boost button flashes green. Do not confirm the button yet. Follow the mounting steps. After you have mounted the Spirit ZigBee on the valve, continue with 4.6 Adapting. -
Page 10: Conntection To Amazon Alexa
Spirit ZigBee at the radiator. After mounting, please press the green blinking button to start adapta- tion. 5. Meanwhile, your newly found device Spirit ZigBee will be shown in the app. Now, you can configure it via the app. -
Page 11: Adapting
Adapting Confirm the Boost button in order to start the adapting. Adapting Adapting successful 22.0° Confirm Boost Adaption process Main screen with button is running target temperature Adapting error Mech. Error xy adapter here Confirm Boost Adaption process Adaptation failed button is running Boost button... -
Page 12: Removing The Spirit Zigbee
Removing the Spirit ZigBee Disconnect the Spirit ZigBee from the network before you remove the device. To do so, set your ZigBee controller to the leave mode. The Spirit ZigBee should display “RES“ and the valve stem moves to the mounting position. -
Page 13: Local Operation
The target temperature takes effect 10 seconds after the last entry is made. The entry range of the target temperature is 5° - 30°C. Should the temperature be increased above it respectively, the Spirit ZigBee switches to Boost mode. Activating the child safety lock The child safety lock can activated / deactivated by pressing the Plus and Minus button for 3 seconds. -
Page 14: Window Open Detection
Should the temperature fall suddenly, the window open detection mode is activated. The Spirit ZigBee switches to the OFF mode for 15 minutes. The window open mode is left automatically after 15 minutes and Spirit ZigBee restore its setpoint temperature. -
Page 15: Basic
Date Code 0x0006 YYYYMMDD 0x42 (0-16 byte String) Power Source 0x0007 0x03 (battery) 0x30 (8-bit enum) Product Code 0x000A 1001 = Eurotronic 0x42 (0-8 Spirit ZigBee byte String) SW Build ID 0x4000 00000000 0x42 (0-16 byte String) Identify Cluster Attribute... -
Page 16: Time
Time Cluster Attribute Attribute Id Default Value Data Read/Write Manufactu- Reportable (Chapter) type (R/W) rer Specific (Y/N) (Y/N) Time No client attributes Thermostat Cluster Attribute Attribu- Default Value Data Read/Write Manu- Repor- te Id type (R/W) facturer table Specific (Y/N) (Y/N) Thermostat Local Temperature... -
Page 17: Application Version Attribute
6.5.1 Application Version Attribute With every release of the ZigBee microcontroller’s firmware the application version attribute will be incre- mented (e.g. from 0x01 to 0x02). A revision history is provided separately 6.5.2 PI Heating Demand Attribute The attribute can only be read. An unsigned integer is supplied when reading, this representing the current valve position. -
Page 18: Attribute Reproting
Attribute Reproting Device Type Pre-Configured Recommended Cluster Attribute Attribute ID Reporting Interval Reporting Configu- ration 43200s (12 Hours) Report twice a day Power configura- Battery Percenta- 0x0021 (or not at all) tion ge Remaining Report every 1200s Report every 600s Thermostat Local Temperature 0x0000... -
Page 19: Troubleshooting And Error Messages
Boiler water temperature O.K? Adjust the temperature of the boiler water. heat up. Valve does not open, is it calcified Remove the Spirit ZigBee. Move the valve pin back and after the summer/heating pause? forth manually/using a tool. The radiator does not The valve does not close com- Remove the Spirit ZigBee. -
Page 20: Adapter
Transmission power +8dBm Threaded connector M30 x 1,5mm 11 Support and Contact For technical support for EUROtronic products, please contact EUROtronic by email or telephone: Customer Service: Telephone: +49 66 67 9 18 47-19 Eurotronic Technology GmbH Südweg 1 Mo.-Fr.: 8:00 - 16:30 36396 Steinau-Ulmbach Email: info@eurotronic.org... -
Page 21: Warranty Information
(www.eurotronic.org/Shop). When using the thermostat with third party valves/adapters, that are not listed there, the user is to ensure the functionality. EUROtronic shall not provide any warranty services in this case. After expiry of the warranty period, you can also send the defective device to the stated address postage paid.
