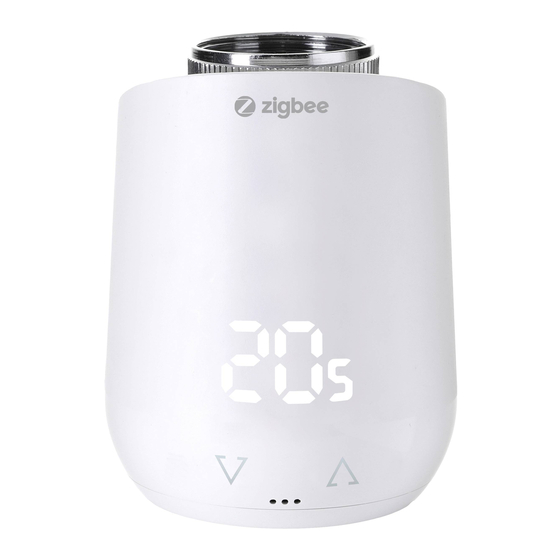

Energy-saving radiator thermostat with zigbee
Hide thumbs Also See for Comet Zigbee:

Advertisement

Quick Links

Comet Zigbee
®
ENERGY-SAVING RADIATOR THERMOSTAT
WITH ZIGBEE
EN
www.eurotronic.org

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Comet Zigbee and is the answer not in the manual?

Questions and answers

Summary of Contents for Eurotronic Comet Zigbee

  • Page 1 Comet Zigbee ® ENERGY-SAVING RADIATOR THERMOSTAT WITH ZIGBEE www.eurotronic.org...
  • Page 2: Table Of Contents

    CONTENT Delivery scope Warnings Introduction of Comet Zigbee Control and display elements Buttons LED-lights Installation Insert batteries Set up into a Zigbee network Mounting at radiator Adapters 9 -10 Adaption 10 -11 Delete a device out of a Zigbee network...
  • Page 3: Delivery Scope

    1. DELIVERY SCOPE 1x Comet Zigbee Energy saving radiator 1x Quick Start Guide 3x Adapter for Danfoss Ventile (Danfoss RA / RAV / RAVL) 1x Screw for adapter 2x LR6/Mignon/AA batteries NOTE: The illustrations below are for illustrative purposes only and may differ from the actual product.
  • Page 4: Warnings

    - Comet Zigbee is intended for indoor use. - Operate Comet Zigbee only as described in the user manual. - Comet Zigbee should only be stored in a dry and dust-free place out of direct sunlight be put into use.
  • Page 5: Introduction Of Comet Zigbee

    THIS IS COMET ZIGBEE Comet Zigbee is an energy-saving radiator controller that is compatible with the Zigbee wireless standard and offers modern and simple operation. It automatically controls your room temperature according to your specifications and is configurable, directly on the controller or conveniently via smartphone through your Zigbee network.
  • Page 6: Led-Lights

    LED-LIGHTS Radio symbol: Informs about radio connection and adding operations. Is switched on when radio connection is established. Turns off when radio connection is lost. Pairing mode (Inclusion) active. Exclusion mode active. Adaptation must be started. Animation: Lights up while adaptation is running. Animation: Lights up when the key lock is activated/deacti- vated.
  • Page 7: Installation

    5. INSTALLATION The Comet Zigbee does not belong to any Zigbee network ex works. The Comet Zigbee must be added to an existing network in order to communicate with other Zigbee devices. This process is called inclusion. The Comet Zigbee can also leave a network.
  • Page 8: Set Up Into A Zigbee Network

    SET UP INTO A ZIGBEE NETWORK Put your primary Zigbee controller into include mode. If Comet Zigbee was successfully added, the LED display will show the received node ID. Add successful radio symbol turns on Inclusion is executed. Inclusion successful.
  • Page 9: Mounting At Radiator

    2. If necessary, select a suitable adapter and mount it on the valve (Fig.4). 3. Screw the thermostat onto the valve or adapter by turning the union nut clockwise (Fig.5). When you have mounted the Comet Zigbee on the valve, continue with 5.4 Adaptation. 5.4. ADAPTERS Fig.
  • Page 10: Adaption

    You can purchase further metal adapters for a fee from our partners. An overview of the metal adapters and corre- sponding ordering options can be found under the following link: https:/ /eurotronic.org/produkte/zubehoer/metalladapter/ If you are not sure which valve you have, see: https:/ /eurotronic.org/service/faq In chapter Adapterliste“. “...
  • Page 11: Delete A Device Out Of A Zigbee Network

    Adaptation error Mech. error buy here Adapter Press and hold Mounting position is prepared. Adaptation failed. together for 3 seconds. Animation is displayed. Repeat the process. key clears error message. DELETE A DEVICE OUT OF A ZIGBEE NETZWORK Please put your Zigbee controller into the exclusion mode. Then press and hold the button in the battery compartment for 5 seconds until “LE”...
  • Page 12: Dismounting Comet Zigbee

    FACTORY RESET Press and hold the button in the battery compartment of your Comet Zigbee for at least 10 seconds. From the 5th second on, a counter will run on the thermostat’s display. Keep the button pressed until the 10 appears on your Comet Zigbee.
  • Page 13: Operating The Device

    3 seconds, when the display is off. If the Comet Zigbee is set to the highest protection level by radio, local operation is no longer possible. The child safety lock can then also no longer be removed locally.
  • Page 14: Operating Zigbee

    0x42 (0-16 byte String) Power Source 0x0007 0x03 (battery) 0x30 (8-bit enum) Product Code 0x000A 1002 = Eurotro- 0x42 (0-8 nic Comet Zigbee byte String) SW Build ID 0x4000 00000000 0x42 (0-16 byte String) POWER CONFIGURATION Manu- Read/ Attribute factorer...
  • Page 15: Thermostat

    THERMOSTAT Read/ Repor- Attribute Manufactorer Cluster Attribute Default Value Data Type Write table Specific ( Y/N) (R/W) (Y/N) Ther- mostat Local Temperature 0x0000 0x29 (int16s) Pi Heating Demand 0x0008 0x00 0x20 (int8u) (valve position %) Local Temperature 0x0010 0x00 0x28 (int8s) Calibration Occupied Heating Set 0x0012...
  • Page 16: Sw Build Id Attribute

    7.3.1 SW BUILD ID ATTRIBUTE This attribute defines the firmware version of the device. With every release of new firmware the value of this attribute will be updated. 7.3.2 PI HEATING DEMAND ATTRIBUTE The attribute can only be read. An unsigned integer is supplied when reading, this representing the current valve posi- tion.
  • Page 17: Errors And Messages Help

    Boiler water temperature O.K? Adjust the temperature of the boiler water. Remove Radiator does not Valve does not open, is it calcified after the Comet Zigbee. Move the valve pin back and forth not heat up. the summer/heating break? manually/using tool.
  • Page 18: Cleaning And Storage

    - Do not use abrasive cleaning agents, brushes with metal or nylon bristles or sharp or metallic cleaning implements such as knife, a hardspatula etc. - Clean the thermostat with a soft and dry cloth. Do not apply any pressure to the display 10. TECHNICAL SPECIFICATION Device name Comet Zigbee Method of operation Type 1 4260012712438 Dimension (mm)
  • Page 19: Warrenty

    (https:/ /eurotronic.org/service/faq). When operating the thermostat with third-party valves/adapters that are not listed, the functionality must be ensured by the user. Eurotronic does not pro- vide any warranty service in these cases. After the warranty period has expired, you also have the option of sending the defective device, with sufficient postage, to the address provided for the purpose of repair.
