- Page 1 Comet Z-Wave ™ ENERGY-SAVING RADIATOR THERMOSTAT WITH Z-WAVE www.eurotronic.org...
-
Page 2: Table Of Contents
CONTENT Delivery scope Warnings Introduction of Comet Z-Wave Control and display elements Buttons LED-lights Installation Insert batteries Set up into a Z-Wave network Mounting at radiator Adapters 9 -10 Adaption 10 -11 Delete a device out of a Z-Wave network... -
Page 3: Delivery Scope
1. DELIVERY SCOPE 1x Comet Z-Wave Energy saving radiator 1x Quick Start Guide 3x Adapter for Danfoss Ventile (Danfoss RA / RAV / RAVL) 1x Screw for adapter 2x LR6/Mignon/AA batteries NOTE: The illustrations below are for illustrative purposes only and may differ from the actual product. -
Page 4: Warnings
- Comet Z-Wave is intended for indoor use. - Operate Comet Z-Wave only as described in the user manual. - Comet Z-Wave should only be stored in a dry and dust-free place out of direct sunlight be put into use. -
Page 5: Introduction Of Comet Z-Wave

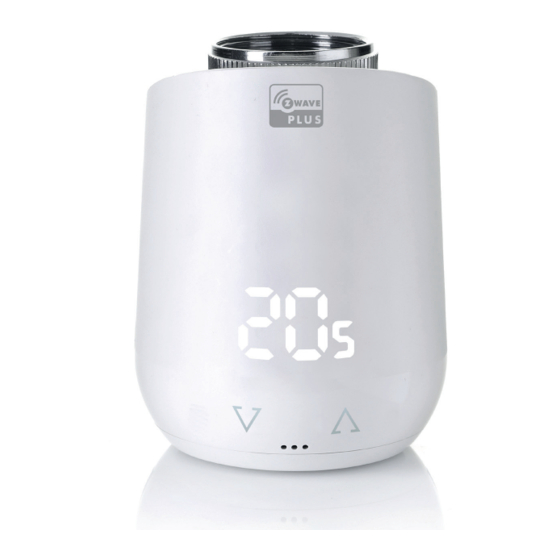

Comet Z-Wave is an energy-saving radiator controller compatible with the Z-Wave wireless standard. FLiRS (Frequently Listening Receiver Slave): Comet Z-Wave uses the Z-Wave function FLiRS as a radiator thermostat. As a FLiRS device, the radiator thermostat reacts to incoming commands such as temperature changes with a particularly short latency period. -
Page 6: Led-Lights
LED-LIGHTS Radio symbol: Informs about radio connection and adding operations. Is switched on when radio connection is established. Turns off when radio connection is lost. Pairing mode (Inclusion) active. Exclusion mode active. Adaptation must be started. Animation: Lights up while adaptation is running. Animation: Lights up when the key lock is activated/deacti- vated. -
Page 7: Installation
5. INSTALLATION The Comet Z-Wave does not belong to any Z-Wave network ex works. The Comet Z-Wave must be added to an exist- ing network in order to communicate with other Z-Wave devices. This process is called inclusion. The Comet Z-Wave can also leave a network. -
Page 8: Set Up Into A Z-Wave Network
SET UP INTO A Z-WAVE NETWORK Put your primary Z-Wave controller into include mode. If Comet Z-Wave was successfully added, the LED display will show the received node ID. Add successful radio symbol turns on If “PA” is not displayed, press Inclusion is executed. -
Page 9: Mounting At Radiator
2. If necessary, select a suitable adapter and mount it on the valve (Fig.4). 3. Screw the thermostat onto the valve or adapter by turning the union nut clockwise (Fig.5). When you have mounted the Comet Z-Wave on the valve, continue with 5.5 Adaptation. 5.4. ADAPTER Fig. -
Page 10: Adaption
You can purchase further metal adapters for a fee from our partners. An overview of the metal adapters and corre- sponding ordering options can be found under the following link: https:/ /eurotronic.org/produkte/zubehoer/metalladapter/ If you are not sure which valve you have, see: https:/ /eurotronic.org/service/faq In chapter Adapterliste“. “... -
Page 11: Delete A Device Out Of A Z-Wave Network
Adaptation error Mech. error buy here Adapter Press and hold Mounting position is prepared. Adaptation failed. together for 3 seconds. Animation is displayed. Repeat the process. key clears error message. DELETE A DEVICE OUT OF A Z-WAVE NETWORK Please put your Z-Wave controller into the exclusion mode. Then press and hold the button in the battery compartment for 5 seconds until “LE”... -
Page 12: Dismounting Comet Z-Wave
FACTORY RESET Press and hold the button in the battery compartment of your Comet Z-Wave for at least 10 seconds. From the 5th second on, a counter will run on the thermostat’s display. Keep the button pressed until the 10 appears on your Comet Z-Wave. -
Page 13: Operating The Device
3 seconds, when the display is off. If the Comet Z-Wave is set to the highest protection level by radio, local operation is no longer possible. The child safety lock can then also no longer be removed locally. -
Page 14: Operating Z-Wave
Informs about the battery status. U, S0, S2 Configuration Allows to configure the Comet Z-Wave. U, S0, S2 Device Reset Alerts the central unit that the Comet Z-Wave has been U, S0, S2 Locally reset locally. Manufacturer Provides information about manufacturer and product... -
Page 15: Assoziation
ASSOCIATION Comet Z-Wave can be connected only with the Z-Wave controller. Group No. Describtion Commands Max. Links (Lifeline) BATTERY_REPORT, DEVICE_RESET_LOCALLY_NOTIFICATION, THERMOSTAT_MODE_REPORT, THERMOSTAT_SETPOINT_REPORT, NOTIFICATION_REPORT, PROTECTION_REPORT, SENSOR_MULTILEVEL_REPORT, SWITCH_MULTILEVEL_REPORT BASIC Using the Basic command class, you can change the operating mode if your Z-Wave controller does not fully support Comet Z-Wave. -
Page 16: Configuration
0x80 Temperature is provided externally default: 0x00 0,0°C Offset MULTILEVEL SENSOR The room temperature measured by the Comet Z-Wave is automatically sent at a change of ±0.5°C. The threshold value can be configured. Report outgoing Sensor type: „Air Temperature“... -
Page 17: Multilevel Switch
The Comet Z-Wave can be set to the following operating modes. Mode Name Describtion Off-Mode: The Comet Z-Wave does not heat and tracks only 6°C as a frost protection measure 0x00 0x01 Heat Comfort mode: The Comet Z-Wave heats the room to the set comfort temperature Setback mode: The Comet Z-Wave heats the room to the set setback temperature. -
Page 18: Thermostat Setpoint
Boiler water temperature O.K? Correct the boiler water temperature. Radiator does not Valve does not open after summer Disassemble the Comet Z-Wave. Move the valve tap- not warm up. Heating break calcified? pet back and forth several times by hand/tool. -
Page 19: Cleaning And Storage
Switch off the device and remove the batteries if you do not use the device for a longer period of time. Store the device in a dry, dust-free place. 10. TECHNICAL SPECIFICATION Device name Comet Z-Wave Method of operation Type 1 4260012712421... -
Page 20: Warranty
(https:/ /eurotronic.org/service/faq). When operating the thermostat with third-party valves/adapters that are not listed, the functionality must be ensured by the user. Eurotronic does not pro- vide any warranty service in these cases. After the warranty period has expired, you also have the option of sending the defective device, with sufficient postage, to the address provided for the purpose of repair.
