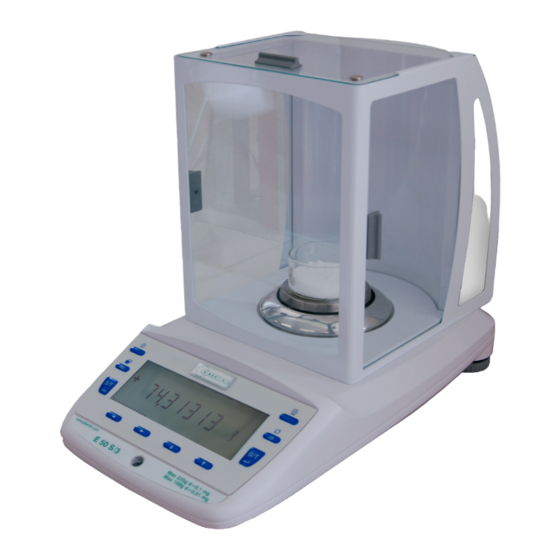

Gibertini E50S/3 Instruction Manual

Semi-micro balance

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

INSTRUCTION MANUAL

Semi-Micro

INSTRUCTION MANUAL

Balance

INSTRUCTION MANUAL

E50S/3

INSTRUCTION MANUAL

Table of Contents

Need help?

Do you have a question about the E50S/3 and is the answer not in the manual?

Questions and answers

Summary of Contents for Gibertini E50S/3

Page 1 INSTRUCTION MANUAL INSTRUCTION MANUAL INSTRUCTION MANUAL INSTRUCTION MANUAL INSTRUCTION MANUAL INSTRUCTION MANUAL INSTRUCTION MANUAL INSTRUCTION MANUAL INSTRUCTION MANUAL INSTRUCTION MANUAL INSTRUCTION MANUAL INSTRUCTION MANUAL Semi-Micro INSTRUCTION MANUAL Balance INSTRUCTION MANUAL INSTRUCTION MANUAL E50S/3 INSTRUCTION MANUAL INSTRUCTION MANUAL INSTRUCTION MANUAL INSTRUCTION MANUAL...
Page 3 E’ vietata qualsiasi forma di stampa, duplicazione, riproduzione o pubblicazione di questo manuale, o parte di esso, senza l’autorizzazione scritta da parte della GIBERTINI ELETTRONICA Srl. All rights reserved. Forbidden any form of print, duplication, reproduction and publication of this manual, or part of it, without the written agreement of GIBERTINI ELETTRONICA Srl Todos los derechos reservados.
Page 4 Max 225g d= 0.1mg Max 100g d= 0.01mg...
Page 5: Table Of Contents
Semi-micro balance Mod. E50S/3 INDEX INDEX ................................1 IMPORTANT WARNINGS ..........................2 1 Control panel and visualisation ........................3 2 Below-balance weighing ..........................4 3 Introduction ..............................5 3.1 Useful tips on the Operating Instructions ....................5 3.2 Warranty card ............................5 3.3 Conformity ..............................
Page 6: Important Warnings
11. Always clean the instrument after use to avoid subsequent inaccuracies and/or damage to the equipment. 12. Gibertini Elettronica s.r.l. does not accept any legal liability for damages or other consequences due to mishandling of the instrument or its accessories.
Page 7: Control Panel And Visualisation
Semi-micro balance Mod. E50S/3 1 Control panel and visualisation Description Prefix display Weight display Unit display Weight check Symbol display ON / OFF key Menu / ESC key Tare / Insert key Info display and bar-graph Cursor keys Print key...
Page 8: Below-Balance Weighing
Semi-micro balance Mod. E50S/3 2 Below-balance weighing Objects that, because of their size or shape, cannot be put on the scale, can be weighed by means of below- balance weighing. Proceed as follows:  Turn off the balance.  Remove the scale-pan and the scale-pan support and turn the balance around.
Page 9: Introduction
E50S/3 balances are simple and functional to operate. The versatile weighing programs allow you to use the E50S/3 balances not only for simple weighing procedures but also in a simple manner for carrying out various weighing applications such as, for example, percentage or component counting weighings and document the measurements obtained accurately and unequivocally.
Page 10: Safety
If liquid is spilt on the balance, the latter must immediately be unplugged from the mains electricity supply (pull out power adaptor). The balance may only be operated after it has first been re-checked by a Gibertini Service technician. ...
Page 11: Set Up
(see chapter 5.3 "Storage")  Read through these operating instructions, even if you already have experience with Gibertini balances, before you work with the balance and pay attention to the safety recommendations. (see chapter 6 "Safety")
Page 12: Choosing A Suitable Location
Semi-micro balance Mod. E50S/3 5.4 Choosing a suitable location The balance location must be chosen in such a way as to guarantee perfect operation of your balance, so that the allowable ambient conditions and prerequisites are met and maintained: ...
Page 13: Dual Range
With the Dual Range balances, weighing is always first carried out in the fine range, which is 10 times more precise. When the fine range is exceeded the balance switches automatically into the coarse range. 5.9 Standardized balance Ask to the GIBERTINI Commercial Department. 5.10 Switching on the balance ...
Page 14: Operation
Semi-micro balance Mod. E50S/3 6 Operation The balance has two main menus available: the configuration menu and the application menu. The basic program of the balance is defined in the configuration menu. With this, you can either work with the basic configuration programmed ex-works, or define and store a user configuration adapted to your specific needs.
Page 15: Setting The Factory Configuration
Semi-micro balance Mod. E50S/3 6.1.2 Operation in the programming mode In the programming mode, the key symbols with a dark grey background apply to the Control Panel. Keys Designation Function in programming mode  «» «» Changes within the menu level «»...
Page 16 Semi-micro balance Mod. E50S/3 6.3.1 Activating the configuration menu  Press «ON/OFF» to switch the balance on.  Hold down the «ESC» key continuously during the start-up process (which takes about ten seconds) until “UNIT-1” appears in the display. ...
Page 17 Semi-micro balance Mod. E50S/3 Procedure for changing the weight unit: Display Step - - - - - - - -  Press repeatedly, until “UNIT-1” is displayed. « » UNIT-1 9 - - - - - - - - ...
Page 18 Semi-micro balance Mod. E50S/3 6.3.5 Calibration functions  CALIBRATION MODE OFF Closed EXTERNAL External EXT.-DEF. External with user-defined weight (“DEF. n.nnn g") INTERNAL with internal weight AUTO Automatic (AUTOCAL) DEF. 0.000 g Calibration weight for EXT.-DEF. mode AUTOCAL. TIME/TEMP. Auto-calibration on time and temperature...
Page 19 Semi-micro balance Mod. E50S/3 NOTE The value of the Floating Display is a function of the stability control and the balance location. For balance location, see chapter 5.4 "Choosing a suitable location" and see chapter 6.3.6 "Weighing mode". “STABILITY” The value set for the stability control depends on the quality of the balance location and must be correctly chosen in order to obtain optimum, reproducible results.
Page 20 NOTE If a power failure occurs, the timer continues running. If this does not happen, this indicates that the instrument’s backup battery has expired and has to be replaced by GIBERTINI Customer Service. 6.3.9 Anti-theft encoding The balance can be protected against theft by using a freely selectable, four-digit numerical code: ...
Page 21: Special Operating Keys
Semi-micro balance Mod. E50S/3 The procedure for changing the code is as follows: Display Step - - - - - - - - Press repeatedly, until “NEW CODE” appears.  « » new code 8 9 3 7 Set the new code as described above.
Page 22: Application Menu
Semi-micro balance Mod. E50S/3 6.4.2 The print key  Print out an individual value or a report Ensure that the balance is in the Weighing mode Briefly press «PRINT» The individual value or report will be printed out.  Reset product counter to 1 Ensure that the balance is in the Weighing mode Hold down «PRINT»...
Page 23 Semi-micro balance Mod. E50S/3 6.5.1 Activating the application menu  Press «ESC» after the start-up procedure has ended in order to access the application menu. 6.5.2 Selecting an application program  SELECT APPLICATION SET APP. OFF Normal weighing UNITS Different weight units...
Page 24: Application
Semi-micro balance Mod. E50S/3 7 Application 7.1 Units  SETUP APPLICATION UNITS UNITS UNIT-2 mg Milligram - - - - - - - - OFF not active UNIT-3 GN Grain - - - - - - - - OFF not active...
Page 25: Percent
Semi-micro balance Mod. E50S/3 Display Step 12.1596  « » Press until “COUNT” appears. COUNT The weight is recalculated in pieces (PCS) and displayed.  « » The reference quantity is set. The quantity shown is printed by pressing the «PRINT» key.
Page 26: Paper
Semi-micro balance Mod. E50S/3 In the program operation, the previously defined names of the keys appear over the function keys. After pressing a function key, the current measurement is converted in accordance with the factor assigned and the result shown or printed out after pressing the Print key.
Page 27: Sum
Semi-micro balance Mod. E50S/3 Retrieve the parameters: Display Step 0,0000 Show the info display.  « » Display the total of the added components. TOTAL 100,5790 g 0,0000  Display the remaining capacity. « » RES. CAP. 304,4210 g 0,0000 ...
Page 28: Animal
Semi-micro balance Mod. E50S/3 Retrieve the parameters: Display Step 8,58962 Show the info display.  « » Display the total of the added components. TOTAL 8,58962 g 8,58962  Display the remaining capacity. « » RES. CAP. 396,41038 g 8,58962 ...
Page 29: Statistics
Semi-micro balance Mod. E50S/3 8 Statistics  SET STATISTIC STATISTIC MODE OFF Statistics program off. STATISTIC Statistics only. RECORDER Data storage only. STAT./RECORDER Statistics and storage. COUNT 100 Number of values to be stored automatically (1..500). RECORDING MANUAL With «STO i» function key.
Page 30 Semi-micro balance Mod. E50S/3 Display Step 3,4770  « » Press until “STATISTIC” appears. STATISTIC 3,4770  Record a stable measurement. « » STO 0 3,4785  Record a second measurement. « » STO 1 3,4775  Record a third measurement.
Page 31: Check-Weighing
Semi-micro balance Mod. E50S/3 9 Check-Weighing  SET CHECK +/- CHECK +/- MODE ON/OFF Switch application on/off. NOM. 100.000 g Enter nominal weight. 120.000 g Define over limit. 80.000 g Define under limit. With the aid of the “CHECK +/-“ program you can check each measurement for its agreement with a defined reference-value plus/minus allowable deviations.
Page 32: User Profiles (Mum, Multiuser Memory)
Semi-micro balance Mod. E50S/3 10 User profiles (MUM, Multiuser Memory) 10 different user profiles can be saved. They can be protected against changes by means of a personal 4- digit password. A profile consists of the configuration and application settings.
Page 33: Changing The Password And Password Protection
Semi-micro balance Mod. E50S/3 The user is defined. Press «esc» to exit the menu. If there is a password set, it must be entered before making changes in the configuration and application menus. NOTE Make a note of your personal password.
Page 34: Data Transfer
Semi-micro balance Mod. E50S/3 11 Data transfer For data-transfers to peripheral devices, the balance is equipped with an RS232/V24-interface. Before the data-transfer, the RS232 interface must be matched with the one in the peripheral device in the balance configuration menu (see chapter 6.3.7 "Interface functions").
Page 35: Remote Control-Commands
Semi-micro balance Mod. E50S/3 • Standard, duplex connection with additional hardware handshake in the peripheral device Balance DB 9 female D25 / D9 Peripheral device RS 232 out 3 / 2 RS 232 in RS 232 in RS 232 out...
Page 36: Service
12.2 Error messages The balance shows a description of the fault in the info-line. NOTE If an error occurs without a description of the error in the info-line, a GIBERTINI Service Engineer must be called. Page 32 of 38...
Page 37: Calibration
Semi-micro balance Mod. E50S/3 12.2.1 Notes on correcting faults The following table shows faults and their possible causes. If you cannot clear the fault using the table, please contact a GIBERTINI Service Engineer. Fault Possible cause  Balance not switched on ...
Page 38 Semi-micro balance Mod. E50S/3 12.3.1 External calibration by means of ICM Depending on the type of balance, calibration weights in steps of 10 g, 50 g, 100 g and 500 g can be used, where the calibration weight must correspond to the precision of the balance.
Page 39: Automatic Repeatability Test (Art)
Semi-micro balance Mod. E50S/3 12.3.3 Internal calibration For internal calibration with the built-in calibration weight “SET CALIBRATION MODE INTERNAL” must be selected in the Configuration menu. (see chapter 6.3.5 "Calibration functions") Then proceed as follows:  Switch to “WEIGHING” with the «Change» key ...
Page 40: Menu Trees
Semi-micro balance Mod. E50S/3 13 Menu trees 13.1 Configuration menu tree  UNIT-1 UNIT-1  SET DATA PRINT AUTOSTART ON/OFF MODE UNSTABLE STABLE LOADCHANGE CONTINUOUS TIMEBASE TIMEBASE SET PRINTFORMAT DATE AND TIME ON/OFF BALANCE-ID ON/OFF PRODUCT-ID ON/OFF GROSS AND TARE...
Page 41 Semi-micro balance Mod. E50S/3  SET INTERFACE BAUDRATE 1200 2400 4800 9600 19200 PARITY 7-EVEN-1STOP 7-ODD-1STOP 7-NO-2STOP 8-NO-1STOP HANDSHAKE XON-XOFF HARDWARE  SET DATE AND TIME TIME [HH.MM.SS] DATE [DD.MM.YY] FORMAT STANDARD/US  THEFTCODE THEFTCODE - - - - THEFT-PROTECTION...
Page 42: Application Menu Tree
Semi-micro balance Mod. E50S/3 13.2 Application menu tree  SET APP. OFF Other applications available. UNITS Refer to the Application Operating Intructions for the COUNT description. PERCENT CALCULATOR PAPER NET-TOTAL ANIMAL etc.  SETUP APPLICATION Division depends on the current application.
