Specifications

Rated input voltage: 220-240Vac, 50Hz
Power range:
0-250W @ 220-240V LED
10-250W @ 220-240V INC, HAL
Type of load: led retrofit / incandescent-halogen
Frequency: 2,4 GHz, 868 / 915 MHz
Dimming: APP Control / Voice Control
Ambient temperature (Ta): -10°C~+40°C
Dimension: 80*48*27mm
Item weight: 70.6g
Protection: Overload (300W)

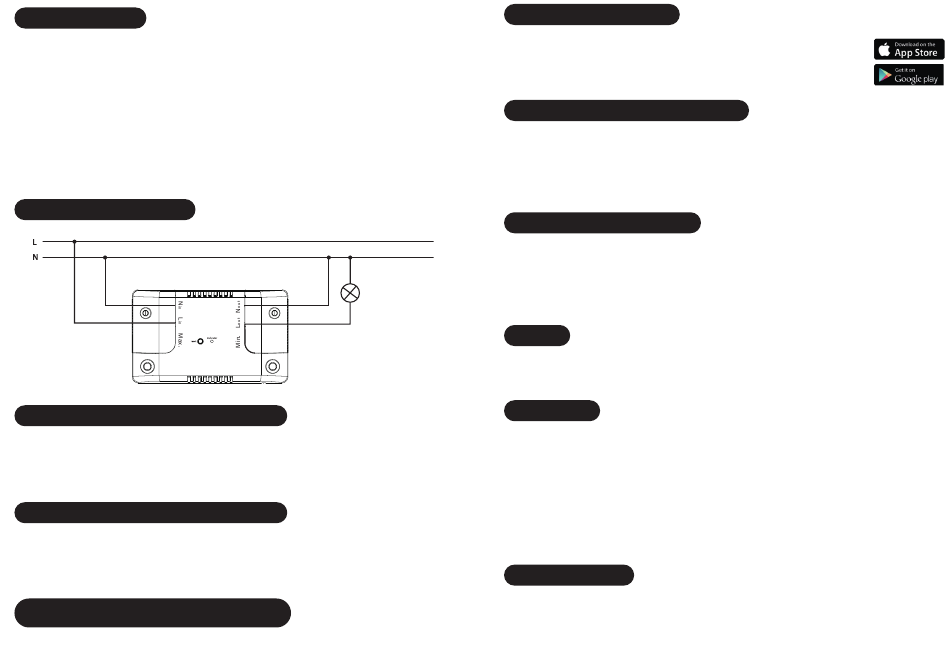

Connection diagram
Min. setting the light level
Switch on the lights via the App. Do the lights flash at the lowest dimming setting? Then
slowly turn the MIN potentiometer to the right for stable light. Is the light already stable?
Then slowly turn the MIN potentiometer to the left for even better dimmability, to just before
the point where the lamps start flashing. This is the best dimmability of the LED lamps.
Max. setting the light level
Switch on the lights via the App. Do the lights flash at the highest dimming setting? Then
slowly turn the MAX potentiometer to the left for stable light. Is the light already stable?
Then slowly turn the MAX potentiometer to the right for even better dimmability, to just be-
fore the point where the lamps start flashing. This is the best dimmability of the LED lamps.
Resetting Inline Dimmer
Press and hold the reset button for +/- 9 seconds. Then click 2x briefly on the reset button
for pairing mode.
COMPATIBLE HUB
• Homey • Amazon Alexa
• SmartThings • Wink
• Philips Hue • Homee
• Google Home • Futurehome
SUPPORT ZIGBEE CLUSTER
1) Input Cluster
- 0x0000: Basic - 0x0006
- 0x0003: Identify - 0x0008
- 0x0004:Groups - 0x0b05
- 0x0005: Scenes
Include to the network
1. Remove the dimmer from a previous Zigbee network if it has already been added to a Zigbee
network.
2. Press the reset button 3 times. The connected light source will flash 3 times, the indicator light
will now flash blue. When successful, the blue indicator light will stay on for 10 seconds. Time-
out 15 minutes.
Reset
All configuration will be reset after the device is reset or removed from the network.
1. Press the reset button 9x. The indicator light now turns red.
Touchlink
If the device is on a ZigBee network, remove the device before enabling TouchLink..
1. Press the reset button 5 times. The connected light source will flash 5x, the indicator light will
start flashing and light up for 10 seconds when pairing is successful. Time-out 3 minutes.
2. Bring the remote within 10cm of the Zigbee inline dimmer and follow the remote's manual to
put it into Touchlink mode. When pairing is successful, the connected light will flash 10x. The
indicator light on the dimmer will light continuously for 10 seconds.
Note:
a. When both devices (Dimmer and remote) are not included in the Zigbee Network, each dimmer can link with one remote max.
b. When both devices are included in the same Zigbee network, each dimmer can link with max 30 remotes.
Find and Bind
Make sure the device and remote are added to the same Zigbee network.
1. Press the reset button 7x. The connected light source will start flashing 7x, also the indicator
light will start flashing. Time-out 3 minutes.
2. Put the remote control in search and bind mode and activate the search and bind command.
Refer to the manual for instructions.
• Aduro Smart
• Trust Smart Home
2) Output Cluster
- 0x0019: OTA
