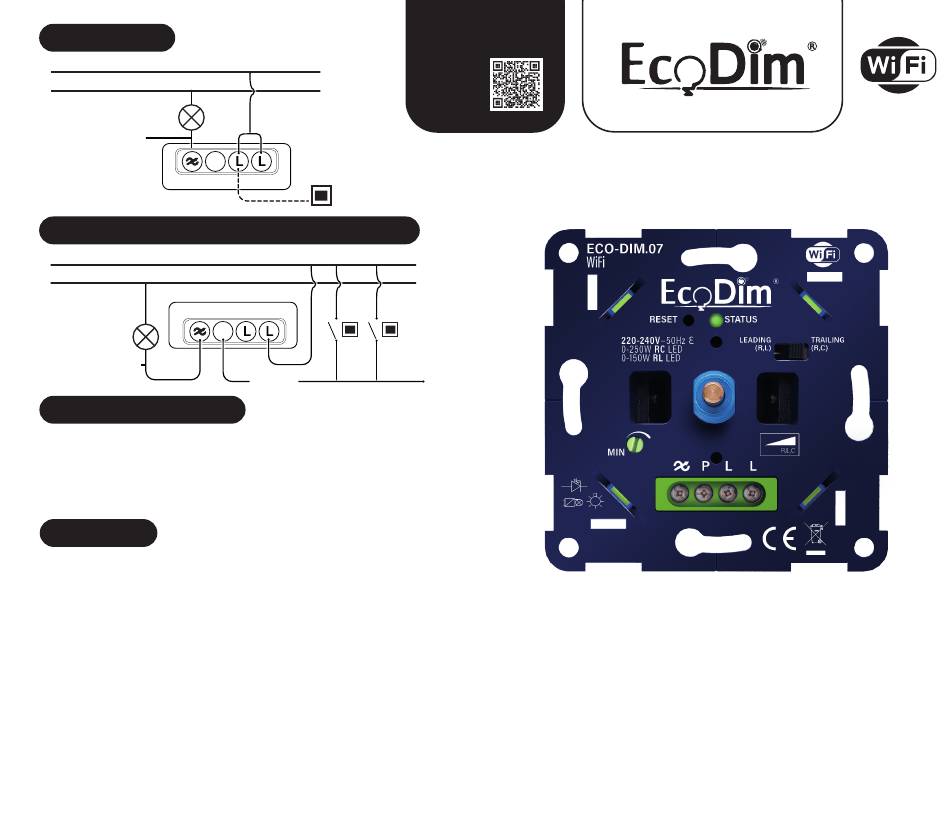

Wiring diagram
L wire
(Phase wire, often brown)
N wire
Neutral wire (often blue)
LED
LOAD
(Switching wire, often black)
P
DIMMER
Wiring diagram for (multiple) pulse switche(s)
L wire
(Phase wire, often brown)
N wire
Neutral wire (often blue)
DIMMER
P
LED
LOAD
(Switching wire, often black)
Setting min. light level
Turn on the lights using the dimmer shaft. Then turn the dimmer shaft as far as possible to
the left (minimum light output). Do the lights blink? Then use a screwdriver to slowly turn
the MIN potentiometer to the right for stable light. Is the light already stable? Then slowly
turn the MIN to the left for even better dimmability, until just before the point the lamps
start blinking. That is the best dimmability of these LED lamps.
Specifications
Connection voltage:
220-240VAC 50Hz
Frequency:
2,4 GHz
Dimming technology:
Phase on and phase off (R, L, C)
Dimmable LED lamps:
Phase cut-off 150W (LED)
Phase Cut-off 250W (LED)
Lamps with electronic transformers:
5-300W
Halogen and incandescent lamps:
5-300W
WiFI standard:
2.4GHz, 802.11b/g/n
WiFi frequency:
2.4GHz
WiFi transmission power:
20dBm(at 802.11b)
WiFi transmission distance:
max. 60m
•
Suitable for both retrofit lamp bulbs and new installations.
•
Two-wire connection - no neutral wire required.
•
Soft start system for longer LED lamp life.
•
Built-in protection for short circuit, temperature protection and overload.
Loop-through possible to
adjacent socket/switch.
OPTIONAL
EN
Manual
ECO-DIM.07 WiFi
Universal WiFi LED dimmer (R,L,C)
Note:
•
This is a two-wire dimmer and it should be connected as shown under the heading
'Wiring diagram' .
•
Installation of the dimmer on a 230V mains should be carried out by a qualified
professional, taking into account national regulations. Ensure that the electricity is
switched off during all work.
•
You cannot connect more than one dimmer in parallel. To then operate the same
load from two points.
•
Dimmer is not suitable for wound/magnetic or core transformers.
EcoDim B.V.
We, EcoDim B.V., hereby declare that this product conforms to the
Dr. Huber Noodtstraat 89
7001 DV, Doetinchem, Netherlands
(Imported by NJ Trading B. V .)
The full text of the EU declaration of conformity can be consulted
Made in China
Simplified EU Declaration of Conformity:
directives applicable from the European Union.
at the following internet address:
https://www.ecodim.nl/en/service/ecodim-certificering
