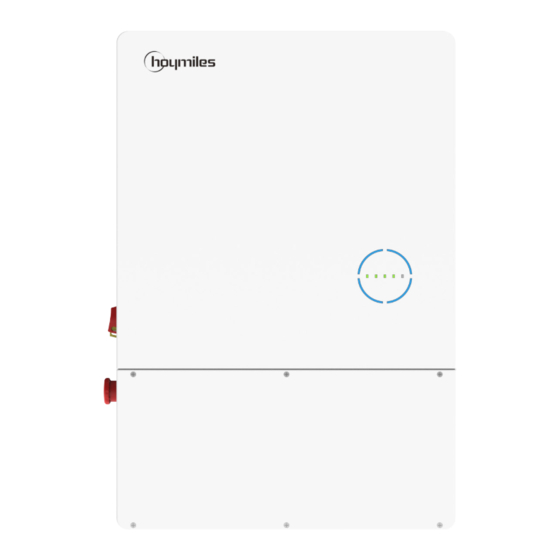

Hoymiles HYS-7.6LV-USG1 Quick Installation Manual
Single-phase hybrid inverter
Hide thumbs
Also See for HYS-7.6LV-USG1:
- Quick installation manual (17 pages) ,
- User manual (55 pages)
Subscribe to Our Youtube Channel
Related Manuals for Hoymiles HYS-7.6LV-USG1
Summary of Contents for Hoymiles HYS-7.6LV-USG1
- Page 1 Open Energy for All Single-phase Hybrid Inverter Quick Installation Guide HYS-7.6LV-USG1 HYS-9.6LV-USG1 HYS-11.5LV-USG1 Region: North America REV1.1 hoymiles.com...
-
Page 2: Packing List
Hybrid Inverter Quick Installation Guide 1 General Declaration • The information in this quick installation guide is subject to change due to product updates or other reasons. • This guide cannot replace the product labels or the safety precautions in the user manual unless otherwise specified. - Page 3 51 mm/2 in 18 mm/0.7 in PF3/4 PF3/4 58 mm/2.28 in 58 mm/2.28 in 58 mm/2.28 in 58 mm/2.28 in 97 mm/3.82 in Φ: Φ: 26.6 mm 33.8 mm 155 mm/6.1 in © 2023 Hoymiles Power Electronics Inc. All rights reserved.
-
Page 4: Mounting The Inverter
Hybrid Inverter Quick Installation Guide 4 Mounting the Inverter ≥300 mm ≥300 mm ≥200 mm ≥200 mm ≥15° ≥500 mm 203 mm/8 in 203 mm/8 in... -
Page 5: Wiring Diagram
Hybrid Inverter Quick Installation Guide 5 Wiring Diagram © 2023 Hoymiles Power Electronics Inc. All rights reserved. -
Page 6: Specification
Hybrid Inverter Quick Installation Guide 6 Recommended Cable List This data is the cable diameter recommended by Hoymiles, and for proper cable diameter, please refer to local laws and regulations and actual installation. Cable Specification Stripping Length (90℃/194℉, Copper) HYS-7.6LV-USG1 HYS-9.6LV-USG1 HYS-11.5LV-USG1 HYS-7.6/9.6/11.5LV-USG1... -
Page 7: Electrical Connection
PV1+ PV1- PV2+ PV2- PV1+ PV1- PV2+ PV2- N N N GRID 1. DC Switch 2. Rapid Shutdown Switch 3. PV Terminals 4. Communication Port 5. Grounding Bar 6. Battery Terminals 7. AC Terminals © 2023 Hoymiles Power Electronics Inc. All rights reserved. -
Page 8: Step 3 Battery Cable Connection
Hybrid Inverter Quick Installation Guide Step 2 PV Cable Connection PV1+ PV1- PV2+ PV1+ PV1- PV2+ PV2- BATT+ BATT- 14 mm (0.55 in) PV PV1- PV2+ PV2- N N N 14 mm (0.55 in) Step 3 Battery Cable Connection 8 mm/0.31 in 2 N·m 23 mm (0.91 in) 23 mm (0.91 in) -
Page 9: Step 5 Communication Cable Connection
GRID N N N GRID llel llel 8-485A_2 8-485A_2 8-485B 7-485A 7-485B_2 7-485B_2 6-485A_1 6-485A_1 6-NC 5-485B_1 5-485B_1 5-CANL 4-CANL 4-CANL 4-CANH 3-CANH 3-CANH 3-NTC- 2-NC 2-NC 2-NC 1-NC 1-NC 1-NTC+ © 2023 Hoymiles Power Electronics Inc. All rights reserved. - Page 10 Hybrid Inverter Quick Installation Guide Label Description Parallel (CANH, CANL, 485A_1, For parallel operation. 485B_1, 485A_2, 485B_2) For Li-ion battery, communication is via CAN or RS-485. BMS (NTC+, NTC-, CANH, CANL, For lead-acid battery, temperature is monitored via 485A, 485B) sensor through NTC+ and NTC-.
-
Page 11: Ethernet Connection
0.8-1.5 N·m 1-TX+ 0.5-0.8 N·m Step 6 Installing the Wiring Box Cover After the wires are firmly and correctly connected, install the wiring box cover. N N N GRID 1.2 N·m © 2023 Hoymiles Power Electronics Inc. All rights reserved. - Page 12 8 DTS Online Setting GRID 1. Search “Hoymiles” in the App Store (iOS) or the Play Store (Android), or scan the QR code to download the Hoymiles Installer App. 2. Open the App and log in with your installer account and password. For new Hoymiles installers, please apply for an installer account from your distributor in advance.
- Page 13 4. Network configuration. (a) Upon successful connection, click on “Network Config” again and access the Network Configuration page. (b) Select the router Wi-Fi and enter the password. (c) Click on “Send to DTU”. © 2023 Hoymiles Power Electronics Inc. All rights reserved.
- Page 14 Hybrid Inverter Quick Installation Guide 5. Check the DTS indicator for a solid blue light, which signifies a successful connection. The network configuration takes about 1 minute, please be patient. If the network is not connected, please check the internet as instructed. 9 System Commissioning of Wireless Access Point (AP) Connection 1.
- Page 15 GEN port is “PV Generator” or “Diesel Generator”, and then click “Save”. (The default option is “None”.) 3. Click on “O&M → Toolkit”, access the Overview page and click the “Self-check”. The self check can be completed after PV, battery, grid, EPS and GEN are properly connected. © 2023 Hoymiles Power Electronics Inc. All rights reserved.
- Page 16 User Manual in the QR code or at www.hoymiles.com/resources/download/ Hoymiles Power Electronics Inc. Add: Floor 6-10, Building 5, 99 Housheng Road, Gongshu District, Hangzhou 310015, P. R. China Tel: +86 571 2805 6101 Email: service@hoymiles.com support@hoymiles.com AP040812 www.hoymiles.com...
