Summary of Contents for CYC Motor DS103
- Page 1 DS103 DISPLAY User Guide CYC MOTOR support@cycmotor.com +952 3690 8938...
-
Page 2: Table Of Contents
DS103 Display User Guide TABLE OF CONTENTS DS103 Display User Guide ..............2 Product Details ........................... 2 Dimensions & Materials........................2 Quick Start Guide ..........................3 Functionalities ............................ 4 Trip Mode ............................6 Switch Dashboard .......................... 6 Assist Levels Select ......................... 7 Dark &... -
Page 3: Ds103 Display User Guide

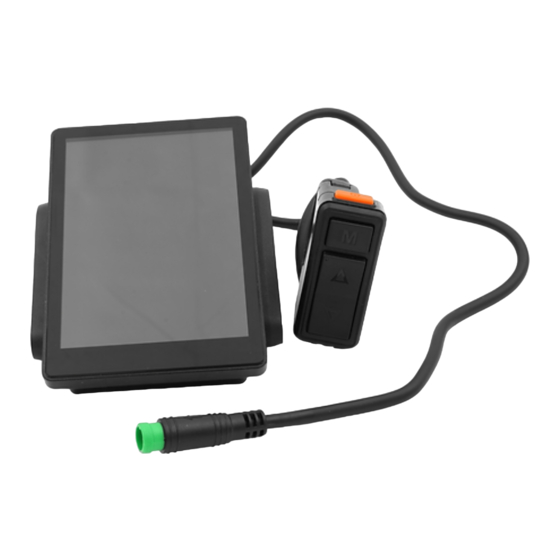

DS103 Display User Guide DS103 Display User Guide Product Details Intelligent LCD display, model: DS103 Firmware: CYCMOTOR LTD specific firmware Features • Simple and lightweight, separate installation bracket design • High brightness, high contrast 3.5 coloured TFT screen • Clock function (clock is on when the display shutdown) •... -
Page 4: Quick Start Guide
Waterproof level: IP65 Quick Start Guide After unboxing and installing your CYC motor system, there are two main things you need to set 1. Change your Battery No. settings according to your rated voltage. Upon startup, long press the MENU button within 15 seconds to access the SETTINGS page. Press UP/DOWN to navigate the settings page &... -
Page 5: Functionalities
DS103 Display User Guide 2. Change your Wheel settings according to your bike’s wheel size. 3. You can now set up parameters like temperature and the speed unit as well as the brightness level! Functionalities Press and hold the POWER button for 3 seconds to turn the display on/ off. - Page 6 DS103 Display User Guide Settings Upon startup, long press the MENU button within 15 seconds to enter the SETTINGS page. Note that once the system is activated for longer than 15 seconds, the motor system will require a restart to enter the settings menu.
-
Page 7: Trip Mode
DS103 Display User Guide Trip Mode Upon startup, long press the MENU button within 15 seconds to access the SETTINGS page, then select TRIP MODE to swap between STREET and RACE mode. Switch Dashboard Switch the main dashboard to display different information by pressing the MENU button. -
Page 8: Assist Levels Select
DS103 Display User Guide Assist Levels Select Press the UP/DOWN button to change between assist levels while riding. Note that “OFF” means no motor assistance will be given. There are 3 sets of assist levels; 3, 5 & 9. To change the assist levels set, long press the MENU button upon within 15 seconds upon startup and access ALL GEAR in the main settings page. -
Page 9: Dark & Light Themed Dashboard
DS103 Display User Guide Dark & Light Themed Dashboard Upon startup, long press the MENU button within 15 seconds to access the SETTINGS page, then select THEME to change between light and dark themed dashboards. Walk Assist Hold in the DOWN button to activate walk assist. Please note it takes 3 seconds to activate & will deactivate immediately when the button is released. -
Page 10: Error Codes
DS103 Display User Guide Error Codes In certain circumstances, an error code may appear on your display. Contact us for assistance. Error Code on App & DS103 Display Controller Over Voltage Controller Under Voltage Controller Over Temperature Hall Sensor Error... -
Page 11: Compatibility
DS103 Display User Guide Compatibility The clamps are suitable for 3x different handlebar sizes: 31.8mm, 25.4mm & 22.2mm. Pin Layout Male 5-Pin Connector Red Wire: Anode (36V to 72V) 2. Black Wire: GND Yellow Wire: TxD (display -> controller) Green Wire: RxD (controller ->...
