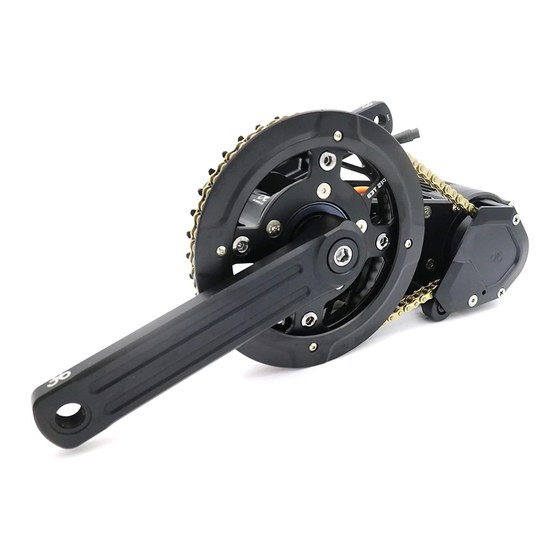

- Page 1 X1 Stealth User Manual...
-
Page 2: Table Of Contents
TABLE OF CONTENTS SAFETY & PRECAUTION INSTALLATION Required Tools General Safety Operating Notice Before the Ride Magnetic Battery Mount for Controller Installation & Use Adjusting the Width of the Bottom Bracket Disclaimer Installation of 63/ 73 & 83mm version Installation of BB92 version Wiring &... -
Page 3: Safety & Precaution
This product only complies with local, state, and federal regulations if speed limits are set accordingly. Ensure that you have set up your X1 Stealth kit according to your local, state, and federal regulations when using and registering this drive unit on a public... -
Page 4: Installation & Use
CYC Motor Ltd will not be held liable for any losses and/or gear related failure. damages in connection with the use of this product. The use of this product is at the user’s own risk. -
Page 5: Specifications
SPECIFICATION Description This product is a high-powered electric bike (ebike) drive unit kit which includes a programmed control unit and peripherals. This product is designed to be installed as a conversion system to convert standard bicycles into electric bicycles. Specifications Rated Voltage 36- 72V (normal) (10- 20S batteries) -
Page 6: Parts List
SPECIFICATION Parts List X1 Stealth Motor System ASI BAC855 controller 500c or 750c APT Colour Display Thumb, Half-Twist or Full throttle (with water sealed adaptor cable) 2mm (2pcs) Magnetic Speed Sensor Bottom Bracket Spacers Magnetic Brake Sensor Extension Wire for Controller... -
Page 7: Dimensions
SPECIFICATION Dimensions BSA Threaded 83mm Version 74mm 202mm 140mm/ 165mm/ 190mm 135.5mm 165mm/ 170mm 22mm 115.5mm 83mm 190mm For BSA Threaded 68mm & 73mm Version: Bottom Bracket Spacers (3/ 5/ 7mm) needs to be added. (Refer to 03-Installation: Adjusting the Width of Bottom Bracket) Add spacers where necessary... -
Page 8: Bb92 Version
SPECIFICATION Dimensions BB92 Version 74mm 202mm 140mm/ 165mm/ 190mm 135.5mm 165mm/ 170mm 22mm 115.5mm 92mm 190mm Bottom Bracket Spacers (2mm x2pcs) included if necessary... - Page 9 ASI BAC855 Rated Voltage 36V - 72V Max. Input Current Bluetooth Mobile App CYC MOTOR (BAC) App for iOS & Android Mounting Position Integrated between Bottom Bracket/ Mounted Separately Gearbox First Stage Reduction Ratio 1: 6 Planetary Gear Harden Steel Sun & Ring Gear...
-
Page 10: Installation
INSTALLATION Required Tools Hex Keys ( 2.5mm & 10mm) Adjustable Wrench Crank Puller Press Fit Bottom Bracket Removal Tools Ø44mm, 16 Notch Bottom Bracket Tool 20 spline bottom bracket tool Only for BB92 version... -
Page 11: Operating Notice
Adjusting the Width of Bottom Bracket RIGHT-HAND and LEFT-HAND sides are determined by the bike In order for the X1 Stealth to fit on various different widths of handle; Right-hand corresponds to the right handle. bottom brackets, there are several spacers that come with the kit. - Page 12 INSTALLATION *68mm bottom brackets require a 7mm and a 5mm spacer on the *73mm bottom bracket requires a 7mm & 3mm spacer on the left left (non-drive side) and a 3mm spacer on the right (drive side) as (non-drive side) and no spacer on the right (drive side) as shown. shown.
-
Page 13: Installation Of 63/ 73 & 83Mm Version
INSTALLATION Installation of 68/73/83mm version Line up the motor body with your bike at the bottom bracket. For a 68mm bottom bracket width, place the 3mm spacer between the mounting brackets & the bottom bracket shell as needed & shown on previous page. For 73mm & 83mm bottom bracket widths, no spacer is needed. - Page 14 INSTALLATION Installation of 68/73/83mm version Remove the right (drive side) bottom bracket cap & the front chain ring cover. Place the chain over the outer chain ring (note that the bike's chain ring will be placed on the inner chain ring & hang the chain ring with the chain over the spindle.
-
Page 15: Installation Of Bb92 Version
INSTALLATION Installation of BB92 version Line up the motor body with your bike at the bottom bracket. Insert the right (drive side) bottom bracket cup through the hole on the right mounting plate into the bike’s bottom bracket shell. Use press-fit bottom bracket tool to insert. If any spacers are needed, place the spacer/s between the bracket &... - Page 16 INSTALLATION Installation of BB92 version Remove the right (drive side) bottom bracket cap & the front chain ring cover. Place the chain over the outer chain ring (note that the bike's chain ring will be placed on the inner chain ring & hang the chain ring with the chain over the spindle.
- Page 17 INSTALLATION Mounting the Hanger Step 2 Step 1 Position the hanger over the bike's frame & screw in the hanger Place 1 of the aluminium joints on the inside of the brackets & to the aluminium joint loosely. screw in the bolt to attach it to the motor's mounting plate. Step 3 Step 4 Place the 2nd aluminium joint on the other side of the...
-
Page 18: Wiring & Connection
INSTALLATION Wiring & Connection 1-2 Wiring Harness 3Pins wire 8Pins Harness Connector 5Pins wire 1-4 Wiring Harness P1(8Pins) wire length: ≈300mm 3Pins wire ≈116mm P2(3Pins) wire length: ≈200mm 5Pins wire ≈112mm 8Pins Harness Connector XT90 XT90 3Pins wire ≈120mm (Female) (Male) P3(6Pins) wire length: ≈130mm 3Pins wire ≈116mm... -
Page 19: Mobile App & Display
MOBILE APP & DISPLAY Kindly download the display & mobile app user manuals from the link below or scan the QR code. All materials listed below are freely available for download on the CYC website. https://www.cycmotor.com/x1-pro-gen-2#comp-kkxfisjz Included in this link: Brochure User Manual Mobile App Guide... -
Page 20: Quick Start
QUICK START STEP 1 Ensure that all wires are properly connected & that your system can switch on by long pressing the display’s power button. Check that the display shows your battery voltage & level. Should your display briefly show Error 30H upon start-up, this is normal as the system takes a moment to connect. -
Page 21: Maintenance
MAINTENANCE You are advised to regularly maintain, clean and check the status Do not attempt to replace the X1 PRO parts with the parts that have of the bike and motor system as dirt will accumulate throughout been found at a local bicycle store as the materials used in the the rides and additional strain will be taken by the drive train due drive unit are specifically designed for their purposes. - Page 22 MAINTENANCE Torque Requirement for Bolts X1 Stealth_Right View (Drive Side) X1 Stealth_Left View (Non-Drive Side) Listing Component Name Torque Requirement Crank Arm Bolts 25- 30 N.m. Motor Mounting Bolts 4- 5 N.m. Chain ring Bolts 5 N.m.
-
Page 23: Terms & Conditions
We offer a 1-year warranty for the battery and charger. Man-made failure and other parts are excluded from our warranty. support@cycmotor.com For any replacement parts, please visit the CYC Motor Ltd official For customer support, including online store at www.cycmotor.com/shop or an official product shipping;... - Page 24 NOTES...
- Page 25 https://www.cycmotor.com/...
