Summary of Contents for CYC Motor DS103
- Page 1 DS103 DISPLAY User Guide CYC MOTOR support@cycmotor.com +952 3690 8938...
-
Page 2: Table Of Contents
DS103 Display User Guide TABLE OF CONTENTS DS103 Display User Guide ..............2 Product Details ........................... 2 Dimensions & Materials ........................2 Quick Start Guide ..........................3 Functionalities ............................ 4 Error Codes ............................7 Installation ............................7 Pin Layout ............................8 Certification ............................ -
Page 3: Ds103 Display User Guide

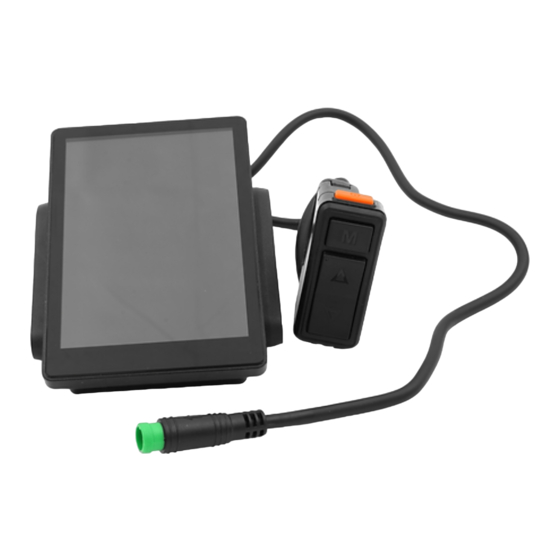

DS103 Display User Guide DS103 Display User Guide Product Details Intelligent LCD display, model: DS103 Firmware: CYCMOTOR LTD specific firmware Features • Simple and lightweight, separate installation bracket design • High brightness, high contrast 3.5 coloured TFT screen • Clock function (clock is on when the display shutdown) •... -
Page 4: Quick Start Guide
Waterproof level: IP65 Quick Start Guide After unboxing and installing your CYC motor system, there are two main things you need to set 1. Change your Battery No. settings according to your rated voltage. Within 15 seconds of turning on your display, long press the MENU button to enter the settings functions. -
Page 5: Functionalities
DS103 Display User Guide 2. Change your Wheel settings according to your bike’s wheel size. 3. You can now set up parameters like temperature and the speed unit as well as the brightness level! Functionalities Press and hold the POWER button for 3 seconds to turn the display on/ off. - Page 6 DS103 Display User Guide Switch Dashboard Switch the main dashboard to display different information by pressing the MODE button. Assist Level Operating Press the UP/DOWN button to change the assist level between level 1, 2, and 3. Note that “OFF”...
- Page 7 DS103 Display User Guide Walk Assist Hold in the DOWN button to activate walk assist. Please note it takes 3 seconds to activate & will deactivate immediately when the button is released. Settings Long press the MODE button within 15 seconds of switching on the display to enter the “Settings”...
-
Page 8: Error Codes
DS103 Display User Guide Error Codes In certain circumstances, an error code may appear on your display. Contact us for assistance. Error Code on App & DS103 Display Controller Over Voltage Controller Under Voltage Controller Over Temperature Hall Sensor Error... -
Page 9: Pin Layout
DS103 Display User Guide Compatibility The clamps are suitable for 3x different handlebar sizes: 31.8mm, 25.4mm & 22.2mm. Pin Layout Male 5-Pin Connector Red Wire: Anode (36V to 72V) Black Wire: GND Yellow Wire: TxD (display -> controller) Green Wire: RxD (controller ->...
