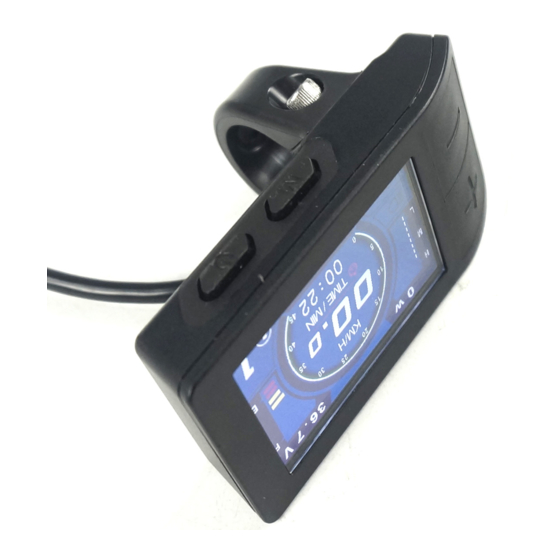

- Page 1 APT 500c Display User’s Guide...
-
Page 2: Table Of Contents
APT 500C DISPLAY APT 500c Display User’s Guide PRODUCT SPECIFICATIONS ..........................2 ............................2 LECTRICAL ARAMETERS & M ............................2 IMENSIONS ATERIALS ................................2 EATURES MAIN FUNCTIONALITIES ..........................3 ..............................3 OWER ............................... 3 WITCH ............................4 SSIST EVEL PERATING &... -
Page 3: Product Specifications
APT 500C DISPLAY Product Specifications Electrical Parameters • 2.2inch IPS screen • 24V/36V/48V/52V battery supply • Rated operating current : 40mA • Off leakage current < 1uA • Max output current to controller : 100mA • Operating temperature : -20 – 70 °C •... -
Page 4: Main Functionalities
APT 500C DISPLAY Main Functionalities DOWN POWER MENU Power On/ Off Press and hold the POWER button for 1 second to turn the display on/ off. The display will automatically shut down when there is no operation for a period of time. -
Page 5: Assist Level Operating
APT 500C DISPLAY Assist Level Operating Short press UP/ DOWN button to change the assist level. The top assist level is 9 where 0 is neutral. The amount of assist levels can be adjusted according to the user’s preference. Speed & Mileage Display Switch Short press MENU button to change the speed &... -
Page 6: Parameter Settings
APT 500C DISPLAY Parameter Settings Button Navigation Long press the MENU button to get into the settings menu (also to exit settings menu). Hold press for at least 2 seconds. Press the UP/DOWN buttons to change between the parameters, MENU button to select, &... -
Page 7: Advanced Settings
APT 500C DISPLAY Auto off Press UP/DOWN button to change the auto power off time. This can be set between 1 to 9 minutes or off. Battery Press UP/DOWN button to change your battery voltage. This can be set to from 24V to 52V. - Page 8 The power output will distribute evenly across the chosen number of assist levels (or gears) according to the Assist Level Configuration, Speed Limit Assist, and Axle Torque Sensor Assist settings on your CYC Motor (BAC) mobile app: Note that the Assist Levels shown above in the app, can be customized.
-
Page 9: Error Codes
APT 500C DISPLAY Error Codes In certain circumstances, an error code may appear on your display. Refer to the CYC Motor (BAC) mobile application user guide for instructions on how to clear the errors. Error Code Description Error 21H Instantaneous phase overcurrent... -
Page 10: Certification
Ensure that your pedal assist & throttle are working correctly. To test this, connect to the CYC Motor (BAC) mobile app & change to Assist Level 0 on your display. You can test the PAS by looking at the app’s dashboard &...
