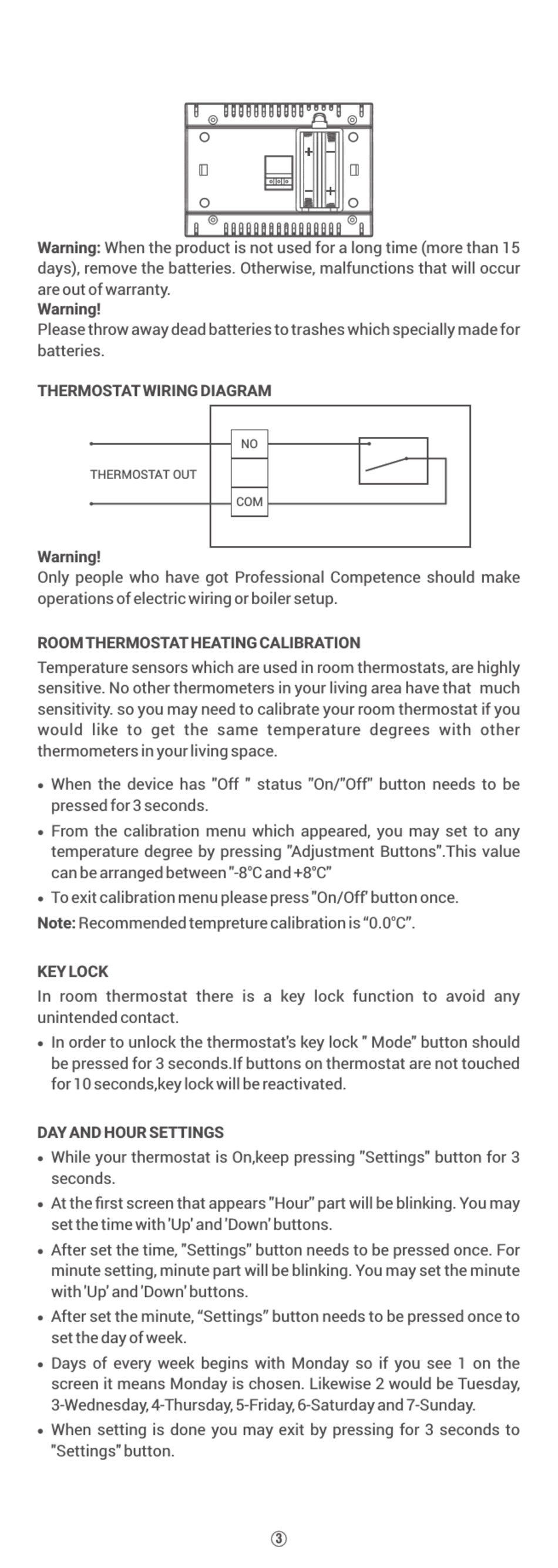

Thermostat Wiring Diagram - GENERAL LIFE isipark HT300 User Manual

Warning: When the product is not used for a long time (more than 15
days), remove the batteries. Otherwise, malfunctions that will occur
are out of warranty.
Warning!
Please throw away dead batteries to trashes which specially made for
batteries.

THERMOSTAT WIRING DIAGRAM

THERMOSTAT OUT
Warning!
Only people who have got Professional Competence should make
operations of electric wiring or boiler setup.
ROOM THERMOSTAT HEATING CALIBRATION
Temperature sensors which are used in room thermostats, are highly
sensitive. No other thermometers in your living area have that much
sensitivity. so you may need to calibrate your room thermostat if you
would like to get the same temperature degrees with other
thermometers in your living space.
When the device has ''Off '' status ''On/''Off'' button needs to be

pressed for 3 seconds.
From the calibration menu which appeared, you may set to any

temperature degree by pressing ''Adjustment Buttons''.This value
can be arranged between ''-8 C and +8 C''
To exit calibration menu please press ''On/Off' button once.

Note: Recommended tempreture calibration is "0.0 C".
KEY LOCK
In room thermostat there is a key lock function to avoid any
unintended contact.
In order to unlock the thermostat's key lock '' Mode'' button should

be pressed for 3 seconds.If buttons on thermostat are not touched
for 10 seconds,key lock will be reactivated.
DAY AND HOUR SETTINGS
While your thermostat is On,keep pressing ''Settings'' button for 3

seconds.
At the first screen that appears ''Hour'' part will be blinking. You may

set the time with 'Up' and 'Down' buttons.
After set the time, ''Settings'' button needs to be pressed once. For

minute setting, minute part will be blinking. You may set the minute
with 'Up' and 'Down' buttons.
After set the minute, "Settings" button needs to be pressed once to

set the day of week.
Days of every week begins with Monday so if you see 1 on the

screen it means Monday is chosen. Likewise 2 would be Tuesday,
3-Wednesday, 4-Thursday, 5-Friday, 6-Saturday and 7-Sunday.
When setting is done you may exit by pressing for 3 seconds to

''Settings'' button.
NO
COM
o o
3
o
