GENERAL LIFE HT100S RF - Digital Room Thermostat Manual

GENERAL SPECIFICATIONS

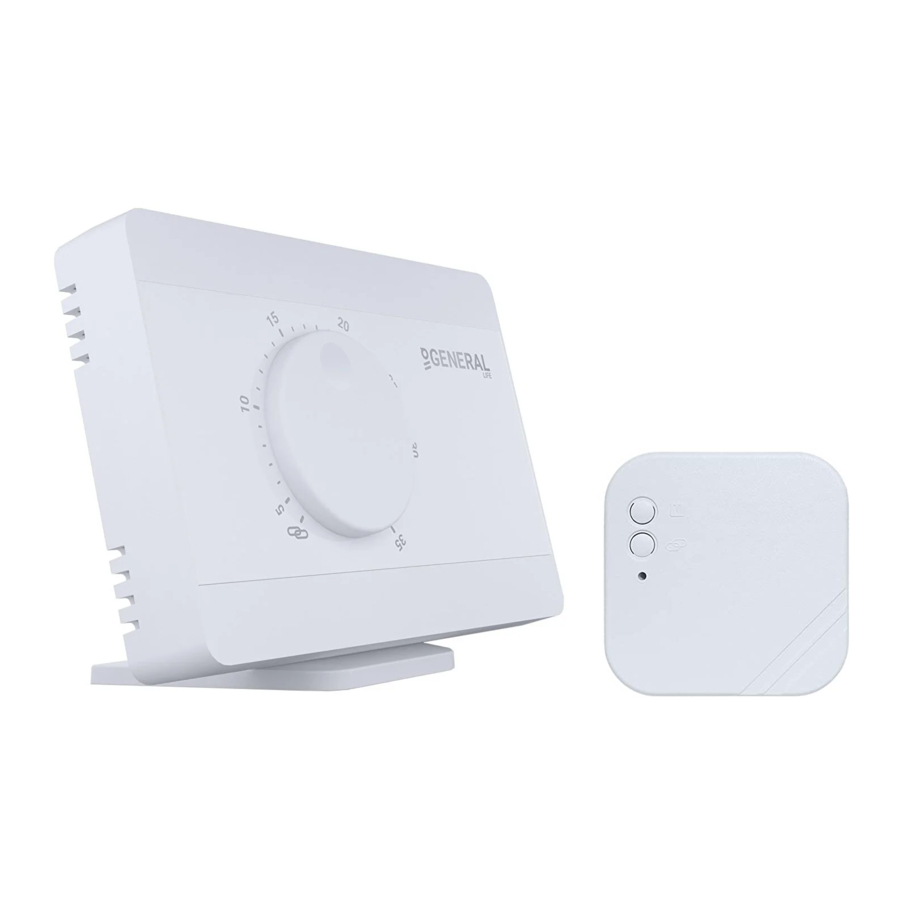

HT100S RF is a wireless room thermostat. The user can adjust the room temperature with the required temperature and get more comfortable and economic heating.

• Precise Temperature Measurement
• ON/OFF Control
• Wireless Connection
• TPI Algorithm

DEVICE AND EQUIPMENTS

TECHNICAL DATA

Room Thermostat

Receiver

ROOM THERMOSTAT

Room Thermostat Indicator LED Descriptions

RECEIVER

1. 1-Manual Operation Button:
   By disabling the Receiver, it enables you to use your boiler manually.
2. Pairing Button:
   Allows to pair the Receiver with the Room Thermostat.
3. Receiver LED Light
4. Receiver Power Cable Input
5. Boiler Connection Cable Input

RECEIVER LED DESCRIPTIONS

ROOM THERMOSTAT PLACEMENT

Room Thermostat needs to be placed in the room which is used most frequently. For instance; living room or lounge. Placing the Room Thermostat in a spot that have air circulation like entrance of a room or side of window should be avoided. Also anywhere close to heating units such as radiator, stove and spots which get direct sun lights would not be suitable. Room Thermostat needs to be located above the floor 150 cm height. Few trials may be made to find the most convenient spot.

BATTERY PLACEMENT

As shown in the picture above, press the screwdriver forward from the space shown, bend the tabs and separate the front cover. Insert 2 new AAA alkaline batteries in the battery housing with the correct battery direction. Replace both batteries at the same time. Then align the front part of your Room Thermostat to the back and squeeze it towards the back.

When the product is not used for a long period (more than 15 days), remove the batteries. Otherwise, malfunctions that may occur would be out of warranty.
Please throw your dead batteries into the waste bin for batteries.

RECEIVER PLACEMENT

The important things to note for the Receiver placement is avoiding physical contact between the Receiver and boiler, and protecting it against materials such as liquid, dust etc.

The devices should be placed in order to minimize the damage to the received and transmitted signals by paying attention to the following points;

• The devices should not be mounted on metal surfaces.
• The devices should not be installed close to electrical cables and electronic equipment such as computers and television units.
• The devices should not be installed near large metal structures or other building materials using fine metal meshes such as special glass or special concrete.
• Distance between the Room Thermostat and the Receiver should not exceed 20 meters or 2 floors.
• Receiver must be installed at least 50 cm away from the boiler.

RECEIVER SETUP

• First, shut down your boiler and your boiler's power source with all electrical current (fuse, socket etc.)
• As shown in the connection diagram, connect one end of the boiler connection cable to the COM and the other to the NO input.of the Receiver.
• Connect the other ends of the cable -which you connected to the Receiver- to room thermostat connection terminal as shown in your boiler's user manual.
• You must first connect the Receiver power cable to the Receiver and then to the fuse to which the boiler is connected.
• After completing the cable connection process, firstly turn on your fuse and then your boiler.
• By pressing the Receiver's manual usage button for 2 seconds, you should see the Orange Light blinking on the Receiver. In this way, after making sure that the boiler is operating, press the same button again for 2 seconds and see that the Orange LED turns off.
• Set up the Room Thermostat to pair the Receiver with the Room Thermostat.

RECEIVER WIRING DIAGRAM

Operations inside the boiler or related to the electrical installation must be carried out by persons with professional competence.

PAIRING THE ROOM THERMOSTAT AND THE RECEIVER

• Keep pressing the Receiver's pairing button for 2 seconds and see that the LED on the Receiver is blinking green.
• Turn the Room Thermostat button to the " " ( pairing) symbol.
• The LED of the Room Thermostat will blink 3 times.
• If the pairing is successful, the green flashing LED on the Receiver will be steadily lit.
• Receiver and Room Thermostat have now been synced.

TPI ROOM THERMOSTAT WORKING LOGIC

Your Room Thermostat works with the TPI algorithm in the heating option. Room Thermostats using TPI technology predict when the temperature of your home will rise above or below the set temperature and turn the heating unit on and off accordingly. This ensures that your home stays at the temperature you set without maximum deviations up and down.

• What is TPI?
  TPI technology is designed to ensure that you get the best possible energy efficiency from your heating system. It measures and applies the best possible timings to deliver and maintain your home at the set temperature level.
• How does TPI work?
  Thanks to the advanced artificial intelligence technology found in the software, it adapts to the temperature change of the environment in which it is located. By creating a general temperature map of your home, it learns how long it takes to reach the desired room temperature and how to maintain this temperature. In this way, it provides minimum energy consumption by calculating how long your heating unit should work for.
• What is the difference?
  In non-TPI room thermostats, the heating unit works and stops continuously until it exceeds the set temperature value. If the set temperature drops below a certain amount, the heating unit will work again. This creates greater temperature fluctuations and less energy control. TPI Room Thermostats, on the other hand, provide higher savings and comfort compared to On/Off room thermostats with the advantages it has.

TPI ROOM THERMOSTAT WORKING GRAPHIC

Your Room Thermostat sends the last status signal to the Receiver every 10 minutes. Thus, your Room Thermostat and Receiver work synchronously. If the signal cannot reach to the Receiver from the Room Thermostat for 22 minutes, it perceives that the connection is broken and stops the boiler operation for safety reasons. Likewise, in cases where the electricity comes back after a power failure, the Receiver do not operate the boiler until 'operate' signal reaches from the Room Thermostat.

However, in this case, if the Room Thermostat continues to operate normally, it will continue to work properly without any need for intervention since it sends a status signal to the Receiver every 10 minutes.

WHAT TO KNOW ABOUT TPI ROOM THERMOSTAT

• If the placement of the TPI Room Thermostats is changed, the learning process will restart. The learning process should be considered as 7 days.
• If the TPI Room Thermostats are de-energized (battery replacement), the learning process will restart. The learning process should be considered as 7 days.

FREQUENTLY ASKED QUESTIONS

Is my Room Thermostat compatible with my boiler

If your boiler has on-off connections, your Room Thermostat is compatible. You can learn the information about your boiler from the boiler user manual or your boiler service.

How will I connect my boiler with my Receiver

We recommend that the connection between your Receiver and your boiler should be made by professionally qualified persons. 2x0.75 mm cable is sufficient for the Receiver - boiler connection. Connect one end of the cable pair to the room thermostat connection terminals stated in the user manual of your boiler.
Connect the other end of the cable pair to COM and NO inputs of the terminal inside the Receiver as shown in the "RECEIVER WIRING DIAGRAM" section.
The direction of the cable ends does not matter.
