- Page 1 DIGITAL ROOM THERMOSTAT HT270 SET Wireless Room Thermostat Large LCD Backlight Display Daily and Weekly Program Touch Keys Key Lock Battery Indicator On-Off Control Product Code HT270 SET Data sheet V. No v.1.0 generallife.com.tr...
-
Page 2: Mechanical Design

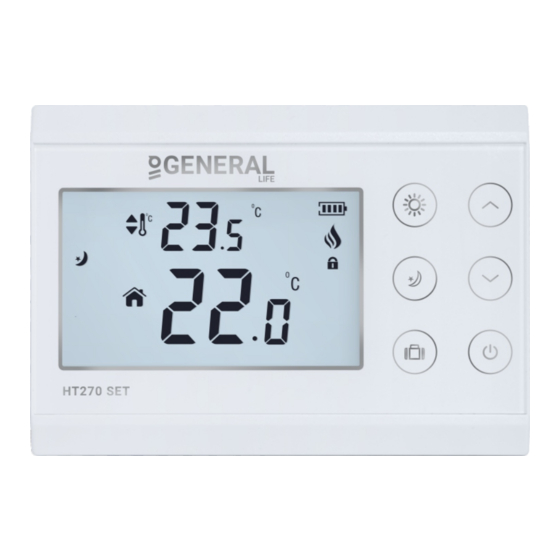

USAGE OF ROOM THERMOSTAT HT270 SET is a wireless room thermostat. The HT270 SET room thermostats are used in heating systems to keep the room temperature constant at the set temperature. Large LCD Backlight Display Touch Keys Daily and Weekly Program ... -
Page 3: Operating Principles
Boiler Operates Economy Mode Screen Lock Holiday Mode Room Temperature Manual Mode OPERATING PRINCIPLES HT270 SET room thermostat specifications: LCD with backlight Two-position control (ON / OFF) Temperature sensor (NTC) The thermostat measures the room temperature with its temperature sensor. The desired temperature value is set by turning the button to the right or left. -
Page 4: Room Thermostat Installation
The room thermostat can be calibrated if the measuring temperature wanted to be changed. The calibration range is -8 C to + 8 C. ORDERING When ordering, specify both the product type and the product code, for example the HT270 SET wireless room thermostat. ROOM THERMOSTAT INSTALLATION Remove the room thermostat by pulling it out of the wall bracket. -
Page 5: Modem Placement
MODEM 1-Modem Led Light 2-Sync Button: Syncs modem and room thermostat. 3-Manual Usage Button: Deactivates receiver and allows you to use boiler manually. 4-Modem Power Cable Input 5-Boiler Connection Cable Input MODEM LED LIGHT COLOR EXPLANATIONS Green Receiver synced with thermostat and Works properly. Green Flashing Pressed to receiver sync button and waiting for thermostat sync signal. -
Page 6: Application Example
APPLICATION EXAMPLE SYSTEM COMBINATION Actuator Type of Actuator Operating Voltage Positioning Type Positioning Time Thermal ST21 AC 230 V 2 Position 180 sn. SEA21.10 Motor AC 230 V 2 Position < 20 sn. APPLICATION EXAMPLE 220V 220V 6 / 11 generallife.com.tr... - Page 7 WARNING! Please do not connect the modem with another product's supply line. Risk of fire and injury due to short circuit! Please comply with local regulations when determining power cable diameters. Please supply the power line from a fuse. WARNING! The product is subject to the European Directive 2012/19 / EU as it is included in the electronic product category.
- Page 8 MODE SETTTINGS MODES READY MODES MANUAL MODE Comfort Mode Economy Mode Holiday Mode Room thermostat have 4 diferent modes 3 of them are prepared for your comfort and ready to use.Other mode is a manual mode. In prepared modes ,temperature degrees are based on user's preferences which has been set in the beginning Temperature degrees of prepared modes can be adjusted.In order to set a temperature for any mode,mode button of that function needs to be pressed for 3 seconds.Set degree of that specific mode would appear on the screen and by pressing ''Temperature Adjustment Buttons ''degree can be reset.After finishing setting the degree same...
-
Page 9: Technical Data
TECHNICAL DATA Room Thermostat Power Supply Operating Current 3V DC (2 x AAA alkaline battery) Battery Life 1 Years (2 x AAA) Operational Data Temperature Measurement Accuracy 0.1 C Operating Sensitivity 0.5 C Operating Temperature Range (5 C) – (30 C) Environmental Conditions Operating Temperature (0 C) –... - Page 10 DIMENSIONS 85 mm 21 mm 119.5 mm 24 mm 80 mm 118 mm 6 mm 85 mm 90 mm 28.5 mm 10 / 11 generallife.com.tr...
