- Page 1 DIGITAL ROOM THERMOSTAT HT250S SET Wireless Room Thermostat Large LCD Backlight Display Battery Indicator On-Off Control Product Code HT250S SET Data sheet V. No v.1.0 generallife.com.tr...
-
Page 2: Mechanical Design

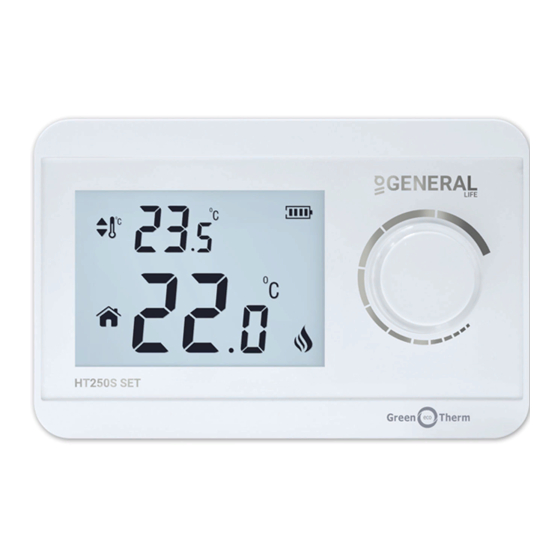

USAGE OF ROOM THERMOSTAT HT250S SET is a wireless room thermostat. The HT250S SET room thermostats are used in heating systems to keep the room temperature constant at the set temperature. Large LCD Backlight Display Heating Calibration For heating systems ... -
Page 3: Operating Principles
The room thermostat can be calibrated if the measuring temperature wanted to be changed. The calibration range is -8 C to + 8 C. ORDERING When ordering, specify both the product type and the product code, for example the HT250S SET wireless room thermostat. 3 / 10... -
Page 4: Room Thermostat Installation
ROOM THERMOSTAT INSTALLATION Remove the room thermostat by pulling it out of the wall bracket. If you want to use your room thermostat in a fixed place, mount the dismantled wall apparatus in a room you frequently use in your living space. If you want to use your room thermostat with the table bracket, place the room thermostat on the table bracket by removing the wall bracket. -
Page 5: Modem Placement
MODEM LED LIGHT COLOR EXPLANATIONS Green Receiver synced with thermostat and Works properly. Green Flashing Pressed to receiver sync button and waiting for thermostat sync signal. Receiver has energy but no thermostat synced. Red Flashing Boiler shut down because of, no signal from thermostat more than 22 minutes. Orange On Manual Mode. -
Page 6: Application Example
APPLICATION EXAMPLE SYSTEM COMBINATION Actuator Type of Actuator Operating Voltage Positioning Type Positioning Time Thermal ST21 AC 230 V 2 Position 180 sn. SEA21.10 Motor AC 230 V 2 Position < 20 sn. APPLICATION EXAMPLE 220V 220V 6 / 10 generallife.com.tr... - Page 7 WARNING! Please do not connect the modem with another product's supply line. Risk of fire and injury due to short circuit! Please comply with local regulations when determining power cable diameters. Please supply the power line from a fuse. WARNING! The product is subject to the European Directive 2012/19 / EU as it is included in the electronic product category.
-
Page 8: Technical Data
TECHNICAL DATA Room Thermostat Power Supply Operating Current 3V DC (2 x AAA alkaline battery) Battery Life 1 Years (2 x AAA) Operational Data Temperature Measurement Accuracy 0.1 C Operating Sensitivity 0.5 C Operating Temperature Range (5 C) – (30 C) Environmental Conditions Operating Temperature (0 C) –... - Page 9 DIMENSIONS 88 mm 21 mm HT250S SET 136 mm 34 mm 80.50 mm 118.50 mm 5 mm 85 mm 90 mm 28.5 mm 9 / 10 generallife.com.tr...
- Page 10 ISIPARK reserves the right to change and develop the product specifications and data sheet. For all changes please visit generallife.com.tr...
