DIGITAL ROOM THERMOSTAT
generallife.com.tr
SOLARA 330S RF USER MANUAL
GENERAL SPECIFICATIONS
SOLARA 330S RF is a wireless room thermostat. The user can get more
comfortable and economic heating/cooling by adjusting the room thermostat with
the required temperature.
Daily and Weekly Programming
Different Mode Options (Comfort, Economy, Holiday)
Heating Calibration
Heating/Cooling Option
Precise Temperature Measurement
SOLARA 330S RF and EQUIPMENTS

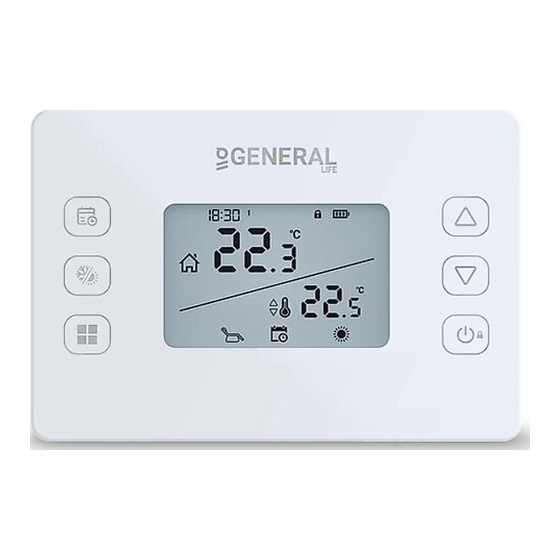

SOLARA 330S RF
TECHNICAL DATA
Room Thermostat
Dimensions
Operating Current
Temperature Measurement Accuracy
Operating Temperature Range
Battery Life
Operating Temperature
Storage Temperature
Dimensions
Operating Current
Relay NO Switching Current
Storage Temperature
ROOM THERMOSTAT
1
2
3
1
Weekly Program Button
2
Heating & Cooling Option
3
Mode Button
4
Temperature Adjustment Button (To Increase)
5
Temperature Adjustment Button (To Decrease)
6
On/Off Button – Unlock Button
ON/OFF Control
TPI Algorithm
Receiver
85mm / 125mm / 20mm
3V DC (2 x AAA alkaline battery)
0.1 C
(5 C) – (30 C)
1 Year (2 x AAA)
(-10 C) – (+50 C)
(-20 C) – (+60 C)
90mm / 90mm / 25mm
230V AC
7A (240VAC – Resistive Load)
10A (120VAC – Resistive Load)
(-20 C) – (+60 C)
1
Wireless Connection
Holder
Dowels and Screws
o
o
o
o
o
o
o
o
o
ENGLISH
Alkaline Battery
4
5
6
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for GENERAL LIFE SOLARA 330S RF
Summary of Contents for GENERAL LIFE SOLARA 330S RF
- Page 1 DIGITAL ROOM THERMOSTAT generallife.com.tr SOLARA 330S RF USER MANUAL GENERAL SPECIFICATIONS SOLARA 330S RF is a wireless room thermostat. The user can get more comfortable and economic heating/cooling by adjusting the room thermostat with the required temperature. Daily and Weekly Programming ...
- Page 2 Product Display Layout Hour Indicator Room Temperature Economy Mode Comfort Mode Holiday Mode Weekly Program Mode Day Indicator Screen Lock Battery Indicator Set Temperature Heating Indicator - If the Heating Indicator is blinking, the heating unit is working. - If the Heating Indicator is steady, the heating unit is not working. Cooling Indicator - If the Cooling Indicator is blinking, the cooling unit is working.
- Page 3 BATTERY PLACEMENT Press the screwdriver forward from the space at the bottom of the Room Thermostat, bend the tabs and separate the front cover. Insert 2 new AAA alkaline batteries in the battery housing with the correct battery direction. Replace both batteries at the same time.
- Page 4 PAIRING THE ROOM THERMOSTAT AND THE RECEIVER Primarily press the sync button of the Receiver for 2 seconds and see blinking green light of the Receiver. While your device is turned off, press and hold the "On/Off" button for 3 seconds. ...
- Page 5 WEEKLY PROGRAM You may set the operating schedule of your Room Thermostat with weekly program mode. 7 different temperature values can be set for each day in weekly programming. These values can be set in temperature adjustment screens '' P0-P6''. In order to set the weekly schedule, press and hold the “Weekly Program“...
- Page 6 İZMİR – TÜRKİYE confirms and declares that the product marked with CE and its specifications below is covered by the provisions of the mentioned directive. Brand : GENERAL Life Product Name : SOLARA 330S RF Product Type : Digital Room Thermostat Compatible Directives: Radio and Telecommunications Terminal Equipment Regulation 2014/53/EU (R&TTE/RED EN 301 489-1 V2.1.1:2017,...
- Page 7 WARRANTY CONDITIONS 1- The warranty period starts from the invoice date and warranted against manufacturing defects for 5 years. 2- Devices and apparatus are delivered to the customer in working condition in our company. On-site commissioning is subject to a service fee. 3- The repair of the devices and apparatus covered by the warranty is carried out in our company factory and should send by contracted transportation company.
- Page 8 Fax: +90 (232) 457 91 22 E-Mail: generallife@generallife.com.tr Authorized Signatory: Company Stamp: Product Type: Digital Room Thermostat Brand: GENERAL Life Model: SOLARA 330S RF Guarantee Period: 5 Years Max. Time to Repair: 20 Days Banderole and Serial Number: Vendor Title: Address:...
