GENERAL LIFE HT300S RF User Manual

ENGLISH
DIGITAL ROOM THERMOSTAT
generallife.com.tr
HT300S RF USER MANUAL
GENERAL SPECIFICATIONS
HT300S RF is a wireless room thermostat. The user can get more comfortable and
economic heating by adjusting the room thermostat with the required temperature.
Daily and Weekly Programming

Different Mode Options (Comfort, Economy, Holiday)

Heating Calibration ON/OFF Control Wireless Connection

TPI Algorithm Precise Temperature Measurement

HT300S RF and EQUIPMENTS
HT300S RF Holder Alkaline Battery
Room Thermostat
Receiver Dowels and Screws
TECHNICAL DATA
Room Thermostat
Dimensions 85mm / 125mm / 20mm
Operating Current 3V DC (2 x AAA alkaline battery)
Temperature Measurement Accuracy 0.1 C o
Operating Temperature Range (5 C) – (30 C) o o
Battery Life 1 Year (2 x AAA)
Operating Temperature (-10 C) – (+50 C)
o o
Storage Temperature (-20 C) – (+60 C) o o
Receiver
Dimensions 90mm / 90mm / 25mm
Operating Current 230V AC
Relay NO Switching Current 7A (240VAC – Resistive Load)
10A (120VAC – Resistive Load)
Storage Temperature (-20 C) – (+60 C) o o

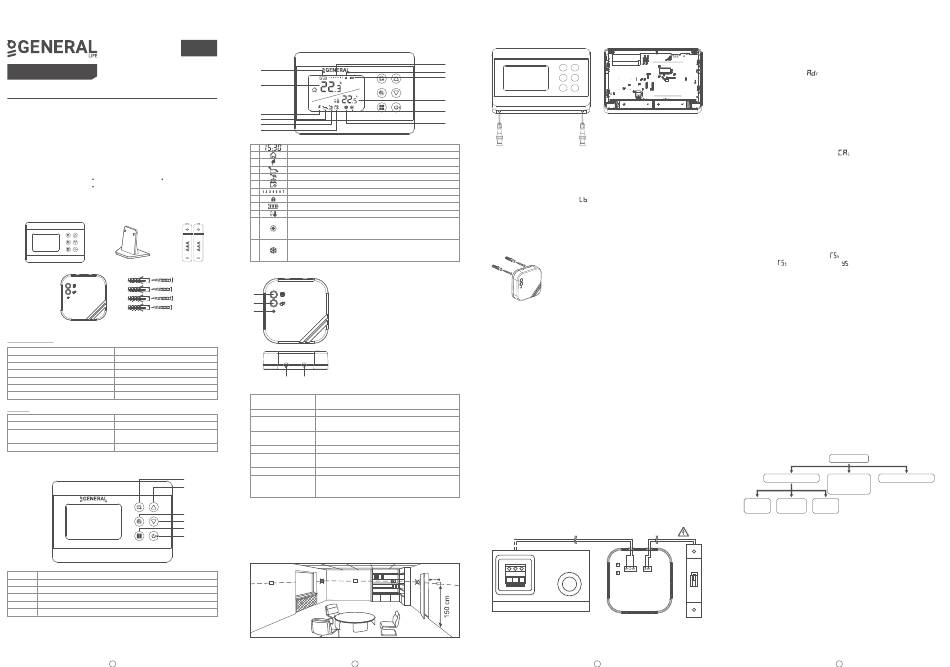

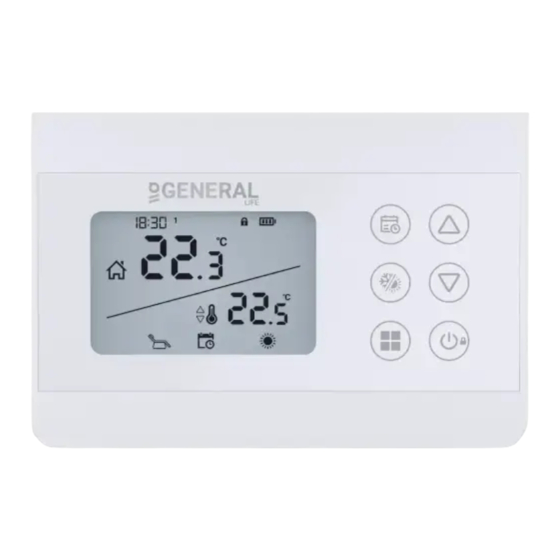

ROOM THERMOSTAT
Button Functions
1
2
3
4
5
6
1 Weekly Program Button
2 Temperature Adjustment Button (To Increase)
3 Heating & Cooling Option
4 Temperature Adjustment Button (To Decrease)
5 Mode Button
6 On/Off Button – Unlock Button
1
Product Display Layout
1
2
3
4
5
6
1 Hour Indicator
2 Room Temperature
3 Economy Mode
4 Comfort Mode
5 Holiday Mode
6 Weekly Program Mode
7 Day Indicator
8 Screen Lock
9 Battery Indicator
10 Set Temperature
Heating Indicator
11 - If the Heating Indicator is blinking, the heating unit is working.
- If the Heating Indicator is steady, the heating unit is not working.
Cooling Indicator
12 - If the Cooling Indicator is blinking, the cooling unit is working.
- If the Cooling Indicator is steady, the cooling unit is not working.
RECEIVER
1-Manual Operation Button: Deactivates the
Receiver and allows you to use heating/cooling
1
unit manually.
2 2-Pairing Button: Allows pairing the Receiver
with the Room Thermostat.
3
3-Receiver LED Light
4-Receiver Power Cable Input
5-Heating/Cooling Unit Connection Cable Input
5
4
RECEIVER LED DESCRIPTIONS
Steady Red Receiver has power but Receiver and Room Thermostat
are not paired.
Blinking Green Waiting for pairing signal from the Room Thermostat.
Steady Green Receiver and Room Thermostat are paired.
Heating/cooling unit is not operating.
3 Short Orange Blinking Operate the heating/cooling unit signal has reached to
the Receiver.
Steady Orange Heating/cooling unit is operating.
3 Short Green Blinking Shut the heating/cooling unit down signal has reached
to the Receiver.
Blinking Orange Heating/Cooling unit operates in manual mode.
Blinking Red Receiver did not get any signal from the Room
Thermostat for 22 minutes or longer.
Heating/cooling unit has shut down.
ROOM THERMOSTAT PLACEMENT
Room Thermostat needs to be placed in the room which is used most frequently.
For instance; living room or lounge. Placing the Room Thermostat in a spot that
have air circulation like entrance of a room or side of window should be avoided.
Also anywhere close to heating/cooling units such as radiator, stove and spots
which get direct sun lights would not be suitable. Room Thermostat needs to be
located above the floor 150 cm height.
2
BATTERY PLACEMENT
7
8
9
10
11
12
Press the screwdriver forward from the space at the bottom of the Room
Thermostat, bend the tabs and separate the front cover. Insert 2 new AAA alkaline
batteries in the battery housing with the correct battery direction. Replace both
batteries at the same time. Align the front part of your Room Thermostat with
corresponding slot on the back, and then push gently until the thermostat snaps
into place.
Low Battery Warning: When the " " icon appears on the screen, it means "low
battery warning". It is recommended to replace the batteries when this warning
appears.
Warning: When the product is not used for a long period (more than 15 days),
remove the batteries. Otherwise, malfunctions that may occur would be out of
warranty. Please throw your dead batteries into the waste bin for batteries.
RECEIVER PLACEMENT
The important things to note for the Receiver placement are
avoiding physical contact between the Receiver and heating
unit, and protecting it against materials such as liquid, dust
etc.
The devices should be placed in order to minimize the damage to the received and
transmitted signals by paying attention to the following points;
The devices should not be mounted on metal surfaces.

The devices should not be installed close to electrical cables and electronic

equipment such as computers and television units.
The devices should not be installed near large metal structures or other building

materials using fine metal meshes such as special glass or special concrete.
Distance between the Room Thermostat and the Receiver should not exceed 20

meters or 2 floors.
Receiver must be installed at least 50 cm away from the heating/cooling unit.

RECEIVER SETUP
First, shut down your heating/cooling unit and your heating/cooling unit's power

source with all electrical current (fuse, socket etc.)
As shown in the connection diagram, connect one end of the heating/cooling unit

connection cable to the COM and the other to the NO input of the Receiver.
Connect the other ends of the cable -which you connected to the Receiver- to

room thermostat connection terminal as shown in your heating/cooling unit's
user manual.
You must first connect the Receiver power cable to the Receiver and then to the

fuse which the heating/cooling unit is connected.
After completing the cable connection process, firstly turn on your fuse and then

your heating/cooling unit.
By pressing the Receiver's manual usage button for 2 seconds, you should see

the Orange Light blinking on the Receiver. In this way, after making sure that the
heating/cooling unit is operating, press the same button again for 2 seconds and
see that the Orange LED turns off.
Set up the Room Thermostat to pair the Receiver with the Room Thermostat.

RECEIVER WIRING DIAGRAM
COM
NO
min. 20 cm
HEATING/COOLING UNIT
Warning!
Operations within the heating unit or the electrical installation must be carried out
by professionally qualified persons.
3
PAIRING THE ROOM THERMOSTAT AND THE RECEIVER
Primarily press the sync button of the Receiver for 2 seconds and see blinking

green light of the Receiver.
While your device is turned off, press and hold the "On/Off" button for 3 seconds.

Press the button until the " " menu appears.

Press the "Up" or "Down" button of your Room Thermostat while the LED is

flashing green.
If the pairing is successful, the green flashing LED on the Receiver will be steady.

Receiver and Room Thermostat have been paired to each other.

ROOM THERMOSTAT TEMPERATURE CALIBRATION
Temperature sensors which are used in Room Thermostats are highly sensitive.
You may need to calibrate your Room Thermostat if you would like to get the same
temperature values with other thermometers in your living space.
While your device is turned off, press and hold the "On/Off" button for 3 seconds.

Press the "On/Off" button until the "

desired temperature, set the temperature difference by pressing the
"Temperature Adjustment Buttons". This value can be arranged between "-8° C"
and "+8° C".
In order to save the settings and exit, press the "On/Off" button until the device

turns off.
Note: Recommended temperature calibration is "0.0°C".
FACTORY SETTINGS RESET
You can reset your Room Thermostat to its default factory settings. This operation
resets the mode temperature values, calibration setting and heating/cooling
modes settings to factory setting. In order to reset your Room Thermostat to
factory setting:
While your device is turned off, press and hold the "On/Off" button for 3 seconds.

Press the "On/Off" button until the " " menu appears.

While in the " " menu, select the "

buttons and press the "On/Off" button.
Your device will be turned off and reset to factory settings.

KEY LOCK
In the Room Thermostat there is a key lock function to avoid any unintended
contact.
In order to unlock the Room Thermostat's key lock the "On/Off" button should be
pressed for 3 seconds. If buttons on Room Thermostat are not touched for 10
seconds, key lock will be reactivated.
DAY AND HOUR SETTINGS
While your Room Thermostat is on, keep pressing the "Weekly Program" button

for 3 seconds.
At the first screen that appears, hour part will be blinking. You may set the time

with the "Up" and "Down" buttons.
After setting the time, the "Heating & Cooling Option" button needs to be pressed

once. For minute setting, minute part will be blinking. You may set the minute with
the "Up" and "Down" buttons.
After setting the minute, the "Heating & Cooling Option" button needs to be

pressed once to set the day of the week.
Monday has set as the first day of the week and indicated with number "1".

Numbers indicate the following days respectively 2-Tuesday, 3-Wednesday,

4-Thursday, 5-Friday, 6-Saturday and 7-Sunday
When setting is done, you may exit by pressing the "Weekly Program" button for 3

seconds.
MODES
MODE SETTING
PRESET MODES WEEKLY
PROGRAM
MODE
Comfort Economy Holiday
Mode Mode Mode
Your Room Thermostat has 5 different modes. 3 of them (Comfort, Economy and
AC Holiday Mode) are preset modes. Other modes are manual mode and weekly
(230V)
program mode.
In preset modes, temperature values are based on user's choices which have been
set in the beginning. Manual mode allows the Room Thermostat to operate within
the temperature which is required and set directly by user. Weekly Program mode
continues to work according to the weekly schedule determined by the user.
In order to change the temperature values of preset modes:
Press and hold the "Mode" button for 3 seconds while your Room Thermostat is

on.
Comfort Mode temperature value will appear. You may adjust the temperature

value of Comfort Mode by pressing the "Up" and "Down" buttons.
When setting is done, you may adjust the temperature value of Economy Mode

with the "Up" and "Down" buttons by pressing the "Mode" button again.
You may exit the setting screen by pressing the "Mode" button 3 seconds.

In order to change the manual mode temperature, press the "Up" or "Down" button

while in the main screen. The Room Thermostat will switch to Manual Mode once
pressed the "Up" or "Down" button.
You may press the "Mode" button to switch to the other modes.

4
" menu appears. In order to see the
" option by using the "Up" or "Down"
MANUAL MODE
