Summary of Contents for Ethnicraft 50993

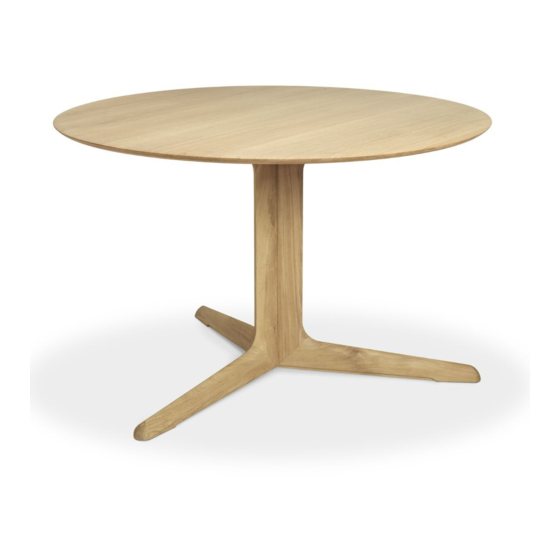

- Page 1 ASSEMBLY INSTRUCTIONS FOR DINING TABLE INSTALLATION OAK CORTO ROUND DINING TABLE CODE DESCRIPTION 50993 OAK CORTO ROUND DINING TABLE 120/120/76...
- Page 2 CHECK PACKAGE CONTENTS TO ASSURE ALL THE NECESSARY HARDWARE AND PARTS ARE RECEIVED UNDAMAGED. DO NOT USE DAMAGE OR DEFECTIVE PARTS/HARDWARE. CONTACT ETHNICRAFT FOR ANY MISSING PART AND /OR HARDWARE. READ THE ASSEMBLY INSTRUCTION BEFORE INSTALLATION AND CAREFULLY FOLLOW THE INSTRUCTION GIVEN.
- Page 3 3 / 5 50993 OAK CORTO ROUND DINING TABLE ASSEMBLY INSTRUCTIONS FOR DINING TABLE INSTALLATION ATTACHING LEG H2199 H2199 H0383 H0383 H2198 H2198 H2199 H2199 H0383 H0383 - USE MULTI CONNECTOR (1X) - USE ALLEN SCREW M8x50 (3X) - USE WASHER M8 (3X)
- Page 4 4 / 5 50993 OAK CORTO ROUND DINING TABLE ASSEMBLY INSTRUCTIONS FOR DINING TABLE INSTALLATION RE-TIGHTTEN ALL SCREWS FULLY TIGHTEN ALL SCREWS ATTACHING LEGS TO TABLE TOP H0824 H0824 H0824 H0824 - USE JCBC SCREW M6x50 (6X) - USE ALLEN KEY 4...
- Page 5 5 / 5 50993 OAK CORTO ROUND DINING TABLE ASSEMBLY INSTRUCTIONS FOR DINING TABLE INSTALLATION ADJUST GLIDES ADJUSTABLE GLIDES POSITION STABLE UNSTABLE NOTE : THIS IS A COMPULSORY ACTION TO MAKE SURE ALL OF THE ADJUSTABLE GLIDES TOUCH THE GROUND!
