Summary of Contents for Ethnicraft 50995-U

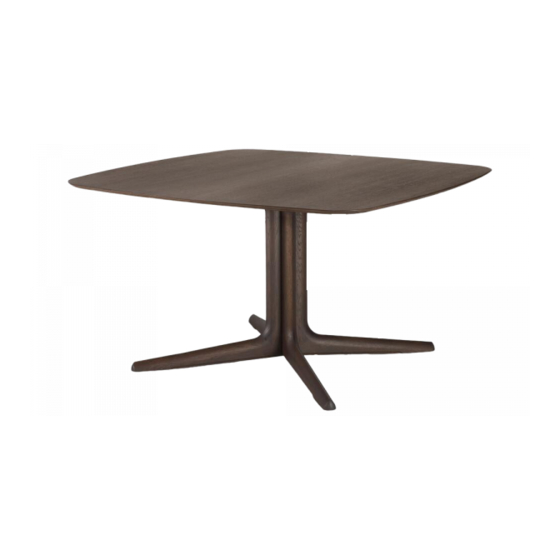

- Page 1 ASSEMBLY INSTRUCTIONS FOR DINING TABLE INSTALLATION OAK CORTO DINING TABLE CODE DESCRIPTION 50995-U OAK CORTO DINING TABLE 140/140/76...
- Page 2 CHECK PACKAGE CONTENTS TO ASSURE ALL THE NECESSARY HARDWARE AND PARTS ARE RECEIVED UNDAMAGED. DO NOT USE DAMAGE OR DEFECTIVE PARTS/HARDWARE. CONTACT ETHNICRAFT FOR ANY MISSING PART AND /OR HARDWARE. TABLE TOP 1piece READ THE ASSEMBLY INSTRUCTION BEFORE INSTALLATION CODE DESCRIPTION AND CAREFULLY FOLLOW THE INSTRUCTION GIVEN.
- Page 3 50995-U OAK CORTO DINING TABLE ASSEMBLY INSTRUCTIONS FOR DINING TABLE INSTALLATION INSTALLING LEGS 1ST STEP THE POSITION OF THE BOLT HOLES ARE ON THE TOP SIDE -USE DOWEL 10x30 (2X) Ø - USE SPAX SCREW M6x80 (3X) - TIGHTEN FULLY...
- Page 4 50995-U OAK CORTO DINING TABLE ASSEMBLY INSTRUCTIONS FOR DINING TABLE INSTALLATION 3RD STEP THE POSITION OF THE BOLT HOLES ARE ON THE TOP SIDE USE DOWEL 10x30 (2X) Ø 4TH STEP H0849 SCREW POSITION - USE SPAX SCREW M6x120 (2X)
- Page 5 50995-U OAK CORTO DINING TABLE ASSEMBLY INSTRUCTIONS FOR DINING TABLE INSTALLATION INSTALLING LEGS TO TABLE TOP H0824 H0824 - USE JCBC SCREW M6x50 (8X) - TIGHTEN FULLY ADJUSTING SHOES ADJUSTABLE SHOES POSITION STABLE UNSTABLE NOTE : THIS IS A COMPULSORY ACTION TO MAKE SURE...
