ASSEMBLY INSTRUCTIONS FOR BED INSTALLATION
SPINDLE BED - QUEEN SIZE - WITH SLATS
CODE
DESCRIPTION

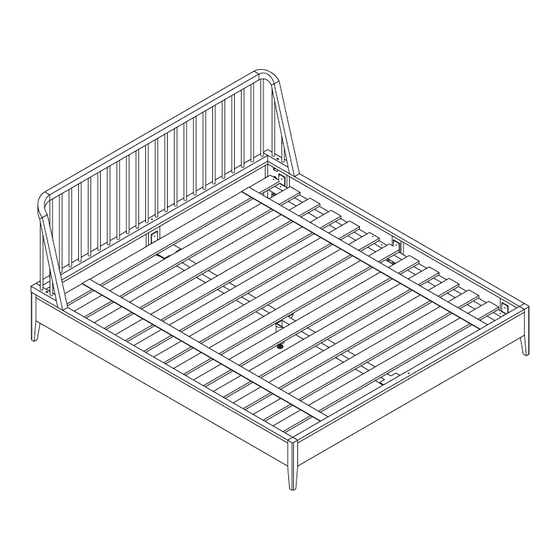

OAK SPINDLE BED - US QUEEN SIZE – WITH SLATS 153/203/97
51249-U
WALNUT SPINDLE BED - US QUEEN SIZE – WITH SLATS 153/203/97
45189-U
OAK SPINDLE BLACK BED - US QUEEN SIZE – WITH SLATS 153/203/97
51239-U
1/7
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Ethnicraft 51249-U
Summary of Contents for Ethnicraft 51249-U
- Page 1 SPINDLE BED - QUEEN SIZE - WITH SLATS CODE DESCRIPTION OAK SPINDLE BED - US QUEEN SIZE – WITH SLATS 153/203/97 51249-U WALNUT SPINDLE BED - US QUEEN SIZE – WITH SLATS 153/203/97 45189-U OAK SPINDLE BLACK BED - US QUEEN SIZE – WITH SLATS 153/203/97...
- Page 2 BOX OR OTHER PROTECTIVE SURFACE TO AVOID DAMAGE. CHECK PACKAGE CONTENTS TO ASSURE ALL THE NECESSARY HARDWARE AND PARTS ARE RECEIVED UNDAMAGE. DO NOT USE DAMAGED OR DEFECTIVE PARTS/ HARDWARE. CONTACT ETHNICRAFT FOR ANY HEADBOARD 1piece MISSING PART AND OR HARDWARE. CODE DESCRIPTION...
- Page 3 SPINDLE BED - QUEEN SIZE - WITH SLATS ASSEMBLY INSTRUCTIONS FOR BED INSTALLATION HARDWARE ENCLOSED H0667 H0666 H0308 H0742 H0228 HALFMOON WASHER HALFMOON BOLT DOWEL JCBC SCREW LONG NUT M8x100 Ø12x50 mm M6x70 (4pcs) (4pcs) (8pcs) (3pcs) (2pcs) H0951 H0949 H0757 H0747 L BRACKET...
- Page 4 SPINDLE BED - QUEEN SIZE - WITH SLATS ASSEMBLY INSTRUCTIONS FOR BED INSTALLATION CONNECTING SIDERAIL AND HEAD / FOOTBOARD TIGHTEN FULLY D (L) DO NOT FULLY TIGHTEN CONNECTING CENTER LEG TO CENTER SUPPORT TIGHTEN FULLY...
- Page 5 SPINDLE BED - QUEEN SIZE - WITH SLATS ASSEMBLY INSTRUCTIONS FOR BED INSTALLATION INSTALLING CENTER SUPPORT TO ADJUST HEIGHT TIGHTEN FULLY ALL SCREWS INSTALLING SLAT SUPPORTS - TIGHTEN FULLY ALL SCREWS - INSTALLING SLAT SUPPORTS AT THE SAME LEVEL WITH CENTER SUPPORT...
- Page 6 SPINDLE BED - QUEEN SIZE - WITH SLATS ASSEMBLY INSTRUCTIONS FOR BED INSTALLATION INSTALLING HEADBOARD PANEL INSTALL SCREW ON THE MIDDLE SIDE FIRST DO NOT FULLY TIGHTEN THEN INSTALL SCREW ON THE OTHER SIDE DO NOT FULLY TIGHTEN...
- Page 7 SPINDLE BED - QUEEN SIZE - WITH SLATS ASSEMBLY INSTRUCTIONS FOR BED INSTALLATION RE-TIGHTEN THE SCREWS TIGHTEN FULLY ALL SCREWS INSTALLING SLATS - SLATS TO BE ASSEMBLED ARE NUMBER 1, 6, AND 13 - TIGHTEN FULLY ALL SCREWS...
