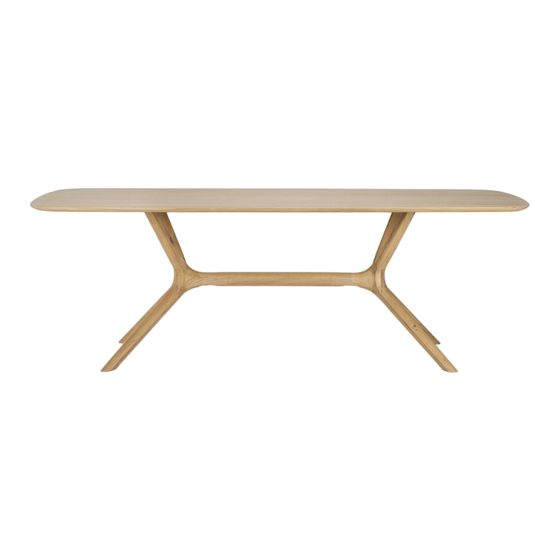

Dining table

Advertisement

50028 OAK X DINING TABLE

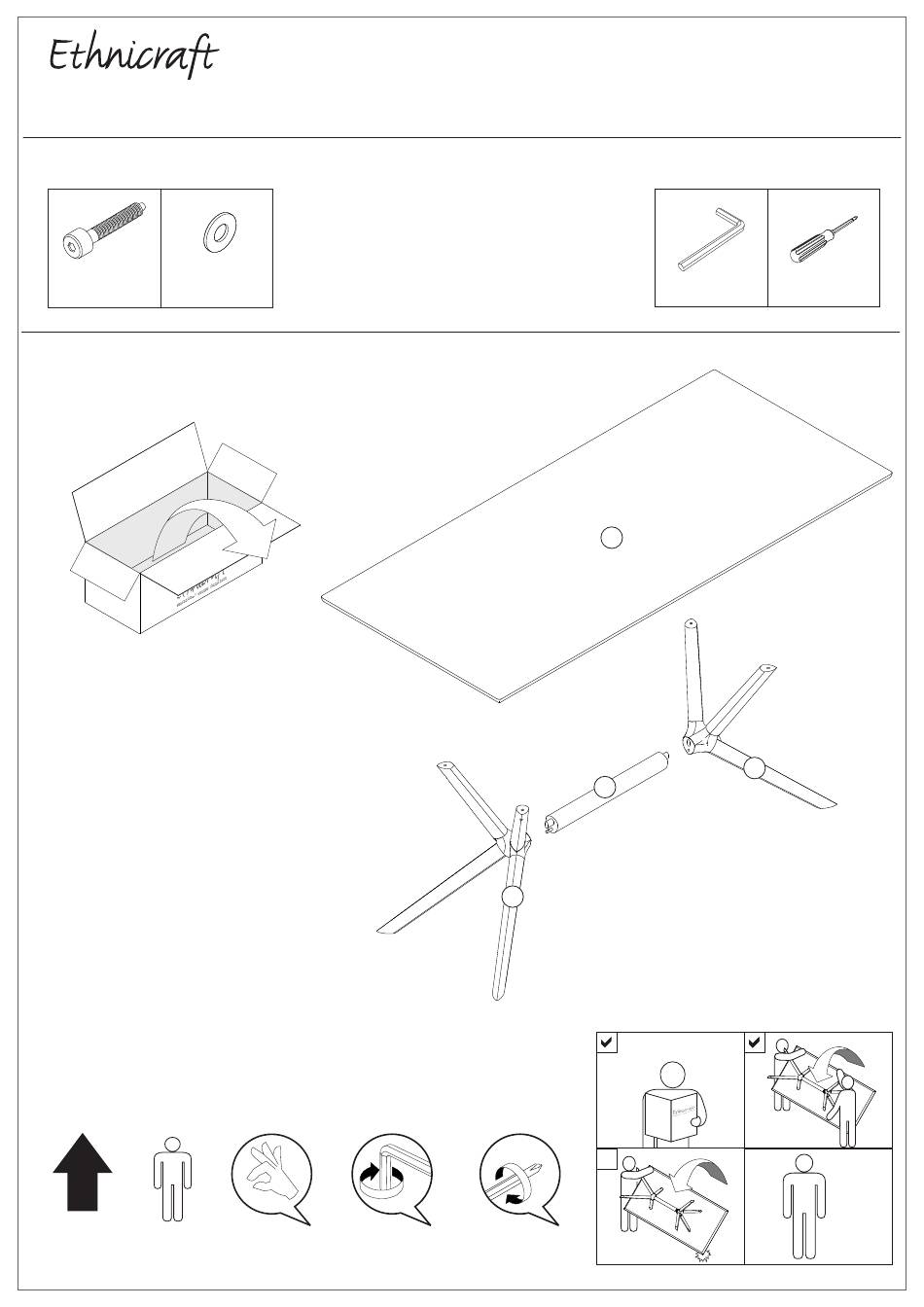

ASSEMBLY INSTRUCTIONS FOR DINING TABLE INSTALLATION
HARDWARE ENCLOSED
DIN 912 BOLT
WASHER
M6x30
M6
(4 pcs)
(4 pcs)
IN YOUR PACKAGE :
ASSEMBLY INSTRUCTION
HARDWARES (AS LISTED ABOVE)
PARTS TO BE INSTALLED
1. TABLE TOP 1 pc
2. LEGS 2 pcs
3. STRETCHER 1pc
SYMBOLS
DIRECTION
NUMBER OF
PERSONS NEEDED
USE HAND
USE L KEY
TO TIGHTEN
1
3
2
NOTICE
X
USE SCREW DRIVER
TO TIGHTEN
TOOL
SCREW DRIVER
L KEY
(included in package)
(not included in package)
2
TIO
N
TR UC
LY INS
MB
A
S
SE
X2
1 / 3
