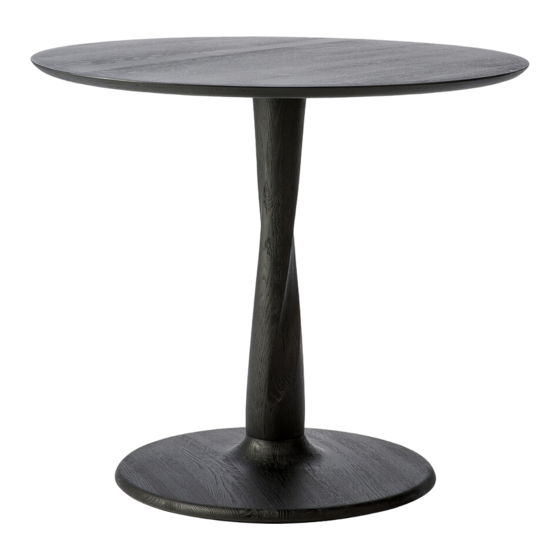

50011 - 50013 OAK TORSION DINING TABLE
ASSEMBLY INSTRUCTION FOR TABLE INSTALLATION
HARDWARE ENCLOSED
JCBC SCREW
JCBC SCREW
M8x50
M8x16
(3X)
(9X)
IN YOUR PACKAGE :
ASSEMBLY INSTRUCTION
HARDWARES (AS LISTED ABOVE)
PARTS TO BE INSTALLED
1. TABLE TOP 1 pc
2. CENTER LEG 1 pc
3. LEG BASE 1pc
SYMBOLS
DIRECTION
NUMBER OF
PERSONS NEEDED
METAL PLATE
METAL PLATE
RUBBER PAD
(SMALL)
(LARGE)
(1X)
(1X)
USE L KEY
TO TIGHTEN
(6X)
2
1
3
NOTICE
TIO
N
TR UC
LY INS
MB
A
S
SE
X
1/3
TOOL
L KEY
(included in package)
X2
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Ethnicraft Torsion 50011
Summary of Contents for Ethnicraft Torsion 50011
- Page 1 50011 - 50013 OAK TORSION DINING TABLE ASSEMBLY INSTRUCTION FOR TABLE INSTALLATION HARDWARE ENCLOSED TOOL JCBC SCREW JCBC SCREW METAL PLATE METAL PLATE RUBBER PAD L KEY M8x50 M8x16 (SMALL) (LARGE) (included in package) (3X) (9X) (1X) (1X) (6X) IN YOUR PACKAGE : ASSEMBLY INSTRUCTION HARDWARES (AS LISTED ABOVE) PARTS TO BE INSTALLED...
- Page 2 50011 - 50013 OAK TORSION DINING TABLE ASSEMBLY INSTRUCTION FOR TABLE INSTALLATION INSTALLING METAL PLATE TO THE CENTER LEG TIGHTEN FULLY - MAKE SURE “UP” SIGN IS ON TOP / ABOVE - USE THE SCREW M8x16 INSTALLING CENTER LEG TO TOP TABLE TIGHTEN FULLY - ALWAYS REFER THE STICKER - USE THE SCREW M8x16...
- Page 3 50011 - 50013 OAK TORSION DINING TABLE ASSEMBLY INSTRUCTION FOR TABLE INSTALLATION INSTALLING LEG BASE Make sure the holes of leg base and center leg inline Make sure the holes of metal plate and center leg inline TIGHTEN FULLY USE THE SCREW M8x50 ADJUST LEVELER RUBBER PADS POSITION STABLE...
