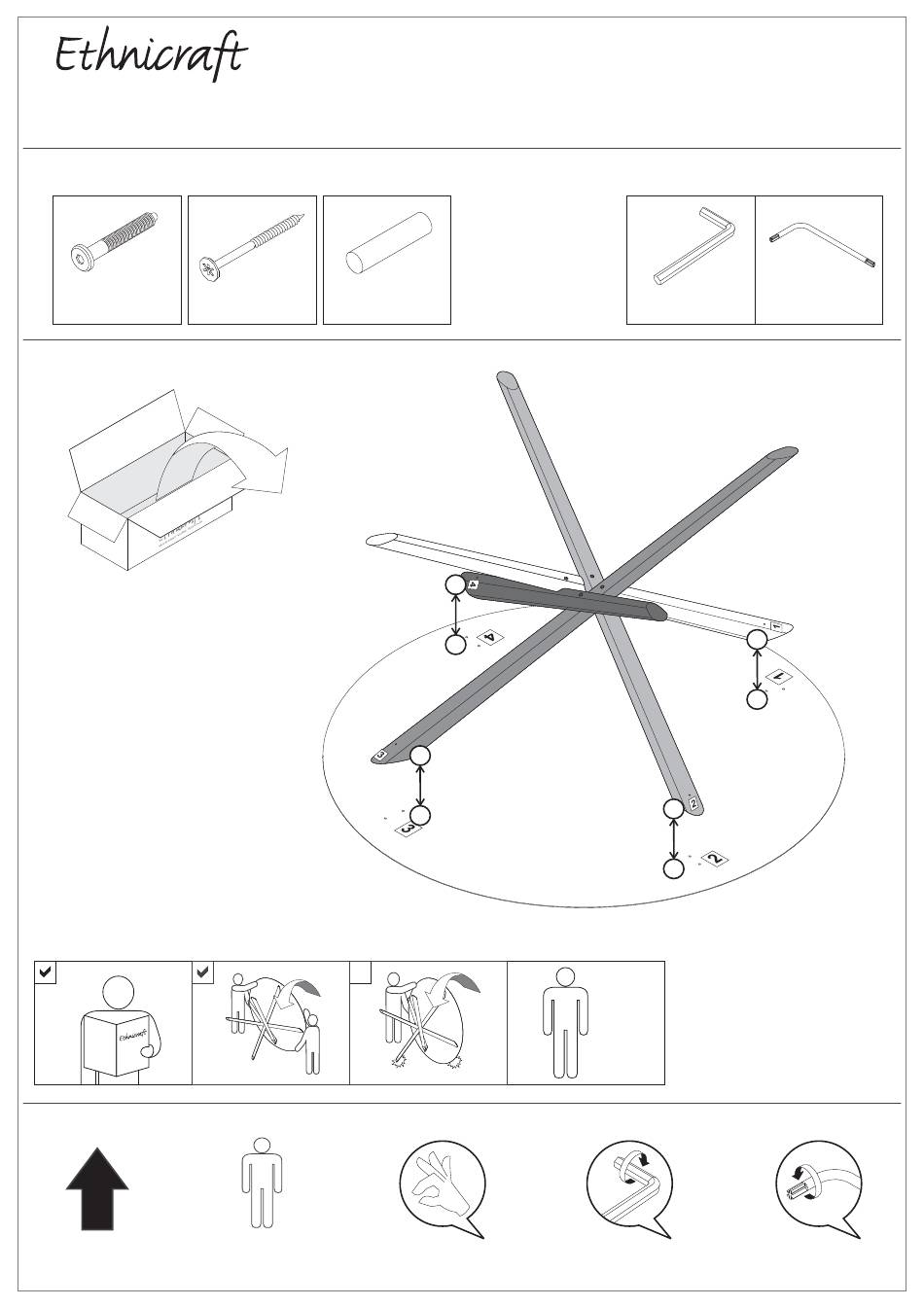

50545 OAK MIKADO ROUND DINING TABLE
ASSEMBLY INSTRUCTIONS FOR DINING TABLE INSTALLATION
HARDWARE ENCLOSED
(4X)
JCBC SCREW
M8 X 40mm
IN YOUR PACKAGE :
ASSEMBLY INSTRUCTIONS
HARDWARES ( AS LISTED ABOVE)
PARTS TO BE INSTALLED
1. TOP PANEL 1pc
2. LEGS 4 set
NOTICE
O
N
C TI
ST RU
LY IN
MB
A SE
S
SYMBOLS
DIRECTION
(4X)
(8X)
SPAX SCREW
DOWEL
Ø6 x 80mm
Ø10 X 30mm
X
NUMBER OF
PERSON NEEDED
4
4
3
3
USE HAND
TOOLS
L KEY
TORX ALLEN KEY
( included in package )
( included in package )
1
1
2
2
X3
USE L KEY
TO TIGHTEN
1/3
USE TORX ALLEN
TO TIGHTEN
