Programming The Cadd-Plus Pump For Continuous Delivery; Selecting The Continuous Delivery Mode - SIMS Deltec CADD-PLUS 5400 Operator's Manual

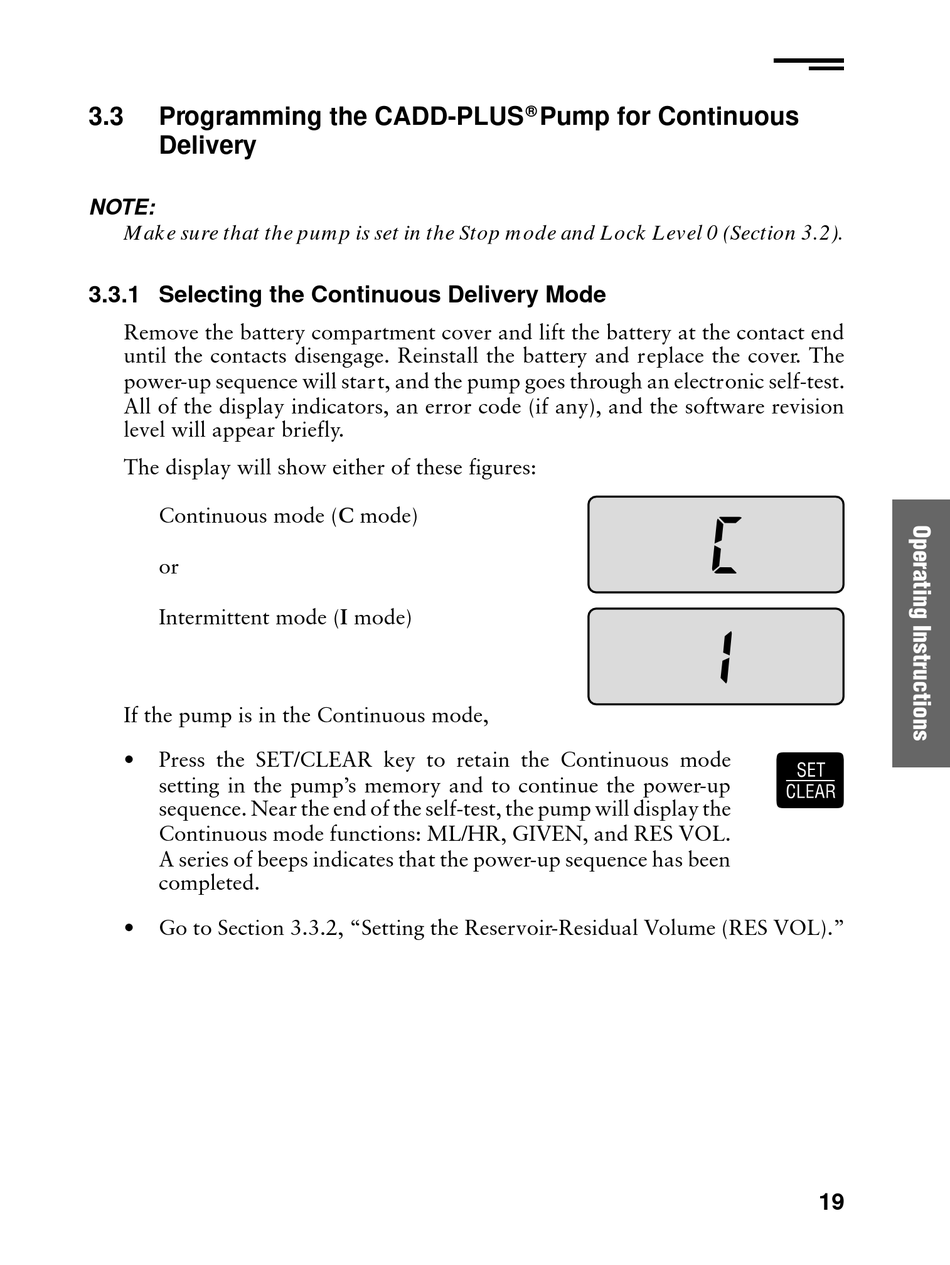

3.3 Programming the CADD-PLUS
Delivery
NOTE:
M ak e sure that the pum p is set in the Stop m ode and L ock L evel 0 (Section 3.2).

3.3.1 Selecting the Continuous Delivery Mode

Remove the battery compartment cover and lift the battery at the contact end
until the contacts disengage. Reinstall the battery and replace the cover. The
power-up sequence will start, and the pump goes through an electronic self-test.
All of the display indicators, an error code (if any), and the software revision
level will appear briefly.
The display will show either of these figures:
Continuous mode (C mode)
or
Intermittent mode (I mode)
If the pump is in the Continuous mode,
• Press the SET/CLEAR key to retain the Continuous mode
setting in the pump's memory and to continue the power-up
sequence. Near the end of the self-test, the pump will display the
Continuous mode functions: ML/HR, GIVEN, and RES VOL.
A series of beeps indicates that the power-up sequence has been
completed.
• Go to Section 3.3.2, "Setting the Reservoir-Residual Volume (RES VOL)."
® Pump for Continuous
I
C
¤
19
