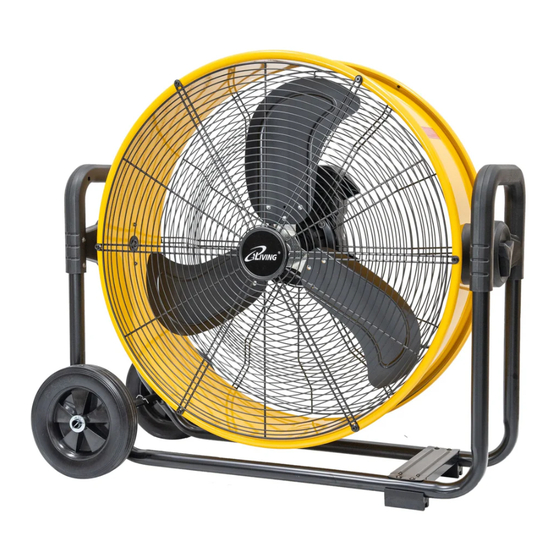

- Page 1 BLDC 24" Drum Fan MODEL NO.: ILG8M24-60DC 120V 60Hz Owner’s Manual PLEASE READ AND SAVE THESE INSTRUCTIONS...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Important Instructions…………………......…………………. Specifications ………………………............ Assembly instructions……………………….…….....…..Operation instruction………………………………........ Maintence and cleaning………………………………………..…..Trouble shooting………………………………………..…....10-11... -
Page 3: Specifications
SPECIFICATION When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electrical shock, and injury to persons including the following: WARNING: 1.Pleases read and understand this entire manual before attempting to assemble, install or operate the product. Do not use the fan unless you have read these instructions. - Page 4 SAFETY INFORMATION (CONTINUED) 21.Do not disassemble or modify the fan. 22.All servicing, apart from ordinary cleaning, should be perfomed by qualified personnel only. Those who are not certified electricians should not disassemble, repair or rebuild the fan. There are no user-serviceable parts inside.
- Page 5 SAFETY INFORMATION (CONTINUED) 36.WARNING: To Reduce The Risk Of Fire, Electric Shock Or Injury To Persons, Do Not Use Replacement Parts That Have Not Been Recommended By The Manufacturer (e.g. Parts Made At Home Using A 3D Printer). 37. Children should be supervised to ensure that they do not play with the appliance.
- Page 6 SPECIFICATION MODEL NO.: ILG8M24-60DC Parts of the fan PART DESCRIPTION PART # QUANTITY Front Grill SP-60DC-01 Blade SP-60DC-02 Drum SP-60DC-03 Rear Grill SP-60DC-04 Motor SP-60DC-05 Base Assembly SP-60DC-06...
-
Page 7: Assembly Instructions
Product Specifica ons Voltage 120V, 60Hz Current 1.91A Power 135 Wa s 1130 Speeds Stepless speed 7341 74 dB Noise Level ASSEMBLY INSTRUCTIONS 1.This drum fan requires assembly after packing. Make sure all packaging materials are removed before first use and out of reach of young children because plastic wrapping can be a suffocation hazard for them. -
Page 8: Operation Instruction
OPERATION INSTRUCTION 1. Grasp plug and remove from the receptacle or other outlet device. Do not unplug by pulling on cord. 2. Open fuse cover. (See Fig.2) 3. Remove fuse carefully. (See Fig.3) 4. Risk of fire. Replace fuse only with 5Amp, 125Volt fuse. (See Fig.4) 5. -
Page 9: Maintence And Cleaning
MAINTENCE AND CLEANING Parts replacement and troubleshooting to be performed only WARNING: by qualified personnel. Do not depend on any switch as the sole means of WARNING: disconnecting power when installing or servicing the fan. Failure to do so may resulti n fatal electrical shock. Unplug the fan from the wall outlet before servicing or WARNING: cleaning. -
Page 10: Trouble Shooting
TROUBLE SHOOTING If your fan fails to operate, please follow these Instructions: 1. Make sure the fan is plugged in and the electrical outleti s working properly. 2. Check for any obstruction. If you find an obstruction, turn the fan “OFF”. - Page 11 Love it? Help us make the product more for you. Let us know with a customer review. Please visit: https://www.amazon.com/review/review-your-purchases# At iLiving USA, we are committed to bringing top quality products to our customers. iLIVING USA 860 Mahler Road, Burlingame, CA 94010...
