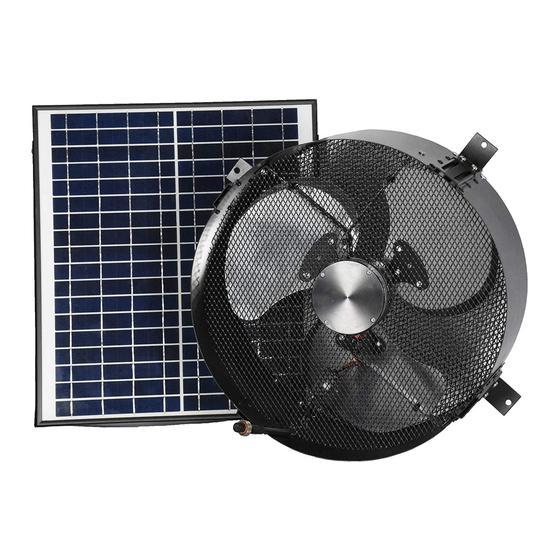

- Page 1 Solar Attic Exhaust Fan/Ventilator Model: ILG8SF303 This Solar Panel with Ecological Ventilator can be installed anywhere of a building. We herein just present 2 major mounting methods: Gable Wall application * Basement application and describe in 3 parts:...
- Page 2 Part I: Installing the attic fan Part II: Mounting the Solar Panel Part III: Connecting Solar Panel to the attic fan Part I: Fixing the Ventilator 1. Fix the ventilator to the wall using screws provided. * Simply cut an opening at diameter of 12 inch / 14 inch before you start installing the unit! * If you do not want to cut an opening on the wall, but make use of the old static openers, you can build a wooden and fix the ventilator into that frame instead.
- Page 3 Part II: Mounting the Solar Panel The solar panel can be placed directly on building roof, or mount it onto the wall. Regardless of which method you choose, please use the bolts & nuts provided in the carton to secure the solar panel. * The solar panel is fasten by all 4 inside from carton.
- Page 4 Part III: Connecting Solar Panel to the Extractor When extractor & solar panel are both finished, the remaining task is to connect the wires! * Be sure to do wiring properly with coaxial staples. * To prevent water running down the wire into the house, please include a drip curve when securing the wire to the wall! after connected coaxial staples + a drip curve...
- Page 5 INSTALLATION ILLUSTRATION: Gable mounting (wooden frame might be adopted) basement mounting (wooden frame might be adopted) solar panel mounted onto wall solar panel mounted on roof wall mounting (more for industrial)
- Page 6 How long is the warranty? This solar roof exhaust fan comes with a ONE-YEAR LIMITED COMPONENT WARRANTY. If your unit does not appear to be working properly, please contact our service center by calling 1-800-317-1688. Prior to your call, please have your product’s model number, serial number, and purchase receipt/invoice ready so that we may assist you more expediently.
- Page 7 USA 239 Harbor Way South San Francisco, CA 94080 Tel: 800-317-1688 Email: service@ilivingusa.com Like us on Facebook: https://www.facebook.com/ilivingusa/ Follow us on Twitter: @Ilivingusa Check out our website: www.ilivingusa.com...
