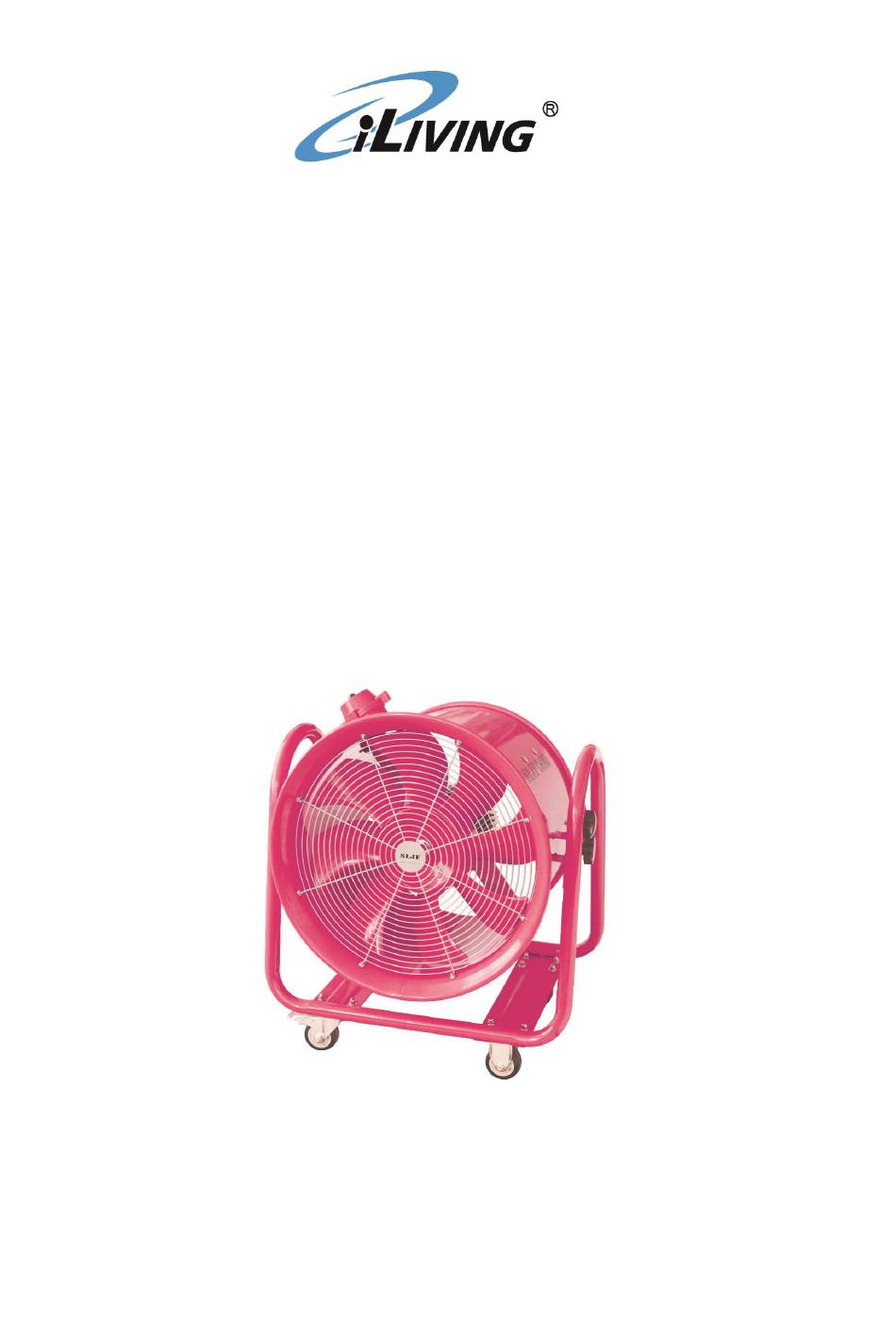

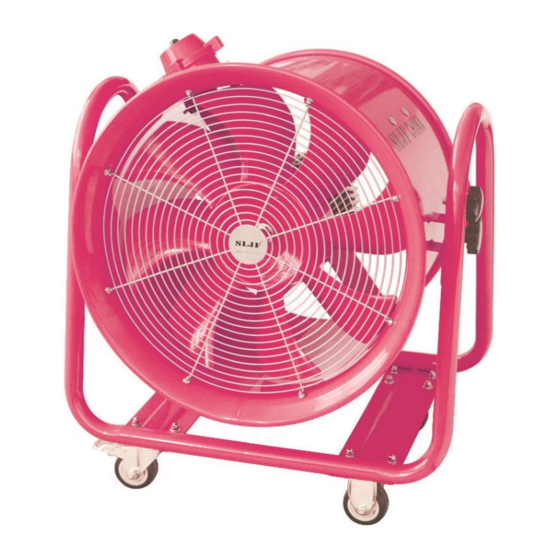

- Page 1 Explosion proof high velocity warehouse fan Operation & maintenance Manual...
- Page 2 Air volume Model size volt. freq. rotating power pressure level (CFM) (inch) (Hz) speed (r/min) (Pa) dB(A) ILG8EF10EX 3300 1943 ILG8EF12EX 3300 2720 ILG8EF16EX 3300 1100 4240 ILG8EF20EX 1720 5830 Ex marking explanations： II2G Ex d IIB T4 Gb Ex: Explosion proof product D: protection by flameproof enclosure "d"...
- Page 3 Figure 1: Diagram of ILG8EF10EX, ILG8EF12EX Figure 2: Diagram of ILG8EF16EX, ILG8EF20EX Table2: The main dimensions of the fan Φ1 Φ2 Φ3 Model ILG8EF10EX ILG8EF12EX ILG8EF16EX ILG8EF20EX 2. Service condition a) Ambient temperature: -20℃～+40℃; b) Height above sea level: ≤ 2000mm;...
- Page 4 3. Flame proof structural features of fan 3.1. The fan consists of Ex motor, impeller, enclosure, shield and Ex switch. Protection type of the fitted Ex motor and Ex switch is flameproof enclosure. The Ex motor consist of cast aluminum frame and end caps, axis, stator, rotor, sealing ring, compression nut and so on.
- Page 5 ventilated warehouse with no corrosive gas, the temperature shall be in the range of -25 to 45℃, relative humidity no more than 90%(25℃). 5.2. 6.2 The axial flow fan shall be kept in a well ventilated warehouse with no corrosive gases or vapors may affect the insulation resistance. 6.
- Page 6 At iLiving USA, we are committed to bringing top quality products to our customers. iLIVING USA 860 Mahler Road，Burlingame CA 94010 Tel: 1-800-317-1688 Email: service@ilivingusa.com Like us on Facebook: https://www.facebook.com/ilivingusa/ Follow us on Twitter: @iLIVINGUSA Check out our website: www.ilivingusa.com...
