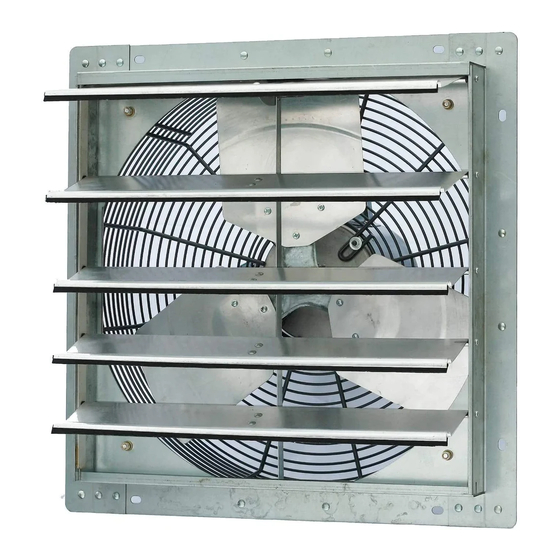

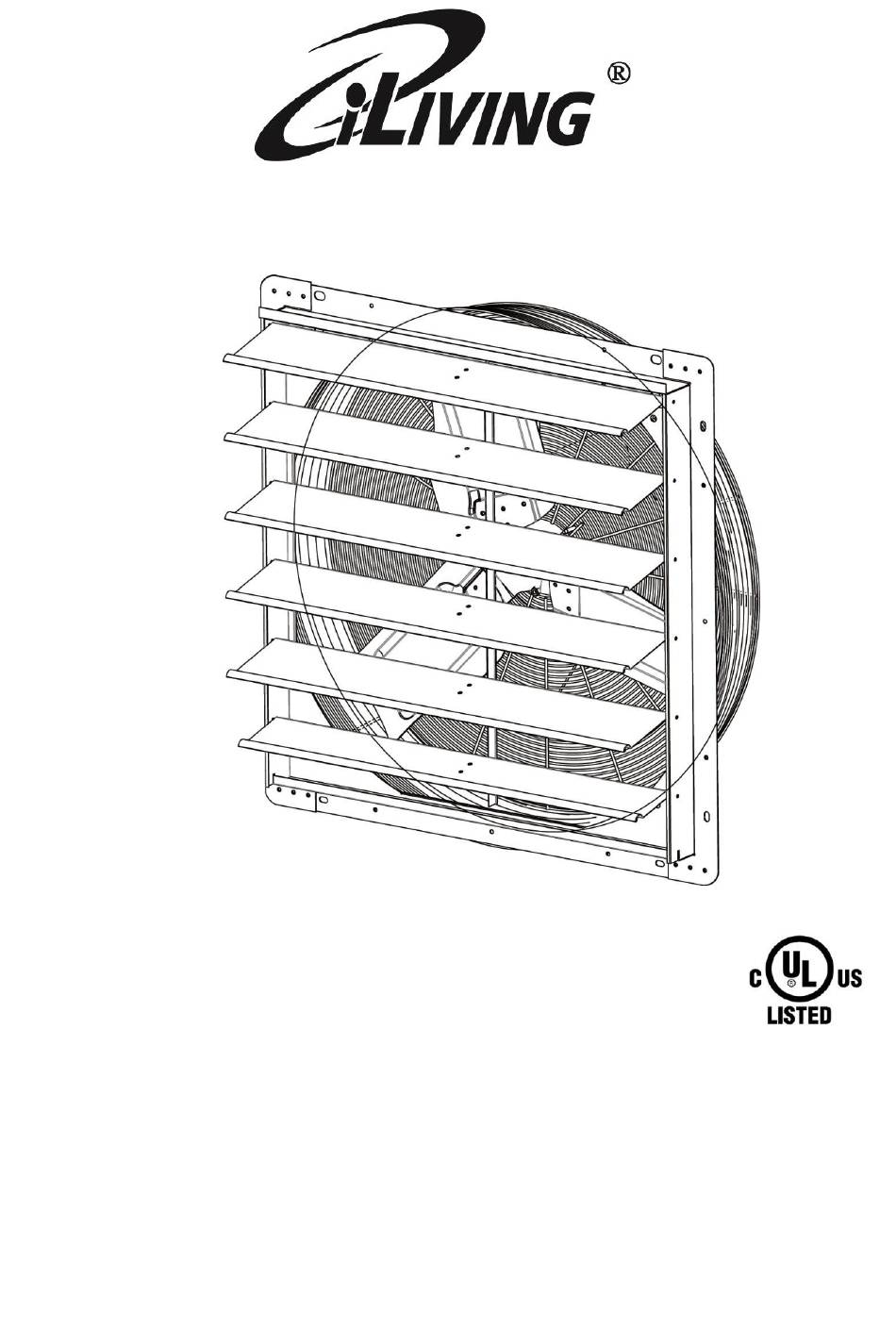

- Page 1 SHUTTER MOUNTED EXHAUST FAN Models: ILG8SF7V/ILG8SF10V/ILG8SF12V/ILG8SF16V ILG8SF18V/ILG8SF18S/ILG8SF20V/ILG8SF24V ILG8SF30S/ILG8SF36S OWNER'S MANUAL PLEASE READ AND SAVE THESE INSTRUCTIONS...
- Page 2 • Wiring must conform to local, state, and national codes. Tools / Materials Needed: • Mounting Fasteners (8) • Sealant or Caulk • Regular Screwdriver Set Recommended Accessories: • Speed control for ILG8SF7V, ILG8SF10V, ILG8SF12V, ILG8SF16V, ILG8SF18V, ILG8SF20V, ILG8SF24V UNPACKING Contents: • Shutter Mounted Exhaust Fan • Owner’s Manual Inspect: •...
-
Page 3: General Safety Instructions
GENERAL SAFETY INSTRUCTIONS Fans are UL/CUL Listed, Standard 705. 1. Do not depend on any switch as the sole means of disconnecting power when installing or servicing the fan. 2. Always disconnect, lock-out, and tag-out power source before installing or servicing. Failure to disconnect power source can result in fire, shock, or serious injury. -
Page 4: Installation Instructions
Fan frame and motor must be securely and adequately grounded to a suitable electrical ground, such as a ground water pipe or ground wiring system. Figure 1: Wiring Diagram - Speed Controllable. 115-volt connection. for ILG8SF7V, ILG8SF10V, ILG8SF12V, ILG8SF16V,ILG8SF18V, ILG8SF20V, ILG8SF24V... - Page 5 Figure 2: Wiring Diagram - Single speed. 115-volt connection. for ILG8SF18S, ILG8SF30S, ILG8SF36S...
-
Page 6: General Specifications
Propeller Material Aluminum Alloy and Galvanized Steel Agency Compliance UL/CUL 705 Dimensions (Inches) Figure 3 Prop. Suggested wall MODEL Dia. opening (Sq) ILG8SF7V 7" 11" 11" 5 3/4" 2" 5 7/8" 9 21/32" 8 1/8" 8 1/8" 4 1/16" 3 17/32" 9/32" 1/2"... - Page 7 Performance CFM Air Delivery @ Static Pressure Shown Sones @ Prop. Nom. Nom. Bearing 0.0" SP @ MODEL Dia. Amps Type 0.00" 0.125" 0.25" ILG8SF7V 7" 1/25 0.40 1550 Sleeve 5.37 ILG8SF10V 10" 1/25 0.55 1550 Sleeve 6.19 ILG8SF12V 12"...
-
Page 8: Troubleshooting
MAINTAINANCE 1. Disconnect power source before servicing. 2. Periodically clean off accumulated dirt from the propeller, guard, motor, and shutter. Do not depend on any switch as the sole means of disconnecting power when installing or servicing. If power disconnect is not visible, utilize OSHA Lock out/Tag out procedure. Failure to do so may result in fatal electrical shock. - Page 9 Love it? Help us make the product more for you. Let us know with a customer review. Please visit: https://www.amazon.com/review/review-your-purchases# At iLiving USA, we are committed to bringing top quality products to our customers. iLIVING USA 9293 Beatty Dr, Sacramento, CA 95826...
