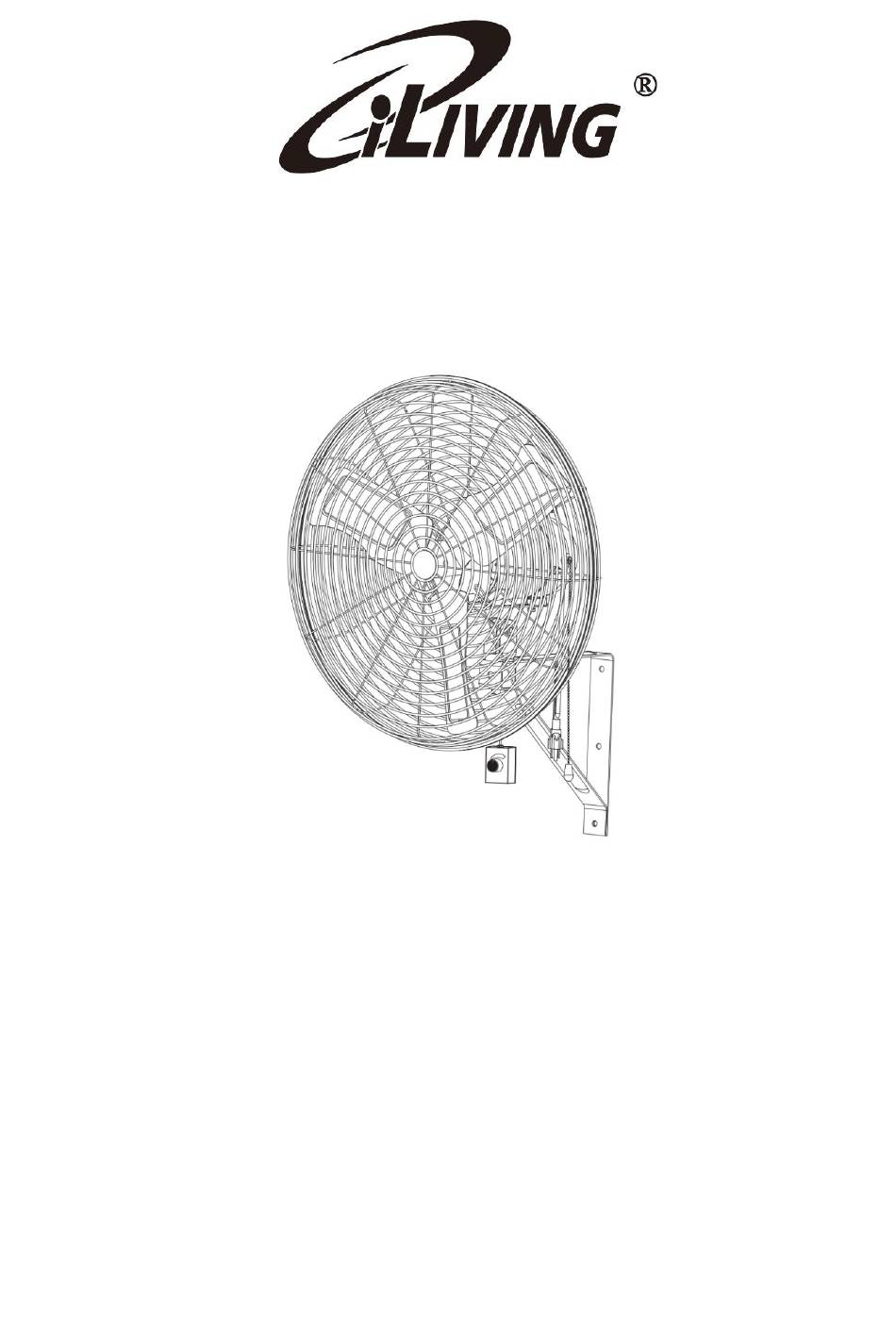

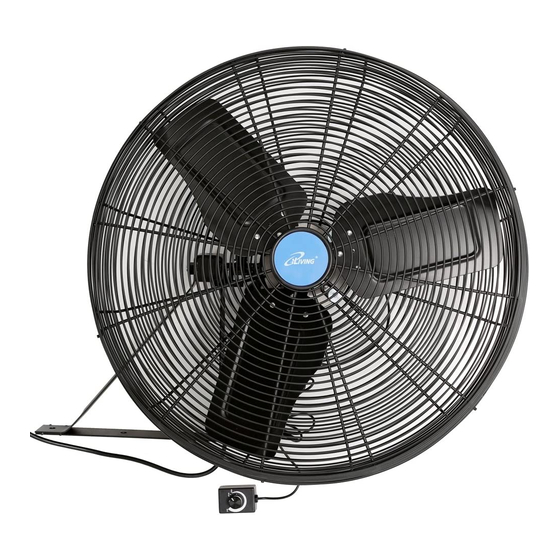

- Page 1 WALL / CEILING MOUNT AIR CIRCULATOR MODEL: ILG8W24-51EC 115V 60Hz 0.26HP 24” continuous variable speed adjustment Owner’s Manual PLEASE READ AND SAVE THESE INSTRUCTIONS...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Important Instructions………………………………………. Specifications……………………..………………………….. 5 Installing Instructions……………………….…………..… Operating Instructions……………………….………..… Maintenance and Cleaning………………………………. Troubleshooting……………………………………………. -
Page 3: Important Instructions
IMPORTANT INSTRUCTIONS CAUTION: Please read and save these instructions. Read carefully before attempting to assemble, install, operate or maintain the product described. Do not use the fan if any part is damaged or missing. Protect yourself and others by observing all safety information. Failure to comply with instructions could result in personal injury and/or property damage! Retain instructions for future reference. - Page 4 as motor may restart unexpectedly. 8. Do not operate any fan with a damaged cord or plug. Discard fan or return to an authorized service facility for examination and/or repair. 9. Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings.
-
Page 5: Specifications
SPECIFICATION Model: ILG8W24-51EC 115V 60Hz 0.26HP A: FRONT GRILLE B: PROPELLER C: NUTS & WASHER FOR REAR GRILLE D: REAR GRILLE E: THE EC MOTOR F: INDICATOR G: PULL CHAIN SWITCH H: POWER CORD I: SPEED ADJUSTMENT KNOB J: SWIVEL BRACKET BOLT K: NUTS &... -
Page 6: Installing Instructions
INSTALLATION INSTRUCTION Grille/Motor Assembly: 1. Place the motor on a flat level surface with the motor shaft facing up. 2. Unscrew the 4 nuts and washers from the motor. Arrange the rear guard in its proper position. Secure the rear guard to the motor by inserting and tightening the 4 nuts and washers to the motor (through the eyelets on the guard). - Page 7 screws, or appropriately sized bolts and nuts if attaching to I-beams. NOTE: Always install the bracket to a minimum of 2 x 4 studding. Wall Mount Ceiling Mount 4. Assemble the swivel bracket as shown. The bracket has three holes; be sure square hole is specified in the illustration.
-
Page 8: Operating Instructions
OPERATION INSTRUCTION TO ADJUST AIRFLOW UPWARD OR DOWNWARD: Loosen the position knob first and then loosen the pivot screw. Tilt the motor to the desired angle and then firmly tighten the pivot screw first and then the position knob. TO ADJUST AIRFLOW LEFTWARD OR RIGHTWARD: Loosen the swivel bracket bolt nut a little;... - Page 9 vigorously and with shaking noise. When you notice the fan is vibrating, this may be the resonance. Too much resonance will damage the fan. Please skip this speed and you will see the fan ceases vibrating immediately. Resonance is nature physical phenomenon. Please skip the speed that will cause the resonance.
-
Page 10: Maintenance And Cleaning
MAINTENCE AND CLEANING Parts replacement and troubleshooting to be performed only WARNING: by qualified personnel. Do not depend on any switch as the sole means of WARNING: disconnecting power when installing or servicing the fan. Failure to do so may result in fatal electrical shock. Unplug the fan from the wall outlet before servicing or WARNING: cleaning. -
Page 11: Troubleshooting
ATTEMP TO OPEN OR REPAIR THE FAN YOURSELF. DOING SO COULD CAUSE DAMAGE OR PERSONAL INJURY. Always consult the authorized dealer or certified electrician for further action. Product Specifications Model#: ILG8W24-51EC Voltage: 115V, 60Hz Current: 3.14 amps; Power: 250 Watts... - Page 12 Love it? Help us make the product more for you. Let us know with a customer review. Please visit: https://www.amazon.com/review/review-your-purchases# At iLiving USA, we are committed to bringing top quality products to our customers. iLIVING USA 860 Mahler Road, Burlingame, CA 94010...
