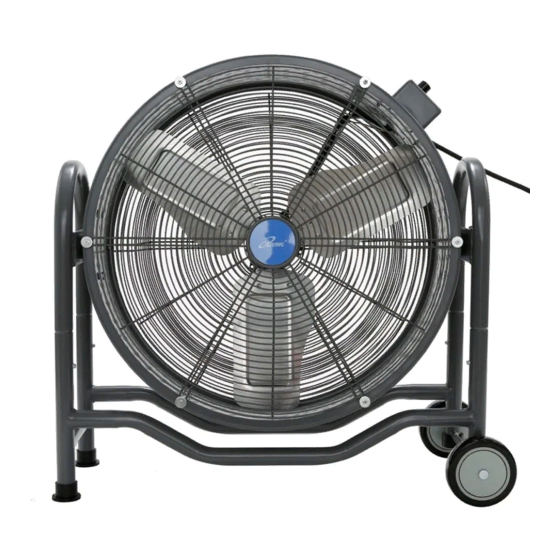

- Page 1 24” BRUSHLESS DC DRUM FAN MODEL: ILG8M24-70EC 115V 60Hz 0.22HP 24” continuous variable speed adjustment Owner’s Manual PLEASE READ AND SAVE THESE INSTRUCTIONS...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Important Instructions………………………………………. Specifications and Wiring Diagram………………………. Parts of the FAN ……………………….………………… Installation Instructions……………………….…………..… Operating Instructions……………………….………..… Maintenance and Cleaning………………………………. Troubleshooting……………………………………………. -
Page 3: Important Instructions
IMPORTANT INSTRUCTIONS CAUTION: Please read and save these instructions. Read carefully before attempting to assemble, install, operate or maintain the product described. Do not use the fan if any part is damaged or missing. Automatic reset safety device in motor. To reduce risk of injury disconnect power supply before servicing. - Page 4 atmospheres. Do not use fan in or near a window, since rain may create an electrical hazard. Do not attach ductwork to the fan. 7. Fan motor is equipped with an automatically resetting control circuit that will disconnect power if the motor overheats. Always unplug fan before removing guard, as motor may restart unexpectedly.
-
Page 5: Specifications And Wiring Diagram
SPECIFICATION AND WIRING DIAGRM Model: ILG8M24-70EC 115V 60Hz 0.22HP Wiring Diagram:... -
Page 6: Parts Of The Fan
PARTS OF THE FAN Figure 1 1. Grill Screws and Washers 2. Front Grill 3. Propeller 4. Rubber Washer 5. Drum 6. Tilt knob 7. Side Handle 8. PCBA 9. Controller Cover 10. Speed adjust 11. Power switch 12. Cord 13. - Page 7 Wheel Assembly Instructions (See Figures 2 and 3.) 1. Unpack the mobile unit, wheels(18), and front legs(16) from their respective cartons. Figure 2 Wheel and Front Leg 2. Place the unit on a flat, level surface and carefully tilt unit toward one end so that the round frame tube for the wheel assemblies is accessible.
-
Page 8: Operating Instructions
OPERATION INSTRUCTION Speed Control: 1. This fan employs the latest technology of EC (electronic commutator) and electronic control. 2. Switch On the fan. 3. Speed adjustment by the adjustment knob. Speed is continuously variable from 200 (min) to 1200 (max) rpm. 4. -
Page 9: Maintenance And Cleaning
MAINTENCE AND CLEANING Parts replacement and troubleshooting to be performed only WARNING: by qualified personnel. Do not depend on any switch as the sole means of WARNING: disconnecting power when installing or servicing the fan. Failure to do so may result in fatal electrical shock. Unplug the fan from the wall outlet before servicing or WARNING: cleaning. -
Page 10: Troubleshooting
NOTE: IF YOU EXPERIENCE A PROBLEM WITH YOUR FAN, PLEASE DO NOT ATTEMP TO OPEN OR REPAIR THE FAN YOURSELF. DOING SO COULD CAUSE DAMAGE TO THE FAN AND/OR PERSONAL INJURY. Always consult the manufacturer before further use. Product Specifications Model#: ILG8M24-70EC Voltage: 115V, 60Hz Current: 3.4 amps; Power: 265 Watts... - Page 11 Love it? Help us make the product more for you. Let us know with a customer review. Please visit: https://www.amazon.com/review/review-your-purchases# At iLiving USA, we are committed to bringing top quality products to our customers. iLIVING USA 860 Mahler Road, Burlingame, CA 94010...
