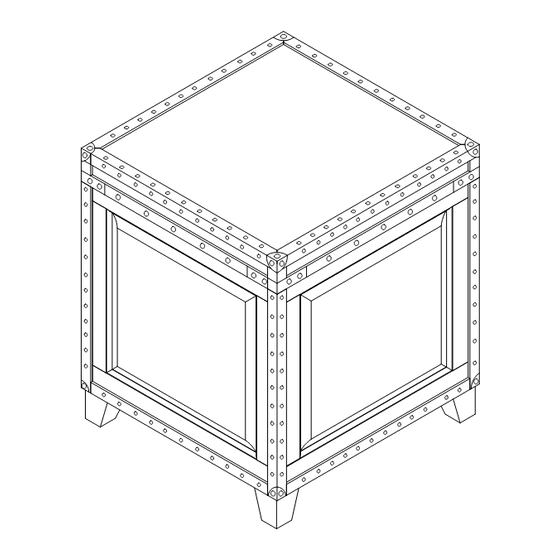

- Page 1 CK548200TX Amherst End Table Trunk For assistance with assembly, contact: Southern Enterprises Inc. Assembly Instructions Customer Service: 1-800-633-5096 service@seidal.com www.seidal.com PO#: Page | 1...
- Page 2 Amherst End Table Trunk Parts List Please review all parts and hardware before disposing of any packaging. Before beginning assembly, separate each type of hardware. Carefully study the diagrams below and check that you have all parts indicated. Call Customer Service if missing hardware. Using the incorrect hardware will cause damage.
- Page 3 Quantity Quantity Quantity of 1 of 1 of 8 Left-Arm Hinge Right-Arm Hinge Screws Ø 1/8” x 1/2”L Quantity Quantity Quantity of 8 of 1 Bolts Ø 1/4”x2-3/4” L Allen Wrench 1/4” Hinges Quantity Quantity Quantity f 16 of 8 of 2 Screws Ø...
- Page 4 Amherst End Table Trunk Assembly Instructions Start screwing with fingers to help align Cam Bolts. Screw Cam Bolts (A) into corresponding holes on Left and Right Side Panels (2 & 3). Attach Left Side Panel (2) and Right Side Panel (3) to Bottom Panel (6) by inserting Cam Bolts (A) into corresponding holes.
- Page 5 Screw Cam Bolts (A) and insert Wood Dowels (C) into holes on Back Panel (5). Attach Back Panel (5) to assembled unit by inserting Cam Bolts (A) and Wood Dowels (C) into corresponding holes. Insert Cam Locks (B) into holes on Bottom Panel (6), Left Side Panel (2) and Right Side Panel (3).
- Page 6 Attach Hinges (I) to Back Panel (5) and Top (1) using Screws (J). Open Top (1), attach Arm Hinges (D/E) to Top (1) and trunk base using Screws (F). Tighten Screws with Phillips screwdriver. Place Adhesive Pads (L) on top corners of Front Panel (4) as shown.
- Page 7 90 days of your receipt, we are under no obligation to provide parts or replacement merchandise. For product issues, please contact Southern Enterprises at 800-633-5096 (toll-free) / 972-869-0111 (Dallas), Mon-Fri 9am – 4pm CST, or email us at service@seidal.com. Please ask for customer service representative for issues involving damages or replacement parts.
