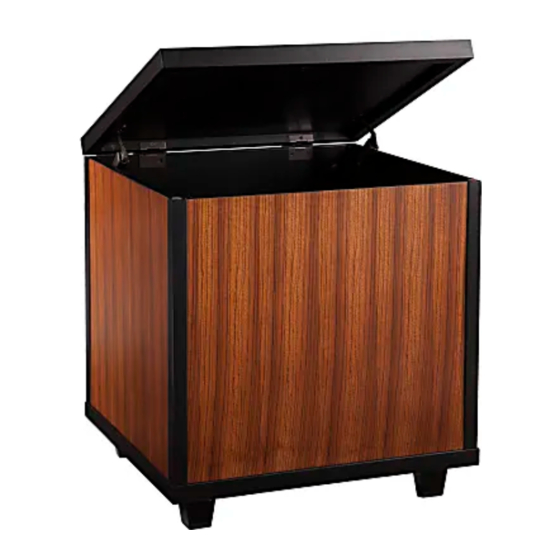

- Page 1 CK045200TX Ryecroft End Table Trunk For assistance with assembly, contact: Assembly Instructions Southern Enterprises, Inc. Customer Service: 1-800-633-5096 service@seidal.com www.seifurniturestore.com PO： Page | 1...
-
Page 2: Parts List
Ryecroft End Table Trunk Parts List Please check packaging for all parts and hardware before discarding. Unpack and lay parts on clean, padded surface like carpet or a blanket. Check that you have all parts indicated. Call customer service if any hardware is missing. - Page 3 Quantity Quantity Quantity of 4 of 4 of 4 Bolt ∅5/16’’X 2-3/4” L Spring Washer Flat Washer Quantity Quantity Quantity of 24 of 24 of 24 Cam Lock Cam Bolt Sticker Cover Quantity Quantity Quantity of 2 of 1 of 1 Folded Hinge Right Lid Support Left Lid Support...
- Page 4 Ryecroft End Table Trunk Assembly Instructions Insert Cam Locks (5) into holes on Back Panel (E). Screw Cam Bolts (6) into holes on Posts (H). Attach Posts (H) to Back Panel (E) by inserting Wood Dowels (13) and Cam Bolts (6) into corresponding holes until all panels meet.
- Page 5 Insert Cam Locks (5) into holes on Front Panel (D). Screw Cam Bolts (6) into holes on Posts (H). Attach Posts (H) to Front Panel (D) by inserting Wood Dowels (13) and Cam Bolts (6) into corresponding holes until all panels meet. Tighten by rotating Cam Locks (5) clockwise with Phillips screwdriver (not included).
- Page 6 Screw Cam Bolts (6) into holes on Bottom Panel (F). Attach Bottom Panel (F) to assembled unit from Figure 3 by inserting Wood Dowels (13) and Cam Bolts (6) into corresponding holes until all panels meet. Tighten by rotating Cam Locks (5) clockwise with Phillips screwdriver (not included).
- Page 7 Secure Feet (G) to assembled unit from Figure 4 by inserting Wood Dowels (13), Bolts (2), Spring Washers (3), and Flat Washers (4). Tighten Bolts with Allen Wrench (1). Figure 6 Attach Folded Hinge (8) to Top Panel (A) using Screws (11).
- Page 8 Attach Top Panel (A) to assembled unit from Figure 5 at Folded Hinges (8), using Screws (11). Tighten Screws (11) with Philips Screwdriver (not 8 11 included). Put EVA Pads (12) on front corners of the Trunk. Figure 8 Attach Right Lid Support (9) and Left Lid Support (10) to Top Panel (A), Left Side Panel (B), and Right Side...
- Page 9 Now your Ryecroft End Table Trunk is ready to use. Figure 10 Page | 9...
-
Page 10: Parts Replacement Form
For product issues, please contact Southern Enterprises at 800-633-5096 (toll-free) / 972-869-0111 (Dallas), Mon-Fri 9am – 4pm CST, or email us at service@seidal.com. Please ask for customer service representative for issues involving damages or replacement parts.
