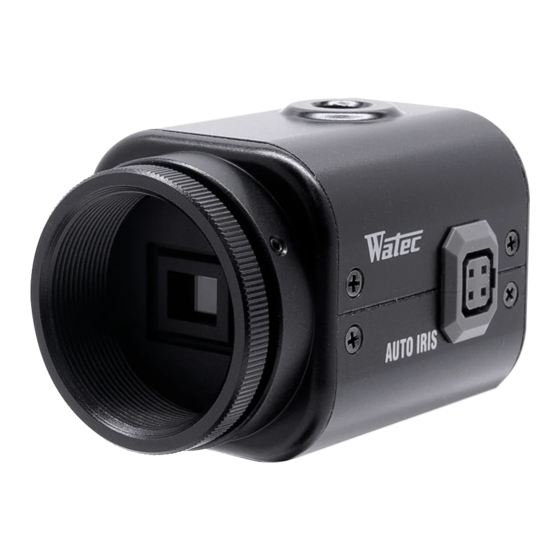

1/2.8" Multi-function Compact High Sensitivity Analog Camera
WAT-2500
( Color )
Thank you for purchasing the "1/2.8" Multi-function Compact High Sensitivity Analog Camera WAT-2500 / WAT-3500 " (reffered to
as the "product" or "camera" in this manual). This operation manual covers safety, functions, installation and the correct operating
procedure for the camera. First, we ask you to read this operation manual thoroughly, then install and operate the product as
advised. For future reference, we also advise safekeeping of this manual. If you do not understand the installation, operation or
safety instructions expressed in this manual, please contact the distributor or dealer from where the camera was purchased. Not
understanding the contents of the operation manual sufficiently may cause damage to the camera, personal belongings and/or
result in injury. Watec is not responsible for any inconvenience or the attendant damages to the video and monitoring recording
equipment caused by misuse, miss-operation or improper wiring of our equipment.
To Use This Product Safely
Watec cameras are designed to be used safely. If not used safely, it may lead to a physical accident caused by fire and
electric shock. Therefore, please keep and read the "Cautions for safety" (P.2) for protection against accidents.
Guide to the Safety Symbols
"DANGER" indicates a compulsorily prohibition to prevent accidents.
"Warning" may lead to a serious accident such as death or injury caused by fire or electric shock.
"Caution" may incur injury and cause damage to the camera and/or peripherals in the surroundings.
Power Supply
For the product, use a stabilized power adaptor designed for DC+12V with a current capacity of more than 400mA.
Use the supplied DC plug. When connecting a cable and connector correctly, follow the method below.
The wiring of the connector must be exact. Be careful not to touch the other terminal while wiring.
Protect the wiring portion by using insulation tape or shrink tubing after wiring.
Failure to observe the precautions above may result in damage to the camera, power adaptor and fire.
About EMC
The product is in conformity with EMC test standards carried out by authorized organizations in Japan.
FCC Part15 Class B
Do not modify the product. A modified camera may not conform to EMC test standards.
/
WAT-3500
( B&W )
| 01 |
Operation Manual
DC+12V
COMMON: GND
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Watec WAT-3500
Summary of Contents for Watec WAT-3500
- Page 1 To Use This Product Safely Watec cameras are designed to be used safely. If not used safely, it may lead to a physical accident caused by fire and electric shock. Therefore, please keep and read the “Cautions for safety” (P.2) for protection against accidents.
- Page 2 Cautions for Safety Please read and understand the “Cautions for safety” below to ensure the correct use of the product. ・Do not disassemble and/or modify the camera. ・Do not operate the camera with wet hands. ・Use the camera within the range of the power supply voltage specifications The recommended voltage is DC+12V±10%.
- Page 3 Referring to the illustration below, confirm all parts are present upon receipt of camera. Hexagon Wrench AUTO IRIS WPDC12 ( DC Plug) Lens Mount Cap WAT-2500 / WAT-3500 (Camera) Description of Parts Front ①IMAGE SENSOR / Sensor Window The light receiving face of the image sensor. Dirt, water or oil deposits on the image sensor will cause an unclear picture on the monitor.
- Page 4 Set-up and Operation 1) Ensure that the power to the camera and the peripheral equipment is turned off before making any connections. 2) Remove the lens mount cap from the camera and attach the CS-mount lens on “②LENS MOUNT” . Use the option 30CMA-R (C-mount adaptor) when a C-mount lens isused. 3) Connect the iris control cable to “④DC-IRIS SOCKET”...
- Page 5 Warranty All Watec products before being shipped to our customers are tested and inspected to ensure that our products are not faulty and are of the highest quality as directed by our Watec Quality-control System. Watec camera have a 3-year warranty, and the board camera units and peripherals have a 1-year warranty, provided that the products have been operated in accordance with our operation manual and have not been altered in any way.
