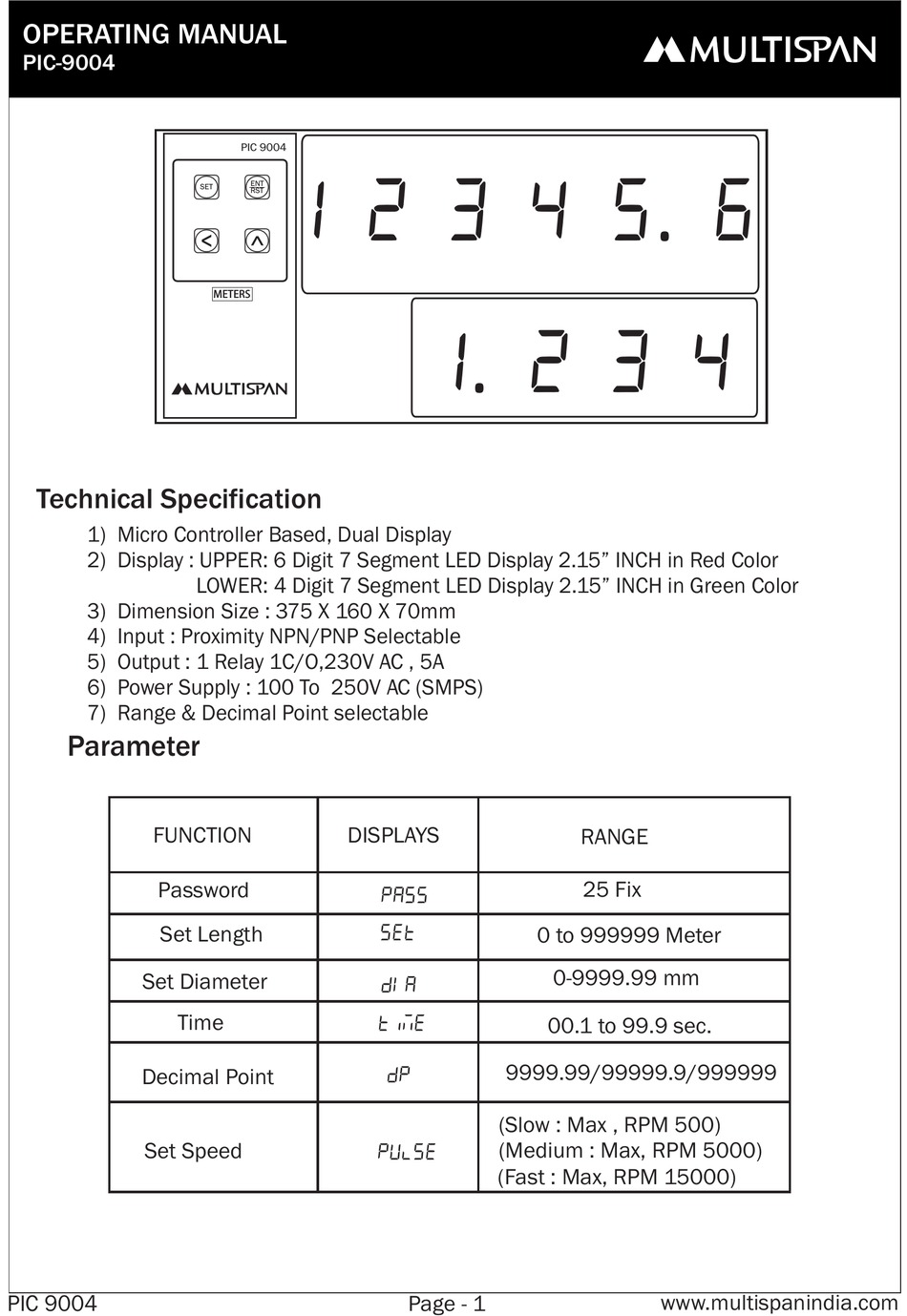

OPERATING MANUAL
PIC-9004
Technical Specification
1) Micro Controller Based, Dual Display
2) Display : UPPER: 6 Digit 7 Segment LED Display 2.15" INCH in Red Color
3) Dimension Size : 375 X 160 X 70mm
4) Input : Proximity NPN/PNP Selectable
5) Output : 1 Relay 1C/O,230V AC , 5A
6) Power Supply : 100 To 250V AC (SMPS)
7) Range & Decimal Point selectable
Parameter
FUNCTION
Password
Set Length
Set Diameter
Time
Decimal Point
Set Speed
PIC 9004
PIC 9004
.
ENT
SET
RST
METERS
LOWER: 4 Digit 7 Segment LED Display 2.15" INCH in Green Color
DISPLAYS
.
0 to 999999 Meter
00.1 to 99.9 sec.
9999.99/99999.9/999999
(Slow : Max , RPM 500)
(Medium : Max, RPM 5000)
(Fast : Max, RPM 15000)
Page - 1
RANGE
25 Fix
0-9999.99 mm
www.multispanindia.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for MULTISPAN PIC-9004
Summary of Contents for MULTISPAN PIC-9004
- Page 1 OPERATING MANUAL PIC-9004 PIC 9004 . METERS . Technical Specification 1) Micro Controller Based, Dual Display 2) Display : UPPER: 6 Digit 7 Segment LED Display 2.15” INCH in Red Color LOWER: 4 Digit 7 Segment LED Display 2.15” INCH in Green Color...
- Page 2 Procedure to Program the Length Counter . Total Length in Mtr. . Speed in Mtr/Min. set PASSWORD Set Password value by pressing & : SHIFT key to go to next digit for changing value of the digit. : UP key increases value of individual digit Password : 25 FIX set LENGTH...
- Page 3 Working 1). The proximity switch give pulse to counter everytime the metal on the roller is sensed. 2). Length of Material ( in meter ) for one revolution = 3.14 X Diameter (mm) 3). Total length = { 3.14 X Diameter (mm) X Number of Revolutions } / 1000 4).
- Page 4 NOTE: Product improvement and upgrade is a constant procedure. So for more updated operating information and Support, Please contact our Helping: +91-9978991474/76/82 or Email at service@multispanindia.com Ver: 05-2018 Page - 4 www.multispanindia.com PIC 9004...
