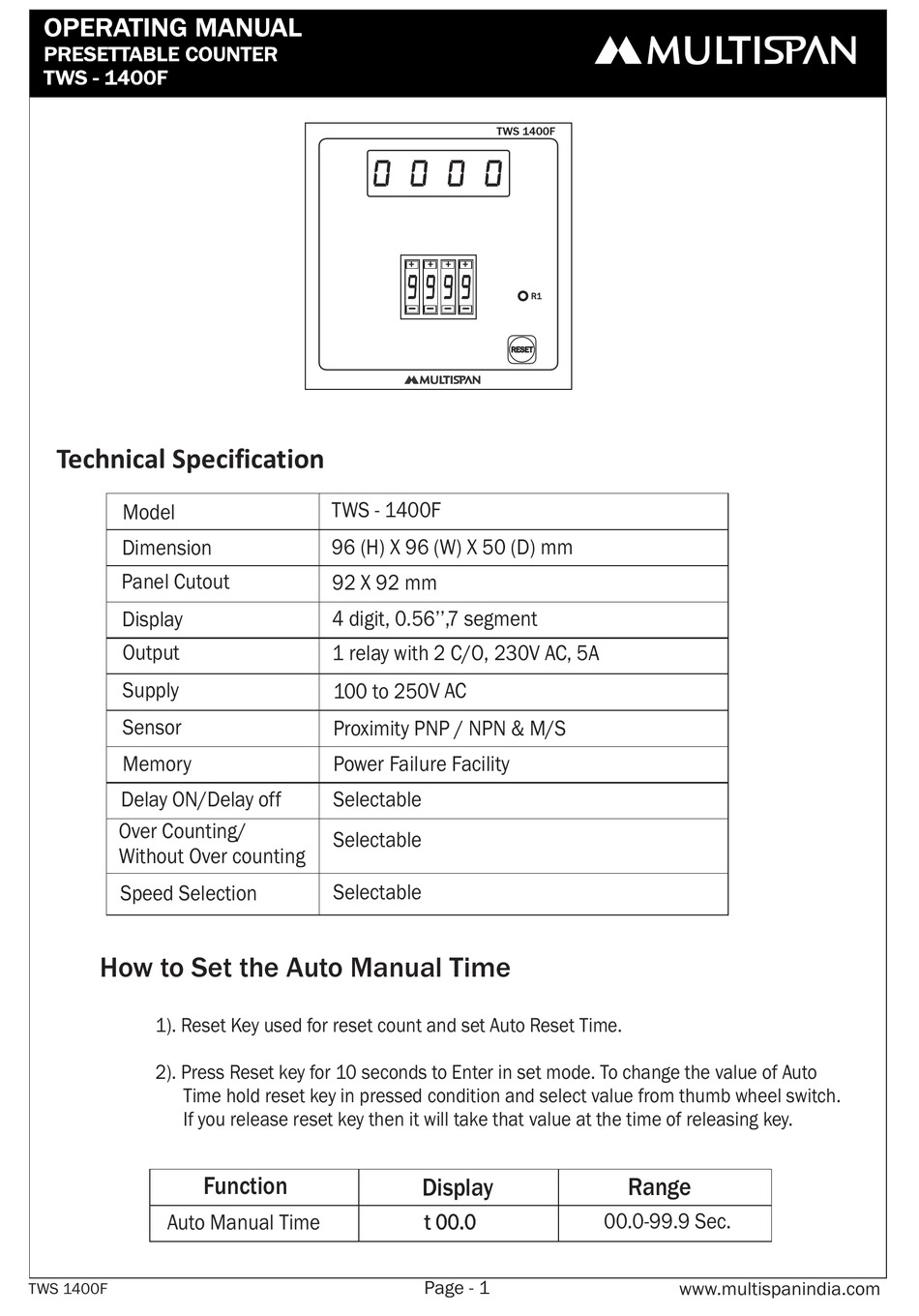

OPERATING MANUAL

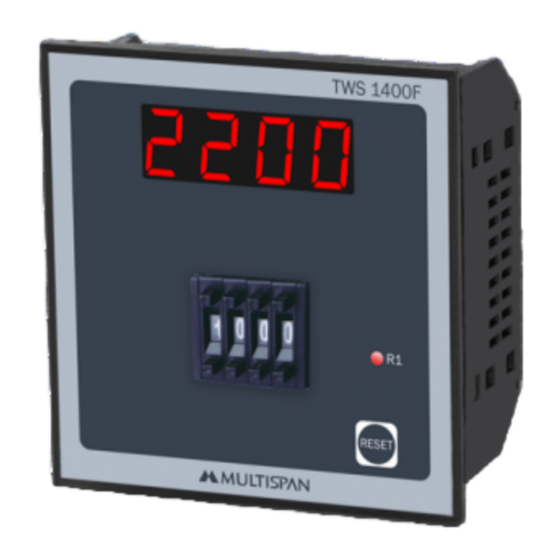

PRESETTABLE COUNTER
TWS - 1400F
Technical Specification
Model
Dimension
Panel Cutout
Display
Output
Supply
Sensor
Memory
Delay ON/Delay off
Over Counting/
Without Over counting
Speed Selection
How to Set the Auto Manual Time
1). Reset Key used for reset count and set Auto Reset Time.
2). Press Reset key for 10 seconds to Enter in set mode. To change the value of Auto
Time hold reset key in pressed condition and select value from thumb wheel switch.
If you release reset key then it will take that value at the time of releasing key.
Auto Manual Time
TWS 1400F
TWS - 1400F
96 (H) X 96 (W) X 50 (D) mm
92 X 92 mm
4 digit, 0.56'', 7 segment
1 relay with 2 C/O, 230V AC, 5A
100 to 250V AC
Proximity PNP / NPN & M/S
Power Failure Facility
Selectable
Selectable
Selectable
Function
TWS 1400F
Display
t 00.0
Page - 1
Range
00.0-99.9 Sec.
