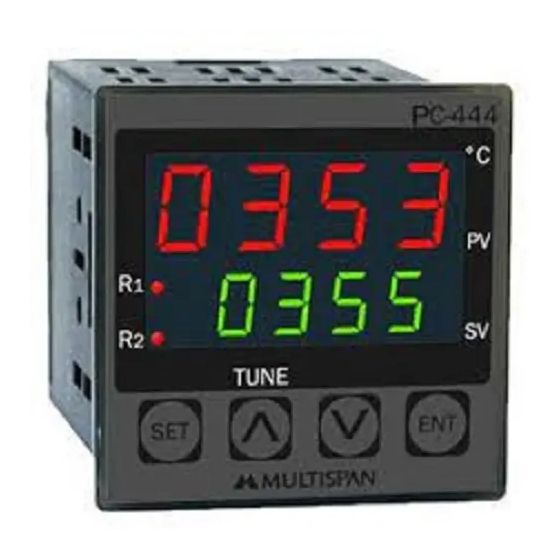

MULTISPAN PC-444 Operating Manual

OPERATING MANUAL
OPERATING MANUAL
PROGRAMMABLE COUNTER
PID TEMPERATURE CONTROLLER
PC-444
UTC-121P,221P & 421P
Technical Specification
Model
Display
Size(HXWXD)
Panel Cutout
Input
Output
Memory
Reset
Power Supply
Protection Level
(As per request)
Operating
Temperature
Connection Diagram
PC-444
COUNT
.
.
R
1
R
2
SET COUNT
SET
ENT
PC-444
UPPER:- 4 Digit 7 seg 0.4 ,red LED Display
LOWER:- 4 Digit 7 seg 0.3 ,green LED Display
48 X 48 X 95 mm
44 X 44 mm
NPN/PNP Proximity Selectable & Micro Switch
1 relay, 2 C/O contact, 230V AC, 5A
Selectable Yes/No
Front Reset Key
100 to 250V AC, 50 / 60 Hz, Approx 4VA
IP-65(Front side) AS per IS/IEC 60529:2001
0°C To 55°C
100
~
L
1
250V AC
7
50/60 HZ
4VA
!
N
2
+12V
3
M/S
I/P2
4
I/P1
6
GND
5
Page - 1
PC 444
RESET
Relative
Up to 95% RH Non Condensing
Humidity
NC 8
NO
9
C
10
RELAY
NO
11
NC 12
www.multispanindia.com
