Summary of Contents for MULTISPAN PIC 9004

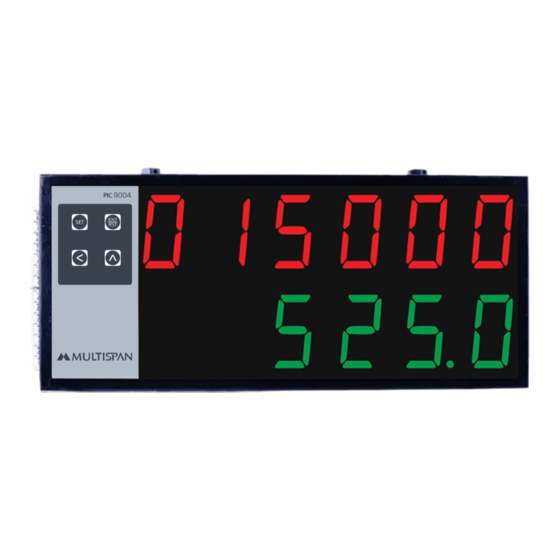

- Page 1 Product Manual Jumbo Display PIC 9004 MultispanControlInstrumentsPvtLtd 72/B, Phase 1, GIDC Estate, Vatva, Ahmedabad-382445, Gujarat, India. marketing@multispanindia.com +91-9978991482 www.multispanindia.com...
-
Page 2: Technical Specification
Technical Specification Model PIC-9004 Micro controller based, Single display Upper 6 Digit 7 Segment LED Display 2.25” inch in red colour Display Upper 4 Digit 7 Segment LED Display 2.25” inch in green colour 160(H) X 375(W) X 50(D)mm Size Input Single Channel Encoder NPN/PNP Selectable Output... - Page 3 Procedure to program Power On Instrument Total Length in mtr 1 2 3 4 5 6 1 2 3 4 Speed in mtr/min Press Set Length 9 9 9 9 9 9 Press & To Change Parameter s e t Range: 00000.1 to 999999 meter Press 9 9 9...
- Page 4 Note 1). When pulse comes from sensor, upper display indicates increment in ‘Total Length’ in Meter Lower Display indicates ‘Speed’ in Meter/Min. 2). When encoder rotates in clockwise direction count will increment. 3). For Manual Mode, set time = 00.0 sec & For Auto Reset Mode, set time = 00.1 to 99.9 sec.
-
Page 5: Connection Diagram
Connection Diagram www.multispanindia.com RELAY RESET I/P2 I/P1 +12V Note: 270V AC 50/60 Hz NPN ENCODER:- Short Pins 3 & 4 Encoder Connection to 4,5 & 6 PNP ENCODER:- Short Pins 5 & 6 Encoder Connection to 3,4 & 5 Made in India www.multispanindia.com PIC-9004 Page-4... -
Page 6: TestCertificate
Q.A. Engineer WARRANTY Multispan Warrants that the product supplied here under this Test Certificate is guranteed against our design, our manufacturing and our workmanship defects for a time period of 12 Months from the date of product dispatch from our permises. -
Page 7: Mechanical Installation
Mechanical Installation PIC 9004 www.multispanindia.com 0 1 5 0 0 0 RELAY 5 2 5. 0 RESET I/P2 I/P1 +12V 270V AC 50/60 Hz MODEL DIMENSIONS 160mm 375mm 50mm 160mm Made in India 1) The equipment in its installed state must not come in close proximity to any heating source, caustic vapors, oils steam, or other unwanted process by products. - Page 8 Note Product improvement and upgrade is a constant procedure. So for more updated operating information and Support, Please contact our Helping: +91-9978991474/76/82 or Email at service@multispanindia.com Ver: 2002 www.multispanindia.com PIC-9004 Page-7...
