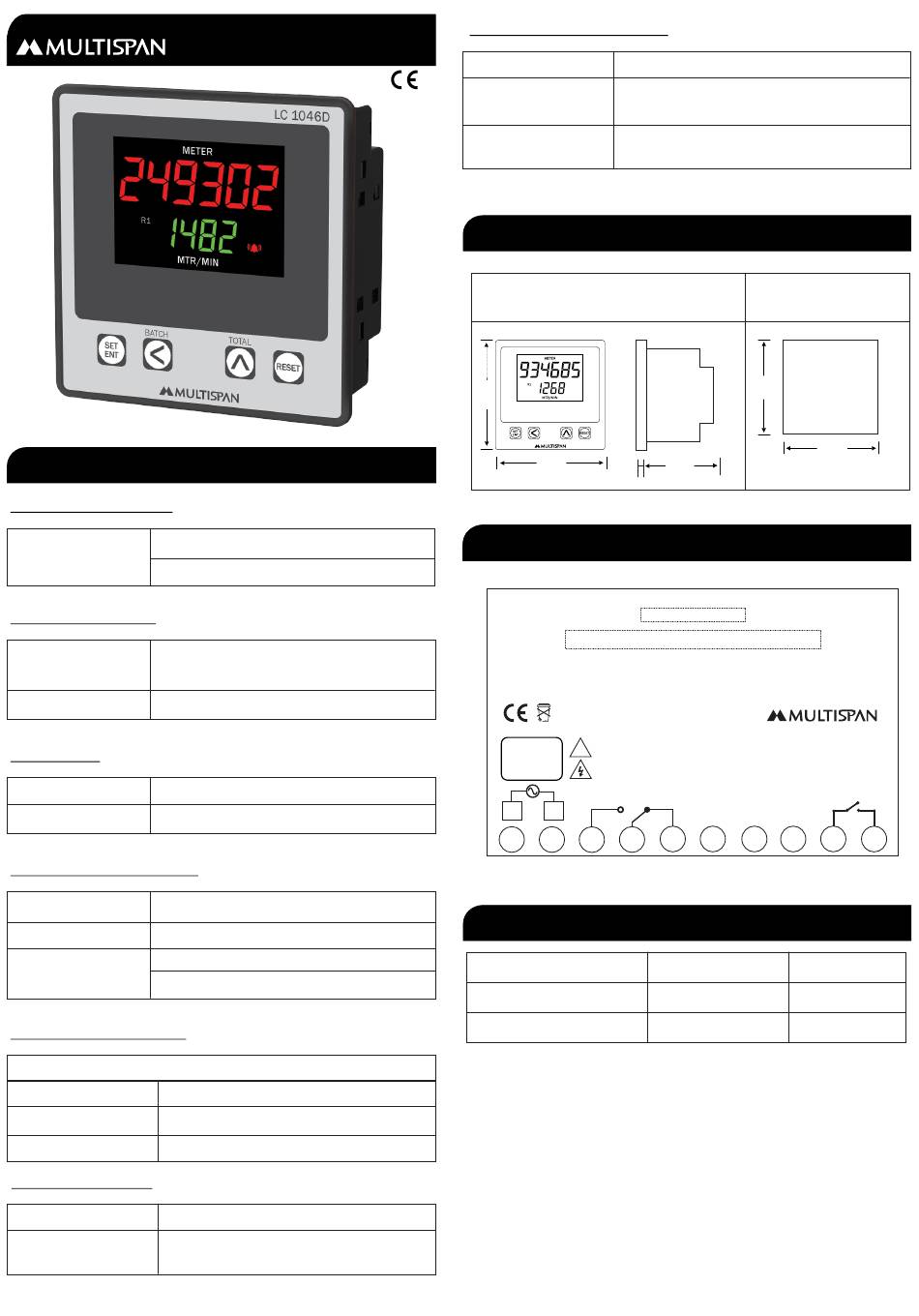

MULTISPAN LC 1046D Quick Start Manual

TECHNICAL SPECIFICATION
INPUT SPECIFICATION:
NPN/PNP Proximity
Input (Start Pulse)
Micro Switch
DISPLAY AND KEYS:
Upper: 6 digit, 7 segment, 0.56" Red
Display
Lower: 4 digit, 7 segment, 0.40" Green
Keys SET/ENT, SHIFT, INC, RESET
DIMENSION:
Size
96 (H) x 96 (W) x 43 (D) mm
Panel Cutout 92 (H) x 92 (W) mm
GENERAL SPECIFICATION:
Memory
Nonvolatile
Counting Direction
UP/ DOWN
Front Panel Reset
Reset Option
Terminal Reset
OUTPUT SPECIFICATION:
Relay Output
Relay 1 nos.
Relay Type 1 C/O (NO-C-NC)
Rating 5A, 230V AC
AUXILIARY SUPPLY:
Supply voltage 230V AC, 50Hz
Power consumption
Approx 4 VA @ 230V AC MAX
(VA RATING)

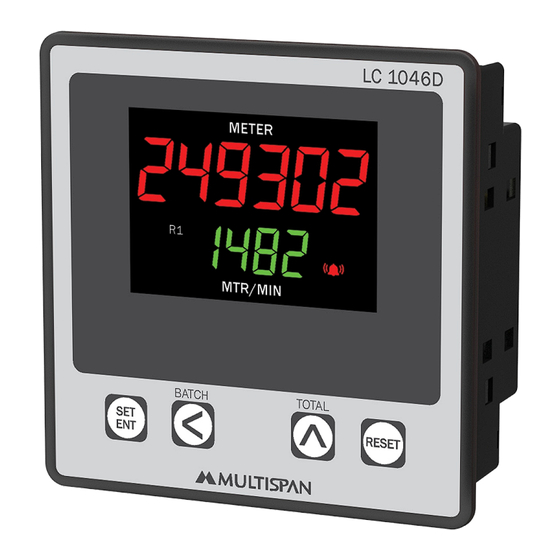

LENGTH COUNTER
LC-1046D
ENVIRONMENT CONDITION:
Operating Temp.
0°C to 55°C
UP to 95% RH
Relative Humidity
(non-condensing)
Protection Level
IP-65 (Front side) As per IS/IEC
(AS Per Request)
60529 : 2001
MECHANICAL INSTALLATION
Outline Dimension (mm)
LC 1046D
96
BATCH TOTAL
3
96
TERMINAL CONNECTION
LC 1046D-B1-00
MICRO SWITCH:- M/S Connection 7 & 9
Made in India
230V AC !
50Hz, 4VA
RELAY
NO C
L N
1 2 3 4
PROXY COLOR CODE
+12V
Brown
Red
Panel Cutout
Dimension (mm)
92
92
43
www.multispanindia.com
NC
+12V NPN PNP GND
I/P I/P
5 6 7 8 9
GND
OUTPUT
Blue
Black
Green Black
RST
10
