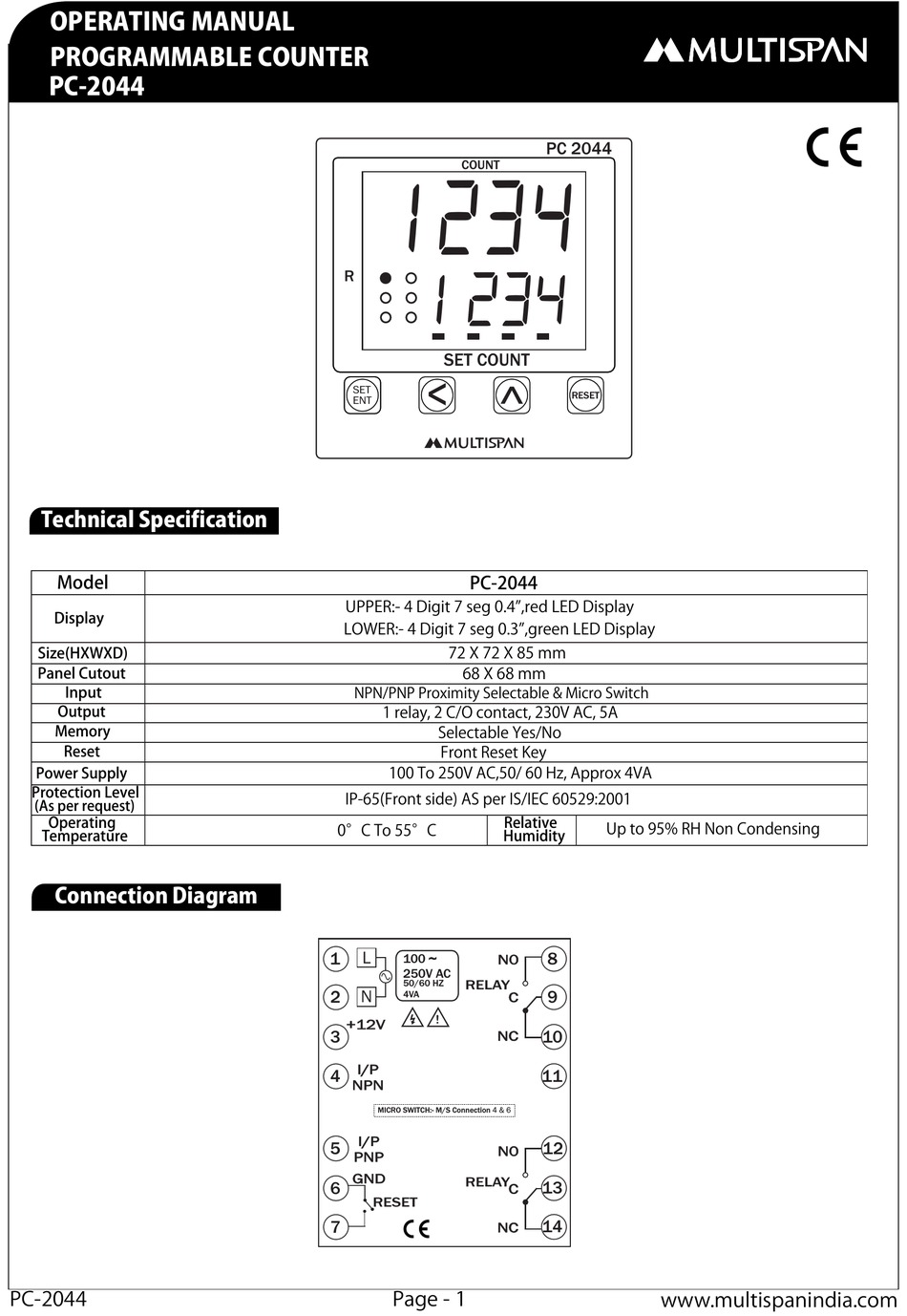

MULTISPAN PC-2044 Operating Manual

OPERATING MANUAL

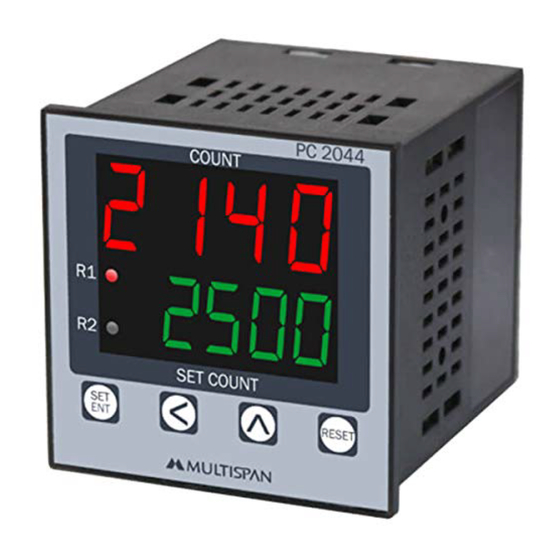

PROGRAMMABLE COUNTER
PC-2044
Technical Specification
Model
Display
Size(HXWXD)
Panel Cutout
Input
Output
Memory
Reset
Power Supply
Protection Level
(As per request)
Operating
Temperature
Connection Diagram
PC-2044
COUNT
  
R
  
SET COUNT
SET
ENT
PC-2044
UPPER:- 4 Digit 7 seg 0.4 ,red LED Display
LOWER:- 4 Digit 7 seg 0.3 ,green LED Display
72 X 72 X 85 mm
68 X 68 mm
NPN/PNP Proximity Selectable & Micro Switch
1 relay, 2 C/O contact, 230V AC, 5A
Selectable Yes/No
Front Reset Key
100 To 250V AC,50/ 60 Hz, Approx 4VA
IP-65(Front side) AS per IS/IEC 60529:2001
0°C To 55°C
L
1
~
100 N0
250V AC
50/60 HZ RELAY
N 4VA
2
!
+12V
3
NC
I/P
4
NPN
MICRO SWITCH:- M/S Connection 4 & 6
I/P
5
N0
PNP
GND
RELAY
6
RESET
7
NC
Page - 1
PC 2044

RESET
Relative
Up to 95% RH Non Condensing
Humidity
8
9
C
10
11
12
13
C
14
