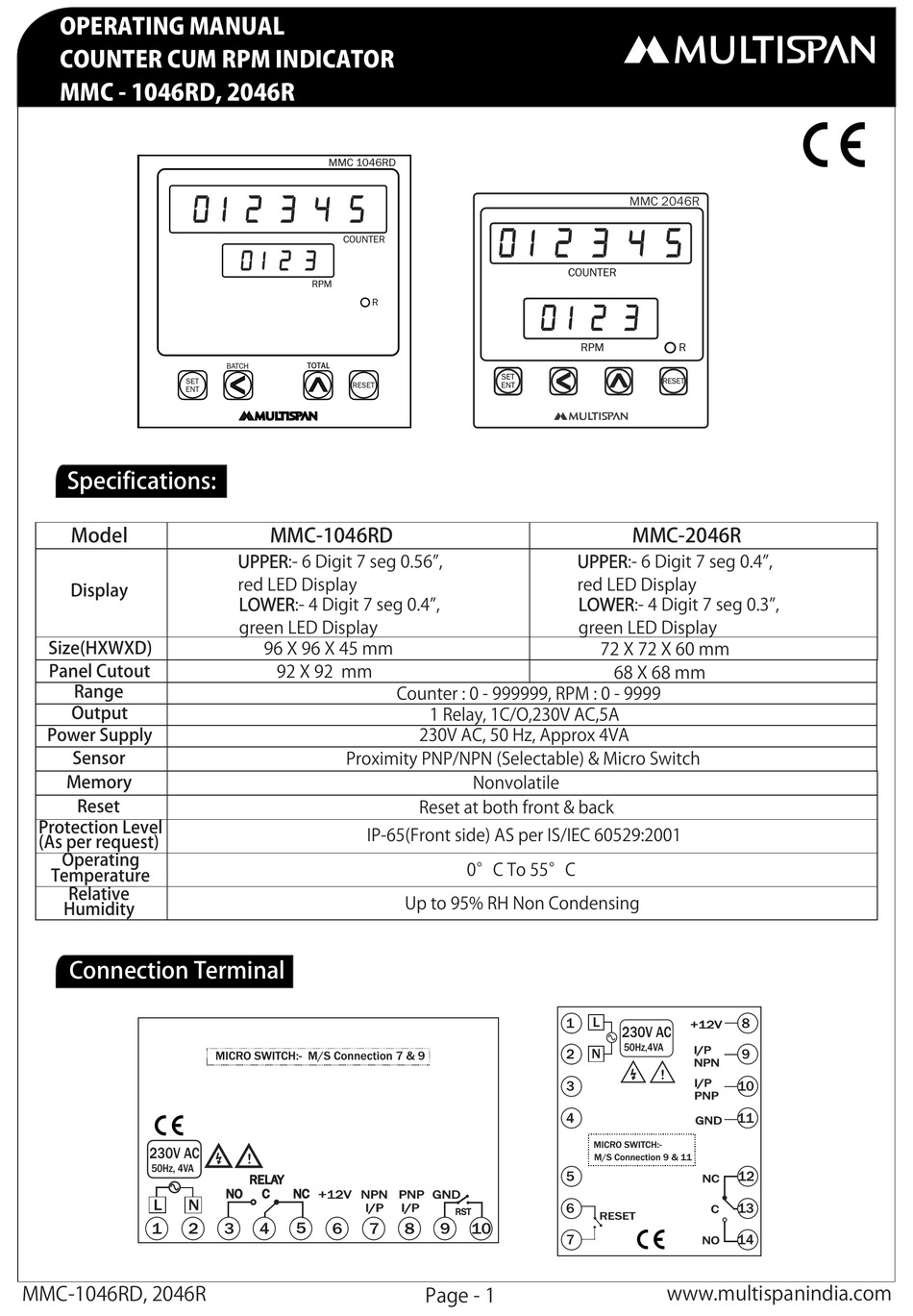

OPERATING MANUAL
COUNTER CUM RPM INDICATOR
MMC - 1046RD, 2046R


Specifications:

Model
Display
Size(HXWXD)
Panel Cutout
Range
Output
Power Supply
Sensor
Memory
Reset
Protection Level
(As per request)
Operating
Temperature
Relative
Humidity

Connection Terminal

230V AC
50Hz, 4VA
L N
1 2
MMC-1046RD, 2046R

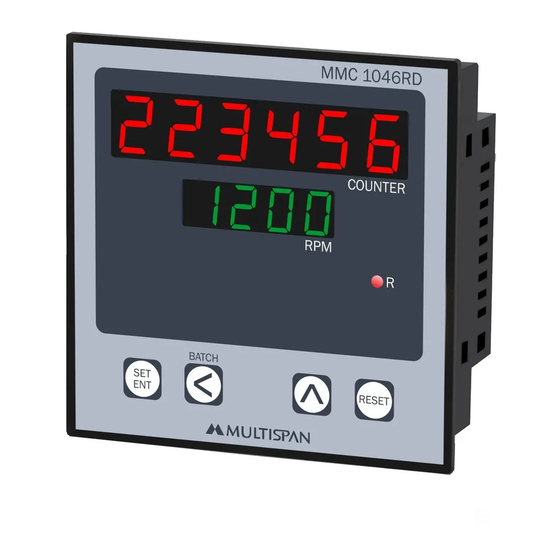

MMC 1046RD
COUNTER

RPM
R
TOTAL
MMC-1046RD
UPPER:- 6 Digit 7 seg 0.56 ,
red LED Display
LOWER:- 4 Digit 7 seg 0.4 ,
green LED Display
96 X 96 X 45 mm
92 X 92 mm
Proximity PNP/NPN (Selectable) & Micro Switch
IP-65(Front side) AS per IS/IEC 60529:2001
MICRO SWITCH:- M/S Connection 7 & 9
!
RELAY
NO C NC
+12V NPN PNP GND
I/P
3 5 6 7
4

COUNTER

SET
ENT
Counter : 0 - 999999, RPM : 0 - 9999
1 Relay, 1C/O,230V AC,5A
230V AC, 50 Hz, Approx 4VA
Nonvolatile
Reset at both front & back
0°C To 55°C
Up to 95% RH Non Condensing
1
2
3
4
5
6
I/P
RST
8 9
10
7
Page - 1
MMC 2046R
RPM R
RESET
MMC-2046R
UPPER:- 6 Digit 7 seg 0.4 ,
red LED Display
LOWER:- 4 Digit 7 seg 0.3 ,
green LED Display
72 X 72 X 60 mm
68 X 68 mm
L
8
+12V
230V AC
50Hz,4VA
I/P
N
9
NPN
!
I/P
10
PNP
11
GND
MICRO SWITCH:-
M/S Connection 9 & 11
12
NC
13
C
RESET
14
NO
