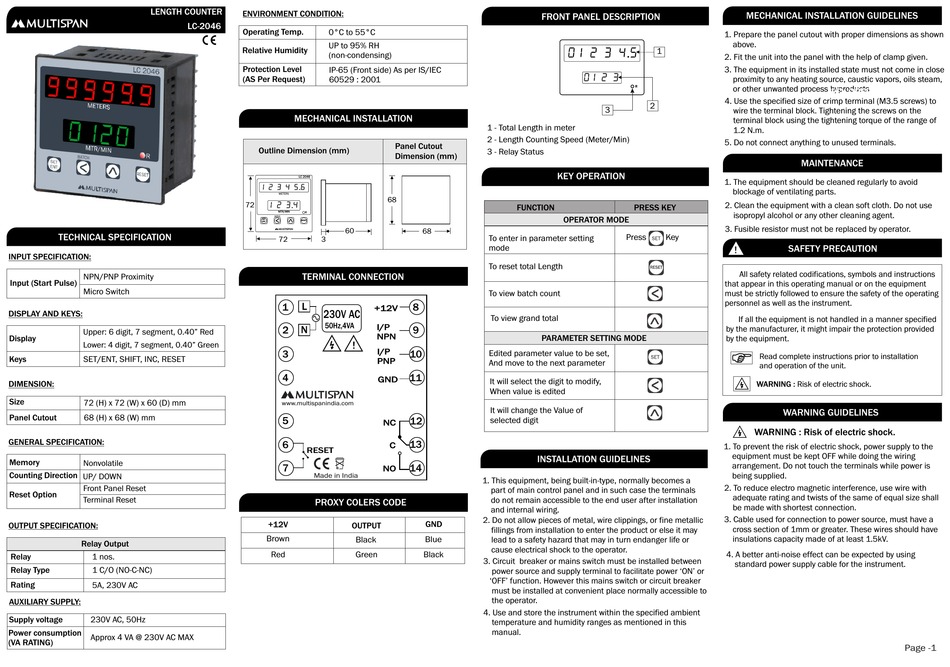

MULTISPAN LC-2046 Quick Start Manual

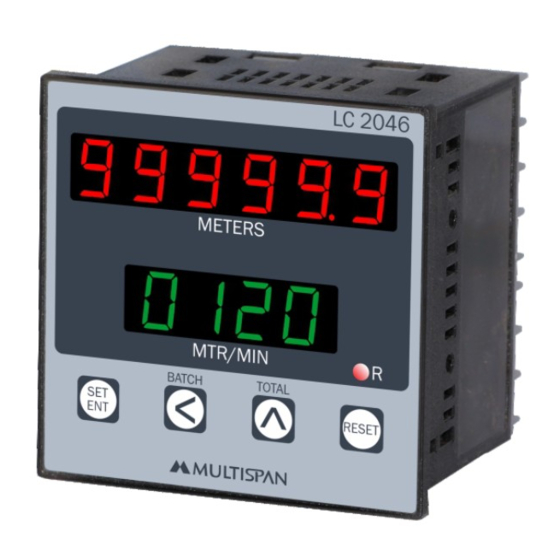

LENGTH COUNTER
LC-2046
TECHNICAL SPECIFICATION
INPUT SPECIFICATION:
NPN/PNP Proximity
Input (Start Pulse)
Micro Switch
DISPLAY AND KEYS:
Upper: 6 digit, 7 segment, 0.40" Red
Display
Lower: 4 digit, 7 segment, 0.40" Green
Keys SET/ENT, SHIFT, INC, RESET
DIMENSION:
Size
72 (H) x 72 (W) x 60 (D) mm
Panel Cutout 68 (H) x 68 (W) mm
GENERAL SPECIFICATION:
Memory
Nonvolatile
Counting Direction
UP/ DOWN
Front Panel Reset
Reset Option
Terminal Reset
OUTPUT SPECIFICATION:
Relay Output
Relay 1 nos.
Relay Type 1 C/O (NO-C-NC)
Rating 5A, 230V AC
AUXILIARY SUPPLY:
Supply voltage 230V AC, 50Hz
Power consumption
Approx 4 VA @ 230V AC MAX
(VA RATING)
ENVIRONMENT CONDITION:
Operating Temp.
0°C to 55°C
UP to 95% RH
Relative Humidity
(non-condensing)
Protection Level IP-65 (Front side) As per IS/IEC
(AS Per Request) 60529 : 2001
MECHANICAL INSTALLATION
Panel Cutout
Outline Dimension (mm)
Dimension (mm)
LC 2046
1 2 3 4 5.6
68
1 2 3.4
72
MTR/MIN R
SET
RESET
ENT
60
72 3
TERMINAL CONNECTION
L
1 8
+12V
230V AC
50Hz,4VA
I/P
2 N 9
NPN
!
I/P
3 10
PNP
4 11
GND
www.multispanindia.com
5 12
NC
6 13
C
RESET
7 14
NO
Made in India
PROXY COLERS CODE
+12V
OUTPUT
Brown
Black
Red Green
FRONT PANEL DESCRIPTION
01 2 3 4.5
01 2 3
1 - Total Length in meter
2 - Length Counting Speed (Meter/Min)
3 - Relay Status
KEY OPERATION
FUNCTION
OPERATOR MODE
68
To enter in parameter setting
mode
To reset total Length
To view batch count
To view grand total
PARAMETER SETTING MODE
Edited parameter value to be set,
And move to the next parameter
It will select the digit to modify,
When value is edited
It will change the Value of
selected digit
INSTALLATION GUIDELINES
1. This equipment, being built-in-type, normally becomes a
part of main control panel and in such case the terminals
do not remain accessible to the end user after installation
and internal wiring.
2. Do not allow pieces of metal, wire clippings, or fine metallic
GND
fillings from installation to enter the product or else it may
Blue
lead to a safety hazard that may in turn endanger life or
cause electrical shock to the operator.
Black
3. Circuit breaker or mains switch must be installed between
power source and supply terminal to facilitate power 'ON' or
'OFF' function. However this mains switch or circuit breaker
must be installed at convenient place normally accessible to
the operator.
4. Use and store the instrument within the specified ambient
temperature and humidity ranges as mentioned in this
manual.
MECHANICAL INSTALLATION GUIDELINES
1. Prepare the panel cutout with proper dimensions as shown
above.
1
2. Fit the unit into the panel with the help of clamp given.
3. The equipment in its installed state must not come in close
proximity to any heating source, caustic vapors, oils steam,
R or other unwanted process byproducts.
4. Use the specified size of crimp terminal (M3.5 screws) to
2
3
wire the terminal block. Tightening the screws on the
terminal block using the tightening torque of the range of
1.2 N.m.
5. Do not connect anything to unused terminals.
1. The equipment should be cleaned regularly to avoid
blockage of ventilating parts.
2. Clean the equipment with a clean soft cloth. Do not use
PRESS KEY
isopropyl alcohol or any other cleaning agent.
3. Fusible resistor must not be replaced by operator.
Press Key
!
RESET
All safety related codifications, symbols and instructions
that appear in this operating manual or on the equipment
must be strictly followed to ensure the safety of the operating
personnel as well as the instrument.
If all the equipment is not handled in a manner specified
by the manufacturer, it might impair the protection provided
by the equipment.
Read complete instructions prior to installation
and operation of the unit.
WARNING : Risk of electric shock.
WARNING GUIDELINES
WARNING : Risk of electric shock.
1. To prevent the risk of electric shock, power supply to the
equipment must be kept OFF while doing the wiring
arrangement. Do not touch the terminals while power is
being supplied.
2. To reduce electro magnetic interference, use wire with
adequate rating and twists of the same of equal size shall
be made with shortest connection.
3. Cable used for connection to power source, must have a
cross section of 1mm or greater. These wires should have
insulations capacity made of at least 1.5kV.
4. A better anti-noise effect can be expected by using
standard power supply cable for the instrument.
KEY OPERATION
MAINTENANCE
SAFETY PRECAUTION
Page -1
