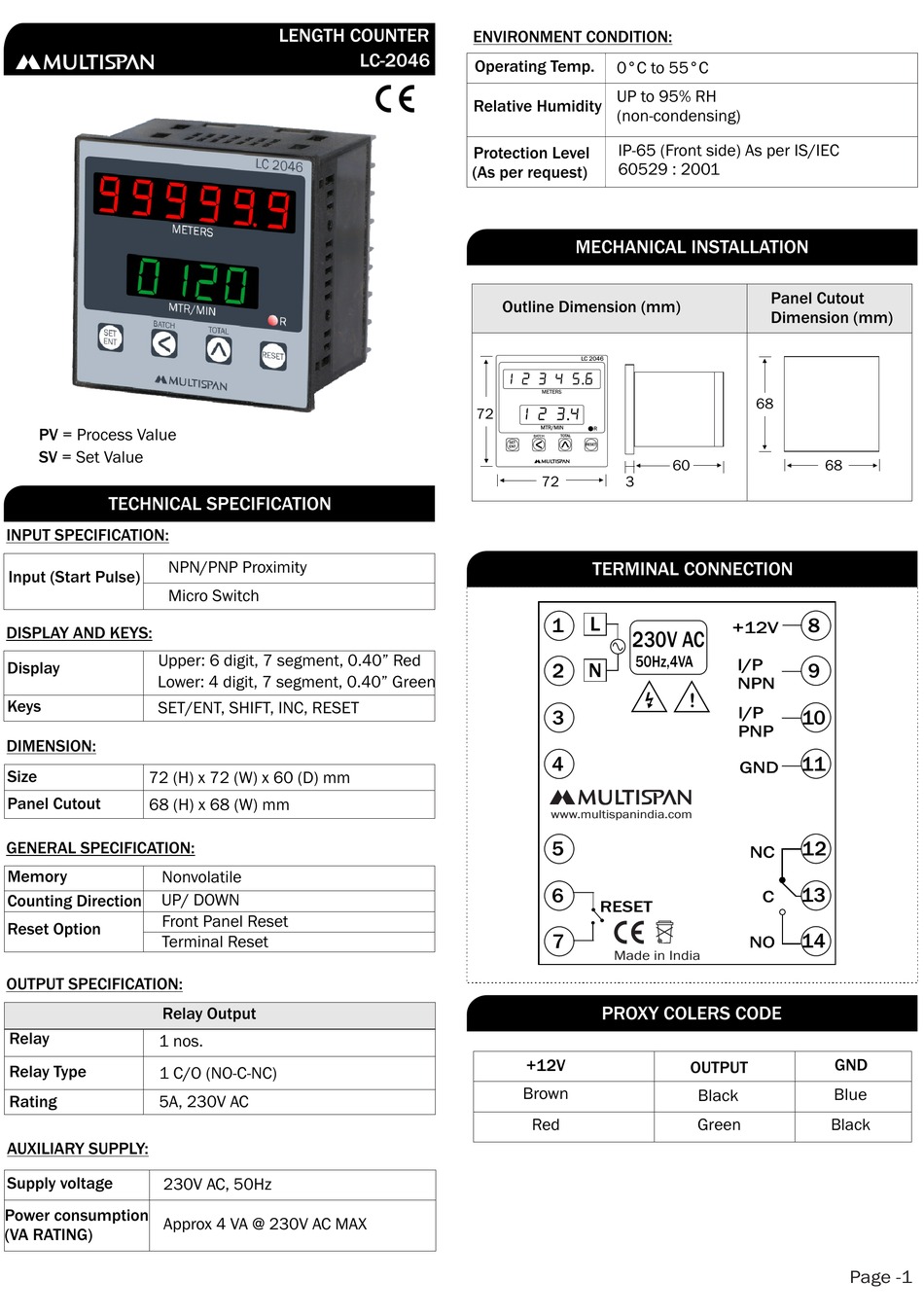

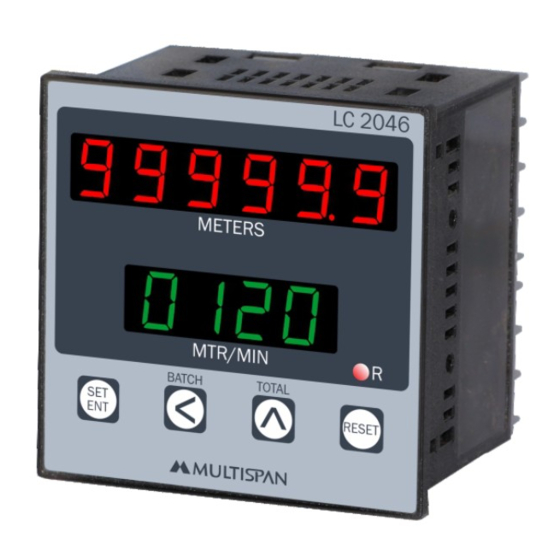

MULTISPAN LC-2046 Manual

PV = Process Value
SV = Set Value
TECHNICAL SPECIFICATION
INPUT SPECIFICATION:
NPN/PNP Proximity
Input (Start Pulse)
Micro Switch
DISPLAY AND KEYS:
Upper: 6 digit, 7 segment, 0.40" Red
Display
Lower: 4 digit, 7 segment, 0.40" Green
Keys
SET/ENT, SHIFT, INC, RESET
DIMENSION:
Size
72 (H) x 72 (W) x 60 (D) mm
Panel Cutout
68 (H) x 68 (W) mm
GENERAL SPECIFICATION:
Memory Nonvolatile
Counting Direction UP/ DOWN
Front Panel Reset
Reset Option
Terminal Reset
OUTPUT SPECIFICATION:
Relay Output
Relay
1 nos.
Relay Type
1 C/O (NO-C-NC)
Rating 5A, 230V AC
AUXILIARY SUPPLY:
Supply voltage
230V AC, 50Hz
Power consumption
Approx 4 VA @ 230V AC MAX
(VA RATING)
LENGTH COUNTER
LC-2046
ENVIRONMENT CONDITION:
Operating Temp.
0°C to 55°C
UP to 95% RH
Relative Humidity
(non-condensing)
IP-65 (Front side) As per IS/IEC
Protection Level
60529 : 2001
(As per request)
MECHANICAL INSTALLATION
Outline Dimension (mm)
LC 2046
1 2 3 4 5.6
1 2 3.4
72
MTR/MIN
R
TOTAL
SET
RESET
ENT
72 3
TERMINAL CONNECTION
L
1
230V AC
50Hz,4VA
N
2
3
4
www.multispanindia.com
5
6
RESET
7
Made in India
PROXY COLERS CODE
+12V
Brown
Red
Panel Cutout
Dimension (mm)
68
60 68
8
+12V
I/P
9
NPN
!
I/P
10
PNP
11
GND
12
NC
13
C
14
NO
GND
OUTPUT
Blue
Black
Green Black
Page -1
