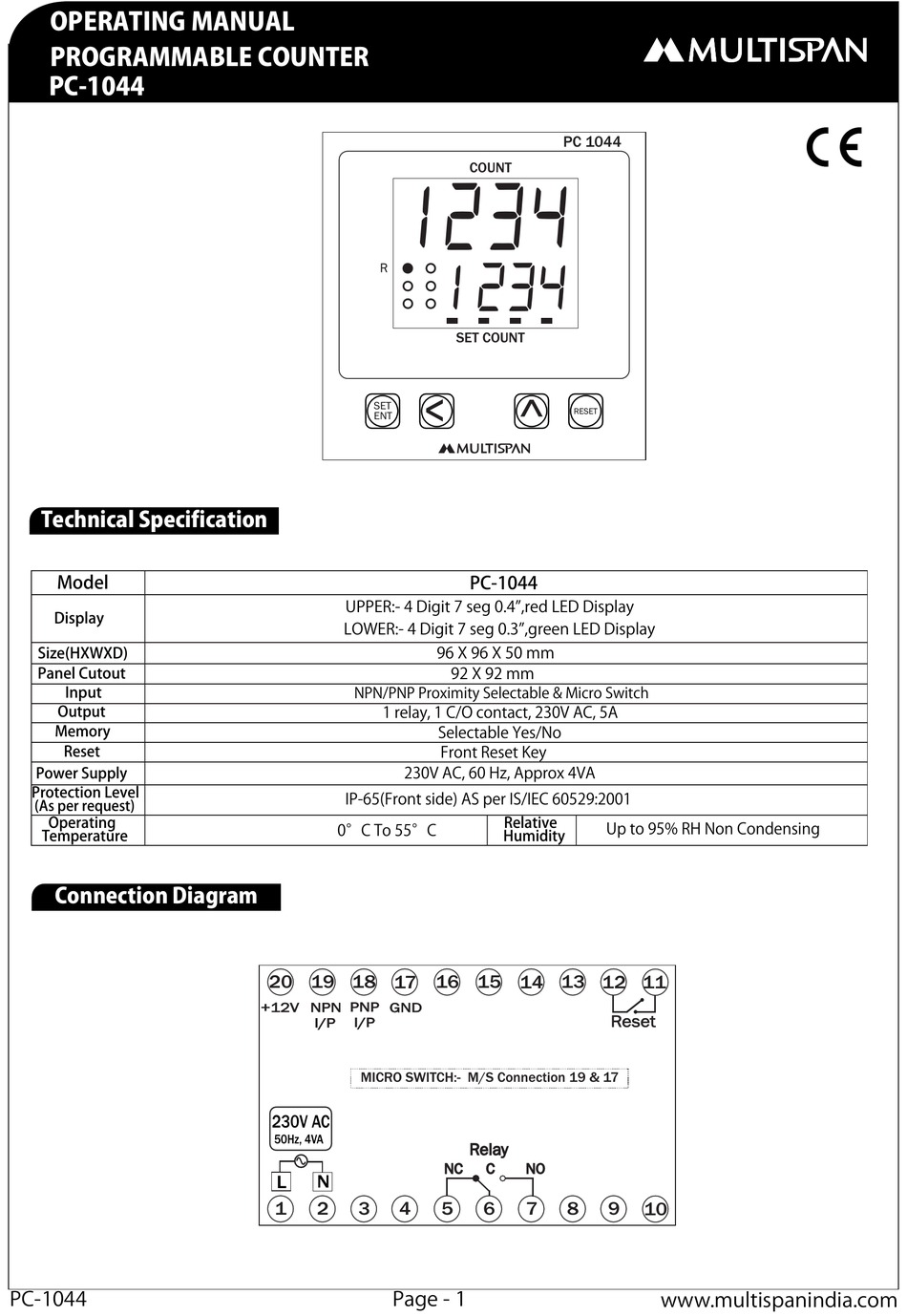

OPERATING MANUAL
PROGRAMMABLE COUNTER
PC-1044
Technical Specification
Model
Display
Size(HXWXD)
Panel Cutout
Input
Output
Memory
Reset
Power Supply
Protection Level
(As per request)
Operating
Temperature
Connection Diagram
PC-1044
SET
ENT
UPPER:- 4 Digit 7 seg 0.4 ,red LED Display
LOWER:- 4 Digit 7 seg 0.3 ,green LED Display
NPN/PNP Proximity Selectable & Micro Switch
1 relay, 1 C/O contact, 230V AC, 5A
230V AC, 60 Hz, Approx 4VA
IP-65(Front side) AS per IS/IEC 60529:2001
0°C To 55°C
20 19 18 17
PNP
+12V
NPN
GND
I/P
I/P
MICRO SWITCH:- M/S Connection 19 & 17
230V AC
50Hz, 4VA
L
N
1
2
3
4
Page - 1
PC 1044
COUNT
SET COUNT
RESET
PC-1044
96 X 96 X 50 mm
92 X 92 mm
Selectable Yes/No
Front Reset Key
Relative
Humidity
16
15
14
13
12
Relay
NC
C
NO
5
6
7
8
Up to 95% RH Non Condensing
11
Reset
9
10
www.multispanindia.com
Advertisement
Related Manuals for MULTISPAN PC-1044
Summary of Contents for MULTISPAN PC-1044
- Page 1 OPERATING MANUAL PROGRAMMABLE COUNTER PC-1044 PC 1044 COUNT SET COUNT RESET Technical Specification Model PC-1044 UPPER:- 4 Digit 7 seg 0.4 ,red LED Display Display LOWER:- 4 Digit 7 seg 0.3 ,green LED Display...
- Page 2 Change by key. Press Count Direction UP/DOWN Change by key. Press Memory Yes/ No Change by key. Press Relay Instant on or Delayed On. Change by key. Press Page - 2 www.multispanindia.com PC-1044...
- Page 3 5). To restart Counting or to Reset press RST key. Upper display will show 0000 and the counting will restart. 6). The proximity switch give pulse to counter every time the metal on the roller is sensed. PC-1044 Page - 3 www.multispanindia.com...
- Page 4 3) Fusible resistor must not be replaced by operator. Product improvement and upgrade is a constant procedure. So for more updated operating information and support, Please contact our helpline : +91-9978991474/76/82 or Email at Service@multispanindia.com Ver: 05-2018 PC-1044 Page - 4 www.multispanindia.com...
