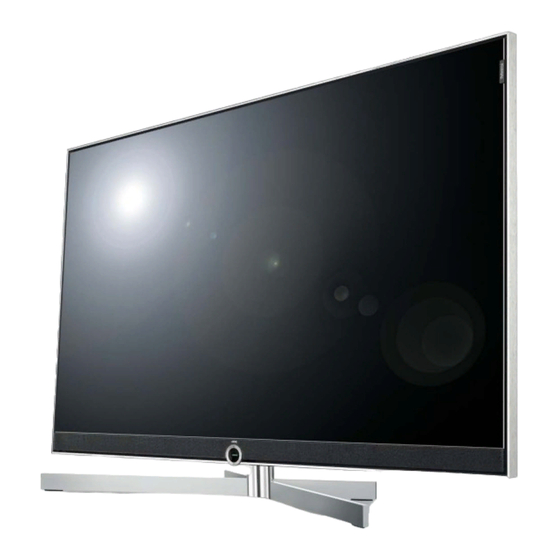

Loewe Reference 85 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Reference
TV
Reference 85
Reference 75
Reference 55
User manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Reference 85 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Loewe Reference 85

Summary of Contents for Loewe Reference 85

  • Page 1 Reference Reference 85 Reference 75 Reference 55 User manual...

  • Page 2: Imprint

    Reference 55-85 User manual Imprint Imprint Loewe Technologies GmbH Industriestraße 11 Editorial date 11/17-3.0 TB/PS D-96317 Kronach © Loewe Technologies GmbH, Kronach www.loewe.tv ID: 2.2.13.0 All rights including translation, technical modifications and errors reserved.

  • Page 3: Table Of Contents

    Reference 55-85 User manual Table of contents Imprint ...................2 Video .................... 57 Video playback ....................58 Welcome ..................5 Additional functions for DR+ archive playback ........61 Scope of delivery ..................5 About this user manual ................5 Audio/Radio ................64 Audio playback ...................65 For your safety ................6 Radio mode (DVB radio) ................
  • Page 4 IR-Link ......................129 Serial interface RS-232C (RJ12) ............. 129 Setting the remote control ..............130 Teaching the remote control ...........131 Loewe Apps ................133 Smart tv2move App ................133 Smart Assist App ..................134 Troubleshooting ............... 135 Technical Data ................137 Signals via AV (PC IN) / HDMI ..............

  • Page 5: Welcome

    Thank you, About this user manual for choosing a Loewe product and having placed your trust in us. For best results regarding safety and the longevity of the set, we recommend you read the chapter For your safety before switching With Loewe you have not simply decided on a modern and technically the TV set on for the first time.

  • Page 6: For Your Safety

    Always wear rubber gloves to carry the TV set if the LCD screen is Please use the Loewe 3D TV sets only with the Loewe 3D glasses which damaged and liquid crystal might be leaking out. In the case of skin can be purchased as an accessory from your Loewe dealer.
  • Page 7 For your safety Set-up Automatic shutdown Loewe flatscreen TV sets are specified for Loewe accessories. The TV If the TV is not operated for 4 hours (adjustment of volume, programme set is suitable for mounting in many different ways. Note the assembly change, etc.) the TV will automatically switch to stand-by mode to save...

  • Page 8: Remote Control Button Mapping

    Reference 55-85 User manual Remote control Remote control button mapping Depending on the selected operating mode (TV/Video/Audio/Photo/Web) and function (e.g. DR+, EPG, PIP, Teletext, HbbTV, etc.), the key assignment may differ from the assignment described here (see the corresponding chapter in this user manual). Sound mute/on.

  • Page 9: Operating Controls On The Tv Set

    (EPG data updating, software update or DR+ streaming server function). Infrared transmitter: When showing 3D content, the 3D glasses Loewe Active Glasses 3D are controlled via the infrared sensor. Key M: TV set in standby mode: switch TV set on in TV mode.

  • Page 10: Connections Rear Side Of The Device

    Reference 55-85 User manual Connections rear side of the device Reference 55 Position and function of the connections (Reference 55) MOTOR UNIT HEADPHONE - Headphone connection Slot for Kensington lock Jack 3,5 mm – Headphones 32–200 Ohm AC IN - Mains connection Mains socket –...

  • Page 11: Reference 75 / 85

    Reference 55-85 User manual Connections rear side of the device Reference 75 / 85 Position and function of the connections (Reference 75 / 85) AC IN - Mains connection HDMI 3 - HDMI input 3 Mains socket – 220-240 V ~ 50 / 60 Hz HDMI –...

  • Page 12: Preparing The Tv Set

    Mounting options / Installation notes In order to remove the rear side cable covers pull them simply from Your Loewe dealer can also assist you in finding other mounting the device. options. Look for the corresponding directions in the installation instruction.

  • Page 13: Connecting The Tv Set

    Reference 55-85 User manual Preparing the TV set Connecting the TV set Connecting antennas Cable (analogue) / DVB-C / DVB-T antenna: Connecting to the mains supply Plug the cable of antenna, cable TV system or room antenna into the ANT TV socket. Reference 55: If you want to use analogue cables / DVB-C connection and a DVB-T Remove the cover for the connections.

  • Page 14: Preparing The Remote Control Unit

    WLAN antenna. Only use leak-proof micro-cells of the LR 03 (AAA) Alkali-Manganese In order to play back data from your home network your Loewe TV type. Do not use different types of batteries and old and new batteries supports the UPnP AV standard.

  • Page 15: Switching The Tv Set On/Off

    USB hard disks with the TV set. indicator in the control panel lights up in green. Loewe are not liable for the loss of data on the integrated hard disk of your TV set. To avoid data loss, we recommend copying important recordings to an external storage medium.

  • Page 16: General Information On Menu Operation

    Reference 55-85 User manual General information on menu operation General information on menu operation Structure of the Menu screen Basically, the structure of the different menu screens is similar, The most important keys for navigation will be explained in general. depending on the fact if a wizard, rendering media content or a setup The numbers in the text refer to the figure showing the remote control menu are concerned.
  • Page 17 Reference 55-85 User manual General information on menu operation Screen structure: Setup (example: picture) Navigation: Wizards Picture ad- justment If your desired display format has not been automatically Picture Contrast selected then you can choose it in the 3D settings menu. You may display the 3D image in 2D or vice versa.
  • Page 18 A B C 2 Ä Æ Ã Å Ā À Á Ć Ç Č - a b c 2 ä æ ã å ā â à á ć ç č http://www.loewe.tv D E F 3 Ė Ë Ē Ę Ê È É - d e f 3 ė ë ē ę ê è é...

  • Page 19: On-Screen Displays

    Reference 55-85 User manual On-screen displays Operation without remote control Explanation of keys Operation without remote control An explanation of the main operating keys that can be used at the Changing Volume moment, can be displayed. The availability of the key explanation is dependent on the currently + / –...

  • Page 20: Initial Installation

    Reference 55-85 User manual Initial installation Initial installation wizard Energy Home mode: efficiency The emphasis for home use is on low energy (continued) Initial installation after switching on for the first time consumption. The automatic dimmer is activated. The Initial installation wizard starts automatically with an initial Premium mode: installation.
  • Page 21 Reference 55-85 User manual Initial installation Connect Setting options for reception via Cable analog: antennas If you have not selected Cable analog in step Connect antenna Connect antenna cable(s) cable(s) Your television will automatically search for stations. With , highlight which antenna cable(s) in the initial installation, proceed to the next section Setting cables are available for your TV set and connect them to the correct antenna sockets, which are specified here in the right-hand column.
  • Page 22 Reference 55-85 User manual Initial installation Setting options for DVB-T reception: Supply voltage If you have not selected Terrestrial (DVB-T) in step Connect antenna cable(s) in the initial installation, proceed to the next section Setting options for DVB-C reception. Supply voltage DVB-T antenna Please state here whether your DVB-T antenna needs a supply voltage.
  • Page 23 Reference 55-85 User manual Initial installation Setting options for DVB-C reception: Network ID If you select none here, DVB signals of all current If you have not selected Cable (DVB-C) in step Connect antenna transmitter networks are searched automatically cable(s) in the initial installation, proceed to the next section Setting (recommended for most cable networks).
  • Page 24 Reference 55-85 User manual Initial installation Setting options for DVB-S reception: other Select setting if the TV set is connected to a If you have not selected Satellite (DVB-S/cable x) in step Connect communal single-cable system (without DiSEqC). Several antenna cable(s) in the initial installation, proceed to the next section installation Sat receivers can be connected to one Sat cable.
  • Page 25 Reference 55-85 User manual Initial installation Setting options for the satellite system (single satellite): Setting options for the satellite system (2 satellites on 22 kHz switchbox / 2 satellites on toneburst switch): Select single satellite Satellite Select satellites selection Select satellites Please specify here which satellite you receive.
  • Page 26 Reference 55-85 User manual Initial installation Setting options for the satellite system LNB frequencies frequencies (max. 4 satellites on DiSEqC multiswitch): Please select the LNB frequencies for both High and Low Bands. Note: The newly selected parameter in each case must be confirmed with the button.
  • Page 27 Reference 55-85 User manual Initial installation Setting options for the satellite system frequencies (DiSEqC one cable communal system): Number of LNB frequencies system channel used ASTRA1 19,2°E low Band 9750 MHz 10000 MHz 10200 MHz 10600 MHz ASTRA1 19,2°E high Band 10600 MHz 10750 MHz 11000 MHz...
  • Page 28 Reference 55-85 User manual Initial installation Setting options for the satellite system (other communal installation): Select single satellite Select satellites Please specify here which satellite you receive. Note: The newly selected parameter must be confirmed with the button. Optus D1160°E ASTRA1 19,2°E Eutelsat 5 West A 5°W Türksat 42°E...
  • Page 29 Reference 55-85 User manual Initial installation Setting options for DVB-S reception (continued): Test reception You should now receive a picture and sound from the following satellite: Astra1 19,2°E Level Otherwise, please adjust your antenna. If it is already correctly adjusted, please continue all the same, without receiving picture or sound for the moment.
  • Page 30 Reference 55-85 User manual Initial installation Age-related Setting options for all types of reception: lock Subtitle and Subtitle and audio languages (DVB) audio You can preset the desired languages and reserve languages for subtitles and audio for Age-related lock DVB programmes here. languages If you enter an age restriction here, all DVB programmers are locked which have an appropriate age code and can only be watched by entering the access code.

  • Page 31: Tv Set As A Monitor

    Reference 55-85 User manual Initial installation Inform about Sound playback new software via ... Software-Update Sound playback via ... You have the option of performing a software update via the Internet. Please specify Please specify here via which sound components you want to listen to your TV sound. If you whether the TV set is to automatically inform you about newly available software.

  • Page 32: Home View

    ProSieben kabel eins arte HD Photo THE LIBERATION OF ART P+/P– Scrolling through the individual pages. Loewe channel LUMAS YouTube System settings Editing favourites Select menu item / Favourite / Source, You can edit the existing favourites in Home view. Change the OK call.

  • Page 33: Setting The Volume

    Reference 55-85 User manual Volume / Station Selecting a station out of the station list In normal TV mode, without other displays: In TV mode that can be selected via the Home overview, you can use the basic TV functions of your TV set. In TV mode you will have numer- OK Call station list.
  • Page 34 Reference 55-85 User manual Station Selecting stations by means of the expanded station list Selecting stations by personal lists You can save your preferred stations in personal lists (e.g., for several In normal TV mode, without other displays: users). Each personal list can contain up to 99 stations. OK Call station list, call function list.

  • Page 35: Status Display

    (4) and (5). Here you can choose between Dolby Virtual and Cinema Surround. In sound HDTV programme. mode (3), proprietory settings of Loewe are used for the virtual reproduction. HbbTV mode available from this station.

  • Page 36: Function List (Tv Mode)

    Reference 55-85 User manual Function list / AV list Function list (TV mode) Explanations of the symbols in the function list (continued): Call Edit station list. The function list contains settings and additional options. Die individual Delete stations, shift stations, restore deleted stations. List items will be briefly explained as follows: Menu item is displayed only when the function list for the The function list can be opened for the current station or the selected...

  • Page 37: Electronic Programme Guide - Epg

    Reference 55-85 User manual Electronic Programme Guide Electronic Programme Guide – EPG Meaning of the colours in the EPG The coloured labels indicate the genre of the respective programme. EPG stands for Electronic Programme Guide and provides you with When filtering with genre selection in the header, the programmes of on-screen programme details.
  • Page 38 Reference 55-85 User manual Electronic Programme Guide Switching to the current broadcast Calling additional information about the programmes Mark current broadcast. INFO: Call up detailed information. OK press briefly: switch to current broadcast. Detailed info Back The electronic programme guide will be closed. 5 ProSieben 16:45 20.12.14 16:30-16:58 How I Met Your Mother...
  • Page 39 Reference 55-85 User manual Electronic Programme Guide Recording a programme via EPG Adapting the EPG Overview You can programme timer recordings of TV programmes conveniently The options to be selected are in the header, using the EPG. if not, press MENU key. Select the desired broadcast.

  • Page 40: Teletext

    Reference 55-85 User manual Teletext Teletext Additional page selection possibilities First possibility: Your TV set supports the two operating systems TOP text and FLOF. Up to 2000 pages are stored in order to get quick access. INFO: Call overview page 100. Second possibility: Starting and ending Teletext Directly enter the page number.

  • Page 41: Rotating The Tv Set

    Reference 55-85 User manual Teletext / Rotating the TV set Newsflash Rotating the TV set Some text pages, e.g., live tickers, will be permanently updated. In By using a connected motorized stand you have the possibility to rotate order to keep track of changes and also to be able to watch the TV your TV set by means of the remote control.

  • Page 42: Hbbtv / Mediatext

    Under certain circumstances, the recording and bookmarking functions of the applications may not be supported. Loewe do not guarantee the accessibility, functionality or content of HbbTV applications. Hide / Close HbbTV application BACK: Hide / Close HbbTV application.

  • Page 43: Picture In Picture (Pip)

    Reference 55-85 User manual Picture in Picture (PIP) Selecting the station of the PIP picture If the frame colour of the PIP picture is not green, The concurrent display of two different images is referred to as Picture press the green key. in Picture.

  • Page 44: Digital Recorder

    You can record programmes on the integrated hard disk of your TV You see the station’s live picture again. set with the digital recorder of your Loewe TV set. The TV broadcast that you watch is automatically recorded in the background.

  • Page 45: Archive Recording

    Reference 55-85 User manual Digital Recorder Archive recording Viewing another programme from the archive during archive recording Programmes that you wish to watch at a later date can be recorded in After you have started the recording, you can also watch a programme the Digital Recorder Archive (DR+ archive).

  • Page 46: Multi Recording

    Reference 55-85 User manual Digital Recorder Subtitles Multi recording Subtitles of a broadcast can also be stored during recording. The Multi Recording function makes it possible to record two pro- The recording of subtitles in DR+ continuous mode must be grammes at the same time and still watch a third one as well.

  • Page 47: Dr+ Archive

    USB storage device or to the hard disk of compatible -> Reisedokumentationen Morgenmagazin 11.06.14 11.06.14 Das Erste HD Das Erste HD Loewe TV sets in the home network. Familien im Brennpunkt 13.11.13 13.11.13 RTL Television RTL Television If no target medium is available, the menu item is Volle Kanne Service täglich 16.03.13...
  • Page 48 Reference 55-85 User manual Digital Recorder Displaying detailed information on the recording Multi select If detailed information exists on the recorded broadcast from the EPG, Multiple selection allows to mark several archive entries and then you can deplay it. perform a desired action via the function list (e.g. export, delete). The desired entry in the DR+ archive is marked.
  • Page 49 You can copy/move archive entries to an externally connected USB In the DR+ archive, you can create new directories when using the storage device or to the hard disk of compatible Loewe TV sets in the function move. home network.
  • Page 50 To avoid data loss, we recommend copying important recordings to an external USB hard disk (see Export of archive entries). Viewing a locked movie Loewe are not liable for data loss from the Digital Recorder’s hard disk. The desired locked entry in the DR+ archive is marked.

  • Page 51: Dr + Streaming

    The TV sets also need to be connected via a network (wireless To use DR + streaming, at least two Loewe TV sets are required, of connection via WLAN or cable connection via Ethernet, PowerLine).

  • Page 52: Multiroom

    The selection of individual TV sets can be comfortably made with the Smart tv2move app and the Multiroom function (Multiroom TV Streaming and Multiroom DR+ Streaming) can be initiated. You can download the Loewe Smart tv2move app free of charge from the app store. Select Multiroom playback , OK call.

  • Page 53: Timer

    Reference 55-85 User manual Timer Timer New instruction: New recording In the Timer list: In the timer menu you will find the Timer List and the Timer Services. All programmed recordings, earmarked programmes and copy jobs Mark Create newly, are listed in the timer list. OK call.
  • Page 54 Reference 55-85 User manual Timer New recording – Manual recording (current station) New copy job You should copy recordings that you want to save permanently on an In the Timer list, New recording is selected. external USB hard disk. Mark recording duration. Copying recordings, which originate from a CI Plus encrypted station, is perhaps not possible or only to a limited extent.
  • Page 55 Reference 55-85 User manual Timer Delete/change programmed timer instruction Entering the Timer data After selecting the station you wish to record, timer data will be Use this function in the timer list if you want to delete recordings displayed. already programmed, to end a running timer recording or to change a timer instruction.
  • Page 56 Wake up with Radio the transfer of this data for using automatic time control. The availability of the appropriate data cannot be guaranteed by Loewe. Adopt with Recording Select whether broadcast subtitles are to be recor- Select the desired setting, subtitles ded too.

  • Page 57: Video

    Reference 55-85 User manual Video Video Video function list The video function list contains the individual functions for your videos. The item Video gives you access to videos from local (USB, home network) and online sources. A video source has been selected. The menu items available in the function list depend High definition movie material (HD movies) from format 720p on the currently marked object (data source,...

  • Page 58: Video Playback

    Reference 55-85 User manual Video Video playback Symbol Remote Description (icon) control key The description of the following functions applies to the playback of videos from the DR+ archive as well as for videos from USB storage – Start DR+ Follow-Me recording. media or from media servers in the home network.
  • Page 59 Reference 55-85 User manual Video Pause playback (freeze picture) Skipping with Smart jump The Smart jump function ensures that the jump width is halved each PAUSE key: Switch to freeze picture. time the jump direction is changed or doubled after three jumps in the same direction (max.
  • Page 60 Reference 55-85 User manual Video Wind Repeat To search for desired scenes in movies you can fast forward and rewind Videos can be repeated, i.e., replayed in an endless loop. Depending at three different speeds. Sound is not audible during winding. on the source (DR+ archive, USB storage medium, media server in the network), single or all videos can be replayed in an endless loop.

  • Page 61: Additional Functions For Dr+ Archive Playback

    Reference 55-85 User manual Video Select language/sound Additional functions for DR+ archive playback Videos, especially those recorded from TV broadcasts, can contain There are additional editing and playback functions for playback of several sound tracks. recorded programmes from the DR+ archive. Select sound track/language: INFO: Show status bar.
  • Page 62 Reference 55-85 User manual Video Deleting individual bookmarks Interval functions Jump to the manually set bookmark to be deleted. The intervals between manually or automatically set bookmarks (intervals) can be faded out for future playbacks. Back DR+ archive: ZDFinfo HD 17:05 - 17:50 Flora und Fauna In addition to that, unwanted intervals at the beginning or end of your 11:27 20.12.2014...
  • Page 63 Reference 55-85 User manual Video Show hidden sections Determine cover picture A screen message will appear when a hidden section is skipped during The covers for the display of the entry in the DR+ archive can be freely replay of a DR+ archive entry. determined by you during an archive replay: In System settings Control...

  • Page 64: Audio/Radio

    Reference 55-85 User manual Audio/Radio Audio/Radio Audio/Radio function list The audio/radio function list contains the individual functions for your With item Audio/Radio you find music files from your USB storage music titles. media and media servers in the home network and you access DVB An audio source has been selected.

  • Page 65: Audio Playback

    Reference 55-85 User manual Audio/Radio Audio playback Pause playback PAUSE key: Stop current playback. Description of the symbols in the status display for audio playback Snow Patrol / Eyes Open Back Snow Patrol / Eyes Open Back Hands Open Chasing Cars Shut Your Eyes 00:00 02:56...
  • Page 66 Reference 55-85 User manual Audio/Radio Select another title / play current title from start Shuffle playback The music titles of your current medium are replayed in random order. BACK: Call music selection. Select music title as described in chapter Audio/ Mark Shuffle playback Radio, section Selecting music titles.

  • Page 67: Radio Mode (Dvb Radio)

    Reference 55-85 User manual Audio/Radio Radio mode (DVB radio) Explanation of keys INFO (press longer): show Explanation of keys. The TV set can receive digital radio stations via DVB. The AUDIO key has been preset to radio mode in the factory. INFO or BACK: hide Explanation of keys.

  • Page 68: Radio Mode (Internet Radio)

    Reference 55-85 User manual Audio/Radio Radio mode (Internet radio) Artist Search (Search for artists) By means of the search for artists, you can quickly and easily see all The TV set can receive digital radio stations via the Internet. radio stations that just play music by this artist. The result list is sorted for now and most played.

  • Page 69: Photo

    Reference 55-85 User manual Photo Photo Photo function list The photo function list contains the individual functions for your Via menu item Photo you can view photos from your local media and photos. from online sources on your TV screen. A photo source has been selected.

  • Page 70: Photo Display

    Reference 55-85 User manual Photo Photo display Full-screen mode A photo is highlighted in the selection (list view). Description of the symbols in the status display for photos OK View photo in full-screen mode. USB1 -> CRW_7266b Back USB1 -> CRW_7266b Back Show previous / next photo.

  • Page 71: Web

    The lower portion of the MediaNet home screen All applications are optimised for use on the TV. contains Recommendations given by Loewe. Browser Call Web browser of the TV set. The given content may change from time to time For further information see chapter Web, section without prior notice.
  • Page 72 Reference 55-85 User manual MediaNet – Browse Define application as favourite Under the item Browse, you browse the full range of applications by Mark the desired application. topic. MediaNet-Browse is called. Add the marked application to the Home favourites. Back The favourite is added to view Home of web favourites MediaNet - Browse and queued at the end.

  • Page 73: Browser

    Internet site, interface (e.g., router, home control, home network server). OK Open address entry box. Calling the Web browser Enter/change internet address Back HOME: Calling the Home view. http://www.loewe.tv Select Web, Select Browser, OK call. www. .com .net Start page will be opened.

  • Page 74: System Settings

    Reference 55-85 User manual System settings System settings Menu items Stations: Under the menu item System settings in the Home menu you find Automatic scan TV+Radio, Manuell scan (incl. all settings and adaptabilities of your TV set. antenna status), Station lists TV, Station lists Radio, Update station list automatically, Transfer all station Calling System settings lists.

  • Page 75: Picture

    Image+ Active is a special picture improvement filter caused by modern compression methods for images Active developed by LOEWE which provides a detailed and and image sequences (formation of small blocks), contrasting, sharper, natural and true colored picture a so-called deblocking filter can be activated which which is rich in detail and contrast.
  • Page 76 The picture format when in 3D operation is always 16:9 PC. You require a pair of Loewe Active Glasses 3D to be able to use the 3D functionality in its entirety (see chapter Accessories). Please read the operating instructions included with the 3D glasses.
  • Page 77 Reference 55-85 User manual System settings Picture Picture adjustment Selecting the picture format By selecting one of the preset picture adjustment modes (Home The setting options depend on the transmitted picture content. Mode, Premium Mode, Cinema Mode or Shop Mode), the picture HOME: Call Home view.

  • Page 78: Sound

    Reference 55-85 User manual System settings Sound Sound Explanations of the sound settings (continued): Dolby PLII He re yo u ca n se l e c t /a d a pt p reset so u n d Calling the sound settings mode characteristics (movie, music, matrix) in case of The selectable menu items depend on the selected station and the...

  • Page 79: Cinema Surround

    For the Cinema Surround mode an advanced Surround Virtualizer technology is used that is developed by Loewe. This one improves speech intelligibility while simultaneously widening the 3D sound. Default setting ex factory. Dolby Virtual Dolby Virtual simulates the hearing impression of a 5.1 surround sound system via the built-in TV...

  • Page 80: Stations

    Reference 55-85 User manual System settings Stations Stations Under the item Stations you find all settings concerned with station search for TV and DVB radio as well as functions for creating and editing the various station lists. Station management is not possible as long as a programmed timer recording is active.

  • Page 81: Automatic Scan Tv+Radio

    Reference 55-85 User manual System settings Stations Automatic scan TV+Radio Explanations of some search settings (continued): DVB-T/C/S If several networks are available, you can decide For automatic scan TV+Radio, a search wizard will be started that Network which network you want to receive your channels searches for new stations which are not yet stored.

  • Page 82: Manual Scan Tv / Radio

    Reference 55-85 User manual System settings Stations Search for/update stations – handling of new and no longer Manual Scan TV / Radio found stations Here, you can enter all the settings available for a station. However, The number of new TV stations found is displayed after the automatic this requires detailed knowledge.
  • Page 83 Reference 55-85 User manual System settings Stations Manual search for cable analogue (analogue cable reception): Manual DVB-T/C/S search: Manual search is called. Manual search is called. Cable analogue has been selected as signal source. Manual scan (incl. antenna status) Back Signal source Cable analog DVB-T...

  • Page 84: Station Lists Tv / Radio

    Reference 55-85 User manual System settings Stations Station lists TV / Radio Move block / Change order Stations with LCN cannot be reordered. In this case, Under the menu item Station lists TV or Station lists Radio you the function Move block is hidden. can edit (delete block, move block, restore deleted stations, delete list) various lists, e.g., DVB-T, ASTRA LCN, DVB-C, etc.

  • Page 85: Compose / Edit Personal List

    Reference 55-85 User manual System settings Stations Compose / edit Personal list Adding stations to Personal list The Personal list must be opened to add new Each personal list can contain up to 99 stations. You can compose the stations to it. personal lists to suit your convenience (e.g., topic lists).

  • Page 86: Update Station List Automatically

    Reference 55-85 User manual System settings Stations Update station list automatically At once The station list will be immediately updated. Normally this occurs in the background without interfering Some programme providers offer an automatic update of the sta- further with the TV‘s operation. In exceptional cases, tion lists (Dynamic Channel Management).

  • Page 87: Control

    Reference 55-85 User manual System settings Control Control more ... After confirmation with the OK key you will be offered additional not so frequently used sub items for the In the chapter Control you find settings for the various operating modes current menu item.

  • Page 88: Language

    Reference 55-85 User manual System settings Control Language Specify the language for all menus in the TV set in the language menu. Calling EPG settings The language for the DVB subtitles and the film language can be set HOME: Call Home view. for DVB programmes.

  • Page 89: Parental Lock

    Reference 55-85 User manual System settings Control Parental lock Explanations of setting possibilities in the Parental lock menu: Lock all The TV set is locked immediately the menu is exited. You can select and set various security options to prevent stations All programmes can then only be watched after unauthorised use of the TV set and to protect your children from...

  • Page 90: Energy Efficiency

    Reference 55-85 User manual System settings Control Energy efficiency Quick start mode Determine how energy efficient your TV set shall be. The value for If you enable the Quick Start Mode and you switch on the TV set from the contrast (and thus the brightness of the background lighting) standby, the TV picture can be immediately seen without delay.

  • Page 91: Software Update

    Software update USB stick - requirements USB sticks tested by Loewe and compatible in type and format can It is possible to update the software on your Loewe TV set. be ordered from the Loewe dealer using the article no. 90456.900.
  • Page 92 Reference 55-85 User manual System settings Control Software update via USB storage device New software package found To do this, plug the USB stick with the downloaded software into a New software A new software version was found. A new software version was found. free USB port of the TV set.
  • Page 93 Reference 55-85 User manual System settings Control Manual update via the Internet New software package found If an Internet connection is available, new software can be downloaded New software directly and installed onto the TV set. A new software version was found. A new software version was found.
  • Page 94 Reference 55-85 User manual System settings Control Software update via Antenna Load new software package Updating software A software update via antenna is only available for stations of the The "V1.1.14.0" software is currently being programmed, please wait ... Via antenna Freeview DVB-T platform in the UK and Ireland.
  • Page 95 Reference 55-85 User manual System settings Control Automatic update via the internet At the end of the initial installation, Information on new software updates was selected. This item cannot be called up via the menu, but appears automatically when a new version is found in the search for software. New software package found If the TV set has found a new software version during the check, you will be informed about this via a screen message.

  • Page 96: On-Screen Displays

    Reference 55-85 User manual System settings Control On-screen displays Time and date You can select different settings in this menu which affect the on- The time and date are normally acquired automatically by the TV screen displays. set. If the data is missing or wrong, you can adjust it via the time and date menu.

  • Page 97: Dvb Settings

    Reference 55-85 User manual System settings Control DVB settings You can make general pre-settings for DVB stations. Adjust size of the PIP image HOME: Call Home view. Calling DVB settings Mark System settings, HOME: Call Home view. OK call System settings. Mark System settings, Mark Control, OK call System settings.
  • Page 98 With this, all the settings are activated to make all Mark DR+, Streaming the films on your DR+ archive available to other go to next column. LOEWE TVs using your home network (or vice-versa, e.g. allowing you to use the DR+ archive of other LOEWE TVs). Recording Recording You may set the pre-record and post-record times here.

  • Page 99: Standard Teletext

    Reference 55-85 User manual System settings Control Call DR+ streaming settings Standard Teletext The DR+ settings are called (see previous page). In the Standard Teletext menu you can configure the Teletext. Mark DR+ Streaming, Call Teletext settings go to next column. HOME: Call Home view.

  • Page 100: Hbbtv

    Reference 55-85 User manual System settings Control HbbTV WEB key function Here you can do all settings for the HbbTV mode. You can assign the Web key on the remote control unit a particular function (MediaNet, picture/sound menu, sound mode, etc.). Call HbbTV settings The selected function will then be called directly when the key is pressed.

  • Page 101: Rotate Tv

    Reference 55-85 User manual System settings Control Rotate TV Specifying the switch-off position This is where you specify the position that the TV will take when it is Here you can set the range of rotation for the motorized stand and switched off.

  • Page 102: Hard Disks

    Reference 55-85 User manual System settings Control Hard disks Formatting the hard disk If problems were detected when the hard disk was being tested (see left column), re-formatting may be able to remedy the problem. Checking the hard disk Additionally, you can re-format the hard disk in order to quickly and You should launch a check of the integrated hard disk once a year or easily delete all the data stored on it.

  • Page 103: Export Log File

    IP address. All data will be deleted from our servers not later than 4 weeks. to the Loewe server and stored as soon as a problem More information can be found in our privacy policy. situation has occurred.

  • Page 104: Multimedia / Network

    Internet capabilities, e.g. computer, smartphone, etc. In this respect, Loewe guarantees that this data will not be personally exploited in any way. However, a statistical analysis of anonymised data records may be carried out.
  • Page 105 Reference 55-85 User manual System settings Multimedia / Network Configuration of the built-in LAN adaptor Configuration of the built-in WLAN bridge adaptor As network operation was selected On, wired only. As network operation was selected On, wireless only. The TV set now searches for wireless routers. IP configuration configuration Access point...
  • Page 106 Reference 55-85 User manual System settings Multimedia / Network Explanation of the settings in the network status: Proxy server In the proxy server wizard you make arrangements for your TV set for Network shows the current type of connection (wireless or a connection with a home network with proxy server.

  • Page 107: Multimedia Settings

    Reference 55-85 User manual System settings Multimedia / Network Multimedia settings Renderer Here you can allow external devices to access your TV set (renderer) Under this menu item you find further settings for Audio, Video and via app to render (play back) contents there. Photo.

  • Page 108: Mobile Recording

    In the last step it is checked whether the email account is accessible If a record command is sent by the Loewe Assist Smart App, this with the set data. command reaches a connecting server.

  • Page 109: Bluetooth

    Reference 55-85 User manual System settings Multimedia / Network Bluetooth Coupling starting from the Bluetooth device Enable the Bluetooth function of your audio source. With the Bluetooth functionality, you can use a wireless connection If necessary, get help from the instruction manual of between your TV set and a Bluetooth-enabled audio source, such your audio source.
  • Page 110 Reference 55-85 User manual System settings Multimedia / Network Bluetooth Keyboard Key assignment To use a Bluetooth keyboard as an input device, it must be coupled Remote control Keyboard to the TV set. Sound On/Off key ----- Bluetooth function menu opened. Select required device.

  • Page 111: Connections

    Reference 55-85 User manual System settings Connections Connections Settings for the connection of external appliances are made in this menu. The menu item Connections is not available while a timer record- ing is active. Calling the connections menu HOME: Call Home view. Mark System settings, OK call System settings.

  • Page 112: Sound Components

    Reference 55-85 User manual System settings Connections Sound components Sound playback via ... Some sound components can only be selected when the respective The sound components wizard helps you to configure the components device is connected to the TV set. that are used to reproduce the TV sound.
  • Page 113 Reference 55-85 User manual System settings Connections Adjusting the speaker system (AUDIO OUT) Subwoofer + ext. front speakers TV loudspeakers as centre speaker Sound playback via ... – Speaker system (AUDIO OUT) loudspeakers Please specify whether you want to use your Sound com- built-in TV speakers as active centre speakers of ponents...
  • Page 114 Reference 55-85 User manual System settings Connections Adjusting the speaker system (DAL) Select the start value of the frequency response of the speakers for the correct setting (e.g., 50Hz for t h e s p e c i f i c a t i o n “ Fre q u e n c y re s p o n s e Sound playback via ...
  • Page 115 Reference 55-85 User manual System settings Connections Connect Adjust Connect subwoofer Adjust speaker level subwoofer speaker level Please specify here whether you want to You hear a sound from every speaker one after Sound com- Sound com- additionally connect a subwoofer for very ponents ponents another.
  • Page 116 Reference 55-85 User manual System settings Connections Adjusting the HiFi/AV amplifier Sound Sound formats formats Please specify, what kind of sound formats can be processed by your Sound com- HiFi/AV amplifier and mark them by the button ponents Sound playback via ... - HiFi/AV amplifier Stereo (PCM) Stereo (PCM) The sound components wizard permits configuration of different...

  • Page 117: Antenna Dvb

    Reference 55-85 User manual System settings Connections Antenna DVB AV connection settings Here you can make settings for the DVB-T antenna and call the antenna In the AV connection settings menu the parameters for the AV wizard for the DVB-S antenna. connection socket can be adapted.

  • Page 118: Digital Link

    Reference 55-85 User manual System settings Connections Digital Link Gaming mode In the digital link menu you make further setting for comfortably linking For the inputs of your TV set on which game consoles, PC applications external devices to the TV set. or even Karaoke machines are operated, we recommend you to activate the Gaming mode.

  • Page 119: System Settings (Continued)

    Mark Extras, By activating this function you can make your TV set Extras available to other LOEWE TVs that are set up for this for a Streaming go to next column. specified period of time (can be configured using the digital recorder menu item "System settings ->...

  • Page 120: Integrated Features

    Entire TV Set OK call Integrated features Picture/ sound Integrated features Back Network Integrated Hardware Software Upgrade features HDMI Manufacturer LOEWE Serial number Browser Article number 54443W50 Chassis SL320 CI Plus PRODUCTION Media data base Nicam DD/DTS Digital Recorder (DR+)

  • Page 121: Conditional Access Module (Ca Module)

    TV set. They are usually available from Standard. CI Plus slots are in principle downward compatible to the your dealer. Loewe does not provide any guarantee for the functioning previous CI standard, i.e. CA modules and Smart Cards according to of the CA module.
  • Page 122 Reference 55-85 User manual System settings Extras Searching for scrambled stations Station mapping If no search for encrypted stations was performed during initial startup, If two CA modules are both used for the decoding of stations, you this can be done later using the search wizard. decide here which station shall be decoded by which CA module.

  • Page 123: External Devices

    Reference 55-85 User manual External devices Devices to the HDMI connections Playback from the device If the device at HDMI supports the Digital Link HD functionality, the The HDMI connections (High Definition Multimedia Interface) allow TV set will automatically switch to the corresponding HDMI input after the transmission of digital video and audio signals from a player (e.g.

  • Page 124: Digital Link Hd

    Operation of Digital Link HD (HDMI CEC) enabled devices Switching the control via the TV key is only possible when no device The Digital Link HD (HDMI CEC) function allows Loewe television sets key is assigned to the HDMI device you are using.

  • Page 125: Devices On Av

    Switch off all devices before connecting them. The required adapters (Scart or VGA adapter) are available as an accessory from your Loewe dealer (see chapter Accessories). Connect the Scart output of the DVD player to the TV set’s AV socket using the Scart adaptor The AV sockets can process different signal types.
  • Page 126 Reference 55-85 User manual External devices Connecting a DVD recorder to the TV set Connecting PC / Set-top box You can connect a PC and thus use the TV screen as a monitor. A DVD recorder has been selected in the System settings Connections AV connecting settings Device at connec-...

  • Page 127: Connecting The Speaker System (Audio Out)

    Connecting the speaker system (DAL) You can easily connect a speaker system using the AUDIO OUT You can easily connect a Loewe speaker system using the DIGITAL interface of your TV set. AUDIO LINK interface (DAL) of your TV set.

  • Page 128: Connecting Active Loudspeakers

    Center right Connect the HDMI1 socket of the TV using an HDMI cable with the HDMI socket of the ARC-compatible audio (pre) amplifier (e.g.Loewe Subwoofer MediaVision 3D). It is not necessary to log-in the amplifier separately with the TV set.

  • Page 129: Audio Playback From External Devices

    The IR Link function allows the operation of concealed additional to the AV inputs of the TV set. devices made by other manufacturers via the Loewe TV set. The remote control commands are passed from the IR receiver of Connecting an external appliance (e.g. MP3 player)

  • Page 130: Setting The Remote Control

    Setting the remote control Setting the remote control for other Loewe devices You can operate various Loewe devices with the remote control. The device keys STB – VIDEO – AUDIO can be reassigned to operate Using the remote control for the TV mode of the TV set different Loewe devices.

  • Page 131: Teaching The Remote Control

    Reference 55-85 User manual Teaching the remote control Teaching the remote control Teaching individual keys All keys (except the TV, STB, VIDEO and AUDIO device keys as well By means of key code 18 (Set-Top Box data base) your remote control as the V+/- keys ) can be taught for the operation of units Assist may be taught for your Set-Top Box (e.g., decoder, external cable...
  • Page 132 Reference 55-85 User manual Teaching the remote control Deleting individual key functions You can delete the taught function of an individual button. Press STB and green key simultaneously for five seconds. The LED above the STB key lights up perma- nently.

  • Page 133: Loewe Apps

    Start the Loewe App. The application will automatically search for compatible TV sets in the home network. A list of Loewe TVs will appear in the home network. The name of the TV set can be defined under System Settings Control more ...

  • Page 134: Smart Assist App

    The application will automatically search for compatible TV sets Add to my favourites: allows you to add the currently in the home network. A list of Loewe TVs will appear in the home selected entry (programme, archive entry, etc.) to your network.

  • Page 135: Troubleshooting

    Reference 55-85 User manual Troubleshooting Problem Possible cause Remedy / Instructions The TV set switches off automatically. The automatic shutdown switches off the Using automatic shutdown is recommended TV set to save energy after 4 hours of for the purposes of energy saving and safety. inactivity as soon as at least one signal input group is set up in the energy efficient mode Home Mode.
  • Page 136 Reference 55-85 User manual Troubleshooting Problem Possible cause Remedy / Instructions Despite video or music file being played back, a) The TV set is set to mute or the volume has a) Increase the volume by pressing the V+ key no sound can be heard.

  • Page 137: Technical Data

    Reference 55 Part number: 54435xxx 54434xxx 54433xxx EU energy efficiency class: see enclosed energy label or under www.loewe.tv/int/my-loewe Screen diagonal: 216 cm / 85 inch 189 cm / 75 inch 140 cm / 55 inch Power consumption On-Mode (max.) (Audio output 1/8 of the maximum value):...

  • Page 138: Signals Via Av (Pc In) / Hdmi

    Reference 55-85 User manual Technical Data Signals via AV (PC IN) / HDMI Signal input groups The following table shows the compatible signals which may be In your TV set the signals are sorted in various signal input groups represented by your TV set using the appropriate adapter at the AV according to their source.

  • Page 139: Accessories

    Adapter Micro-AV / 25cm / Scart (part no. 72150080) set of 3: realised with floor-standing loudspeakers, satellite loudspeakers and The Loewe scart adaptor allows you to extend your TV set by adding a subwoofer. an AV socket to connect, e.g., DVD players or DVD recorders.

  • Page 140: Mounting Options

    Loewe Rack TS Screen Lift Plus Reference 55: 65486B10 Different versions, sizes and colours available to match Loewe TV, sound system and equipment Only in conjunction with appropriate adaptor to be ordered separately. Only in conjunction with VESA Size 400 adapter.

  • Page 141: Vesa Standard

    On the rear wall of the TV set, there are four points of screw connections to receive the VESA adapter bolts. Mounting a Loewe flat screen TV set to a holder according to the VESA standard necessarily requires the use of Loewe VESA adaptor bolts.

  • Page 142: Environment

    Dispose of your batteries at no charge in the the Free Software Foundation. collection containers which are set up for this pur- The publication of this programme by Loewe is carried out WITHOUT pose in retail stores. ANY GUARANTEE OR SUPPORT, particularly without an implicit guarantee concerning MARKET MATURITY or the USABILITY FOR A SPECIFIC PURPOSE.

  • Page 143: Miscellaneous

    TV set. It is possible to remove the front screen of your TV set and to clean it. You can remove and clean the front screen yourself. Loewe accepts no liability for any damage caused by disassembly/assembly and cleaning of the front screen or improper handling.
  • Page 144 Reference 55-85 User manual Miscellaneous Assembly of the screen (Reference 55) Remove the front panel (C) and insert the two centre mounting bolts into the two openings. At the left and right of the screen there are three fixing points into Subsequently, the two sides of the front panel are pressed down from which the screen must be fit.
  • Page 145 Reference 55-85 User manual Miscellaneous Disassembly and cleaning of the screen (Reference 75/85) After removing the front panel (B), remove the four screws (D) M4x6 / TX20 on the front of TV set, at the marked points. Prior to the disassembly of the screen, switch the TV set off with the mains switch and pull out the mains plug from the socket.
  • Page 146 Reference 55-85 User manual Miscellaneous Assembly of the screen (Reference 75/85) Screw in the four fastening screws (D) M4x20 / TX20 at the marked points on the front of the TV set. Hand tighten the screws. At the left and right of the screen there are three fixing points into which the screen must be fit.

  • Page 147: Ca Module Error Codes

    Reference 55-85 User manual Miscellaneous CA module error codes In case of problems with a CA module, error codes are displayed by TV set. The following table from the CI specification shows the meaning of the error codes. Error Error condition Error detec- Host action CI Plus Module action...

  • Page 148: Glossary

    Digital Link HD: System for controlling units via the HDMI connection Automatic time control: Also called Accurate Recording. Similar to of the Loewe TV set when they have been set up in a covered position. VPS for analogue stations the automatic time control monitors the start and end times of programmes from DVB stations.
  • Page 149 Dynamic contrast ratio: Here the light intensity of the display is Loewe TV set. The infrared sensor required for this is available as an ac- adapted in case of a high black content in the picture. The so-called cessory and can be connected to the IR-Link connection of the TV set.
  • Page 150 Reference 55-85 User manual Glossary Page Catching: For teletext, refers to marking and calling a page Terrestrial: In data transmission a wireless transmission that does not use satellites as intermediate station is referred to as terrestrial. number. TFT: Thin Film Transistor. One widely distributed application is control PAL: European colour standard, stands for phase alternation line.

  • Page 151: Ec Declaration Of Conformity

    Reference 55-85 User manual EC Declaration of Conformity Dieses Gerät entspricht den grundlegenden Anforderungen und den weiteren entsprechenden Vorgaben der Richtlinie 2014/53/EU. In Frankreich und Italien ist die Nutzung nur in Innenräumen zulässig. Dette udstyr er i overensstemmelse med de væsentlige krav og andre relevante bestemmelser i Direktiv 2014/53/EU. I Frankrig og Italien er det kun tilladt at anvende det indendørs.

  • Page 152: Index

    Reference 55-85 User manual Index 3D ......................75 Cable fixing ..................12 3D function ..................76 Camcorder ..................123 CA modul ..................121 Change title of an archive recording ..........48 Changing the station list ..............33 Access code ..................89 Character table ................18 Adding stations to personal list ............
  • Page 153 Reference 55-85 User manual Index DR+ archive ..................47 DR+ Streaming ..............51, 74, 119 Image+ Active ................74, 75 Notify started „Follow me“ recording ........99 Initial installation wizard ..............20 DR+ Streaming settings ..............98 Installing the TV set ................. 12 Also use other archives ...............
  • Page 154 Reference 55-85 User manual Index Renderer ...................74, 107 Repeat initial installation ............20, 74, 119 One touch recording ............... 45 Reset to factory settings ..........74, 119, 120 On/Off button ................9, 15 Restore stations ................84 On-screen displays ..............74, 96 Rotate TV ..................
  • Page 155 Reference 55-85 User manual Index Station search ................. 68 Status display .................. 35 Value-added service ..............8, 42 STB key ...................130 VBD+ ....................75 Stop recording early ............... 46 VESA standard ................141 Subtitle ................. 46, 63, 97, 98 Video ..................32, 57 Supply voltage 5V ................117 VIDEO key ..................130 Surround Mode ................74...

  • Page 156: Service

    Fax +351 - 21 940 00 78 Tel +972 - 3 - 6091100 EET Europarts E-mail: geral.loewe@mayro.pt Fax +972 - 3 - 6092200 Loewe Denmark E-mail: info@loewe.co.il Bregnerødvej 133 D 3460 Birkerød, Denmark Tel +45 - 82 19 19 E-mail: info@eeteuroparts.dk © by Loewe Technologies 01.09.15...

  • Page 157: Code Page

    Reference 55-85 User manual Code page CONDOR 164, 226 LORENZEN 161, 162, 163, 164, 165, 186 CONNEXIONS 047, 096, 226, 231 GENIX LORRAINE BSAT 166, 169 CONRAD 006, 010, 164, 169, 226, 230 GENERAL-INSTRUMENTS LUPUS AEGIR CONTEC 054, 135, 169 GIUCAR RECORD LUXOR 006, 010, 021, 088, 097,...
  • Page 158 Reference 55-85 User manual Code page OPTIMA SATMASTER 191, 205, 206, 211 OPTUS SATPARTNER 017, 079, 094, 133, 179, THORENS ORBIT 025, 194 180, 193, 201 THORN ORBITECH 006, 017, 103, 169, 181, 224 SATSTATION THORN-FERGUSON 023, 048, 067 ORIGO 126, 221 SAVA 077, 108, 161, 164, 171,...

  • Page 159: Notes

    Reference 55-85 User manual Notes...
  • Page 160 Reference 55-85 User manual Notes...

This manual is also suitable for:

Reference 75Reference 55

Table of Contents
